Sunroof / Moonroof Module: Service and Repair
SUNROOF UNIT REMOVAL/INSTALLATION1. Disconnect the negative battery cable.
2. Remove the headliner.
3. Remove the glass panel.

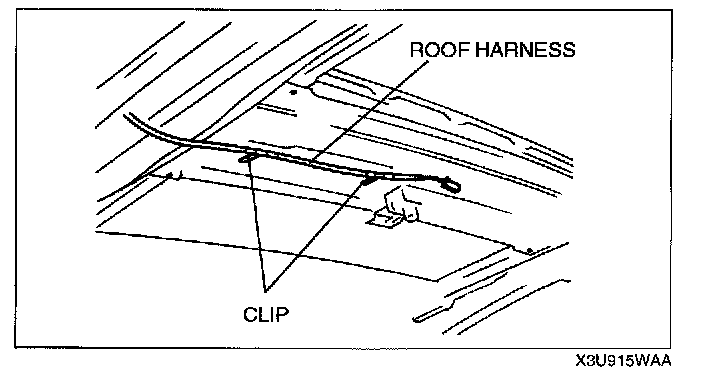

4. Disconnect the front and rear drain hose from the sunroof frame.
5. Remove the roof harness from the sunroof frame.

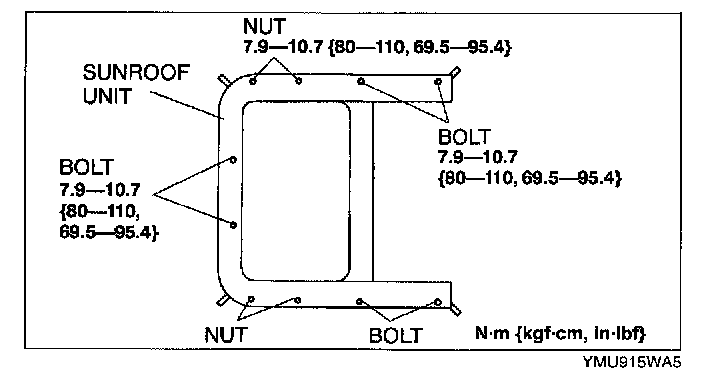

6. Remove the bolts and nuts, and then remove the sunroof unit.
7. Install in the reverse order of removal.
8. Adjust the glass panel.
SUNROOF UNIT DISASSEMBLY/ASSEMBLY
1. Disconnect the negative battery cable.
2. Remove the deflector.
3. Remove the glass panel.

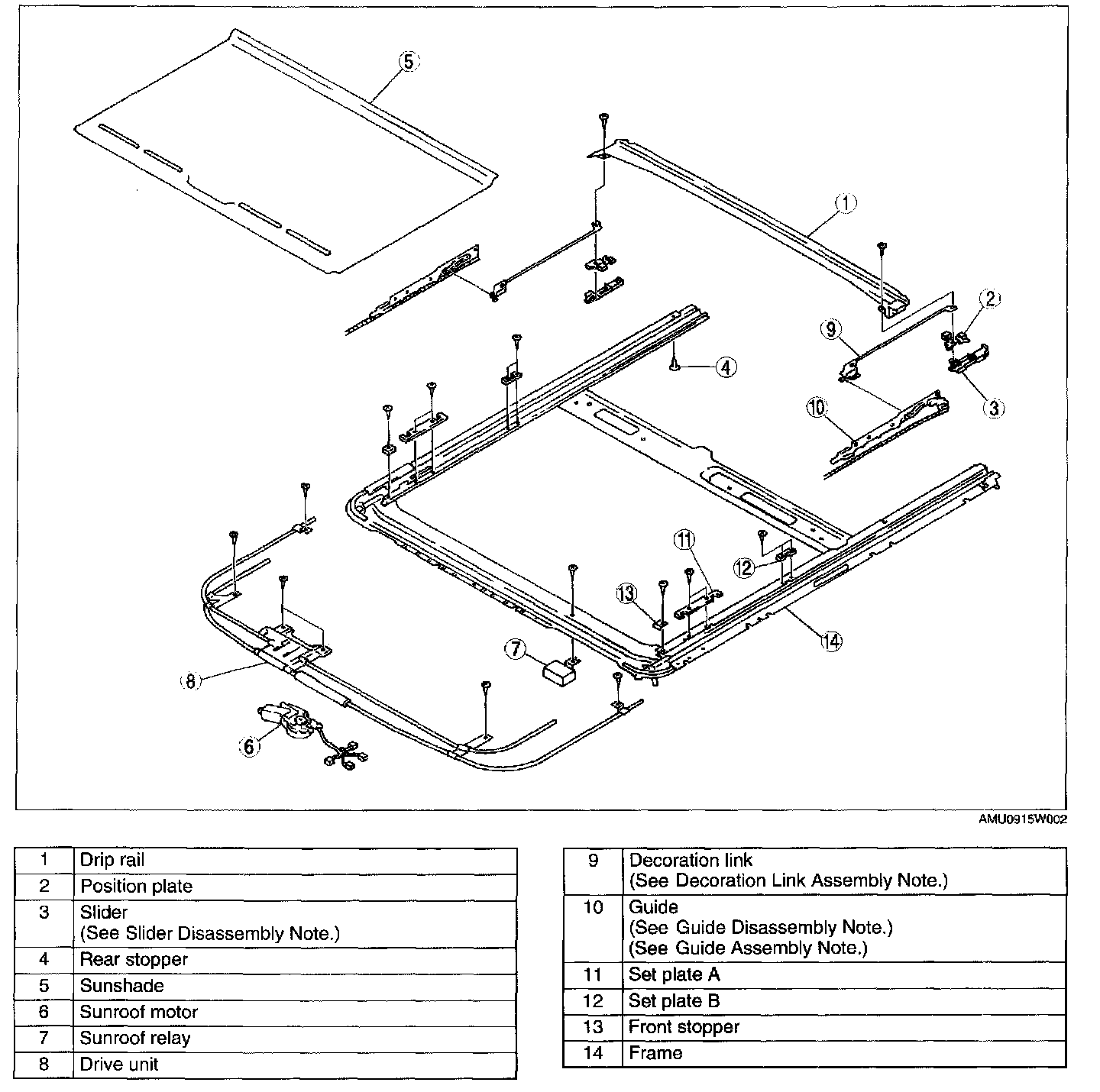

4. Disassemble in the order indicated in the table.
5. Assemble in the reverse order of disassembly.

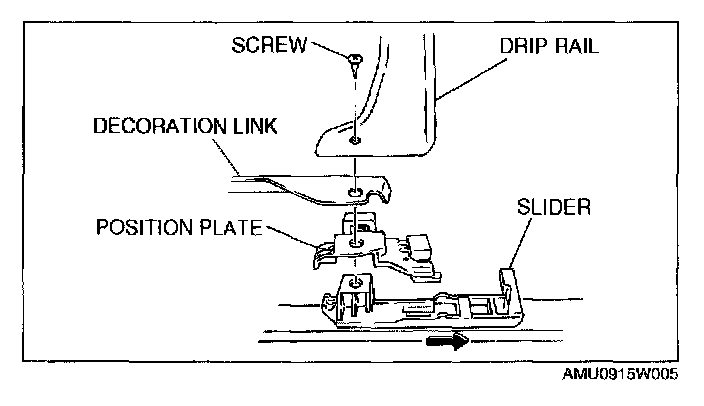

Slider Disassembly Note
1. Remove the screw.
2. Slide the slider rearward, and remove it from the sunroof frame.

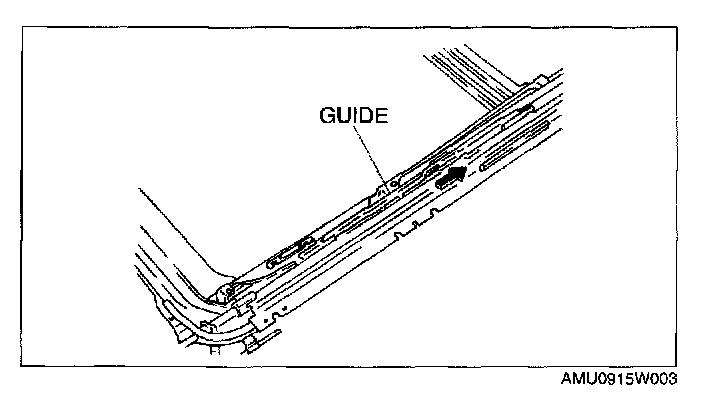

Guide Disassembly Note
1. Slide the guide rearward, and remove it from the sunroof frame.

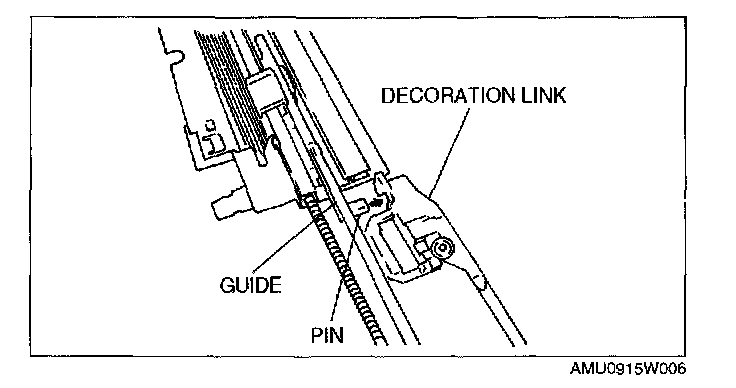

Decoration Link Assembly Note
1. Set the pin in the decoration link.
Guide Assembly Note
1. Move the guide by hand until it comes to the front stopper.
2. Move the guide by hand until center of pin comes between mark A and B.
