Engine Mechanical System Components

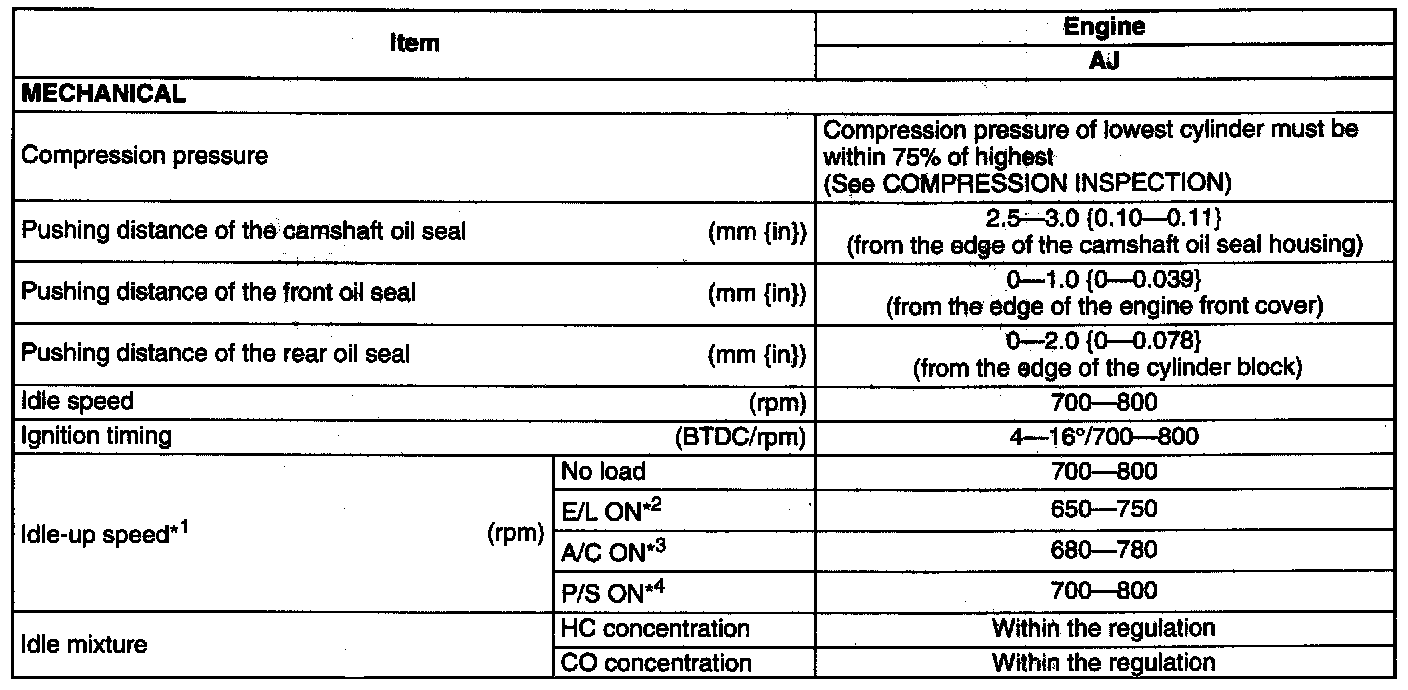

Mechanical:

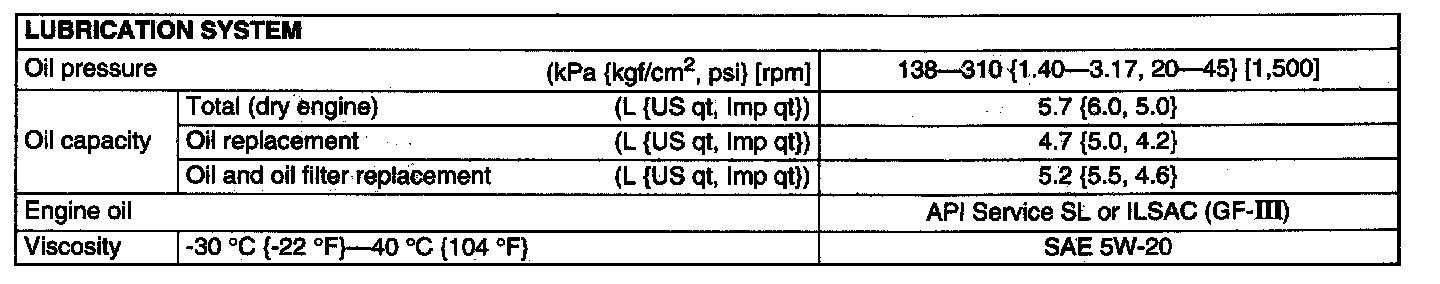

Lubrication System:
*1:
Excludes temporary
idle speed drop just after the loads (E/L, A/C, P/S) are turned on.
*2:
Headlight, fan switch (2nd or higher) and cooling fan are turned on.
*3:
A/C switch and fan switch are turned on.
*4:
Steering wheel fully turned.
