Battery: Testing and Inspection

BATTERY INSPECTION

Battery

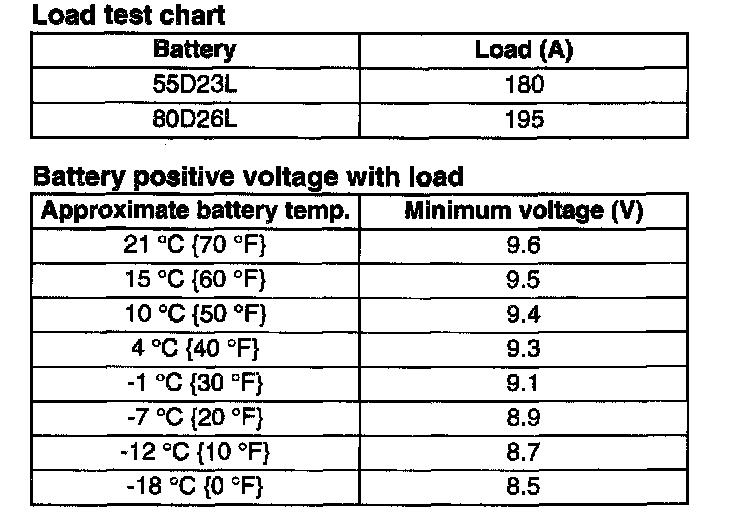

Load Test Chart/Battery Positive Voltage With Load:

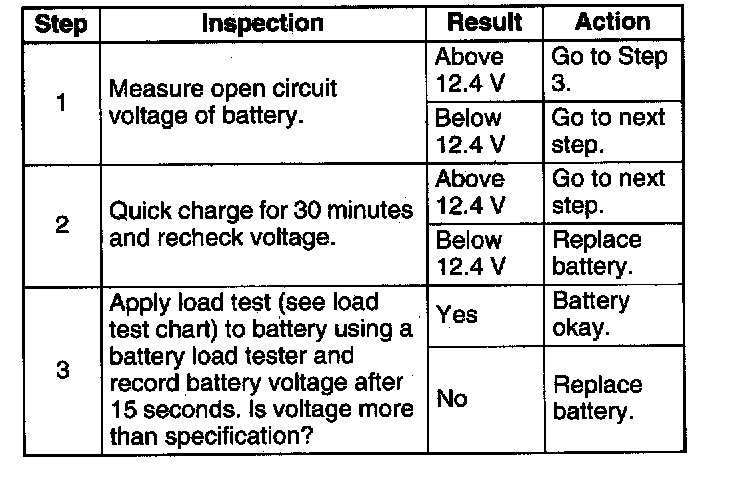

1. Inspect the battery according to the procedure shown.

Back-up Current
1. Verify that the ignition switch is off and that the ignition key has been removed.
2. Disconnect the negative battery cable.

CAUTION: Operating electrical loads while measuring the back-up current can damage the circuit tester.

3. Measure the back-up current between the negative battery terminal and the negative battery cable.
1. If the current exceeds the maximum, remove the fuse in the main fuse block and the fuse block one by one while measuring the back-up current.
2. Inspect and repair harnesses and connectors of the fuse at which the current reduces.

Back-up current: 20 mA max.
