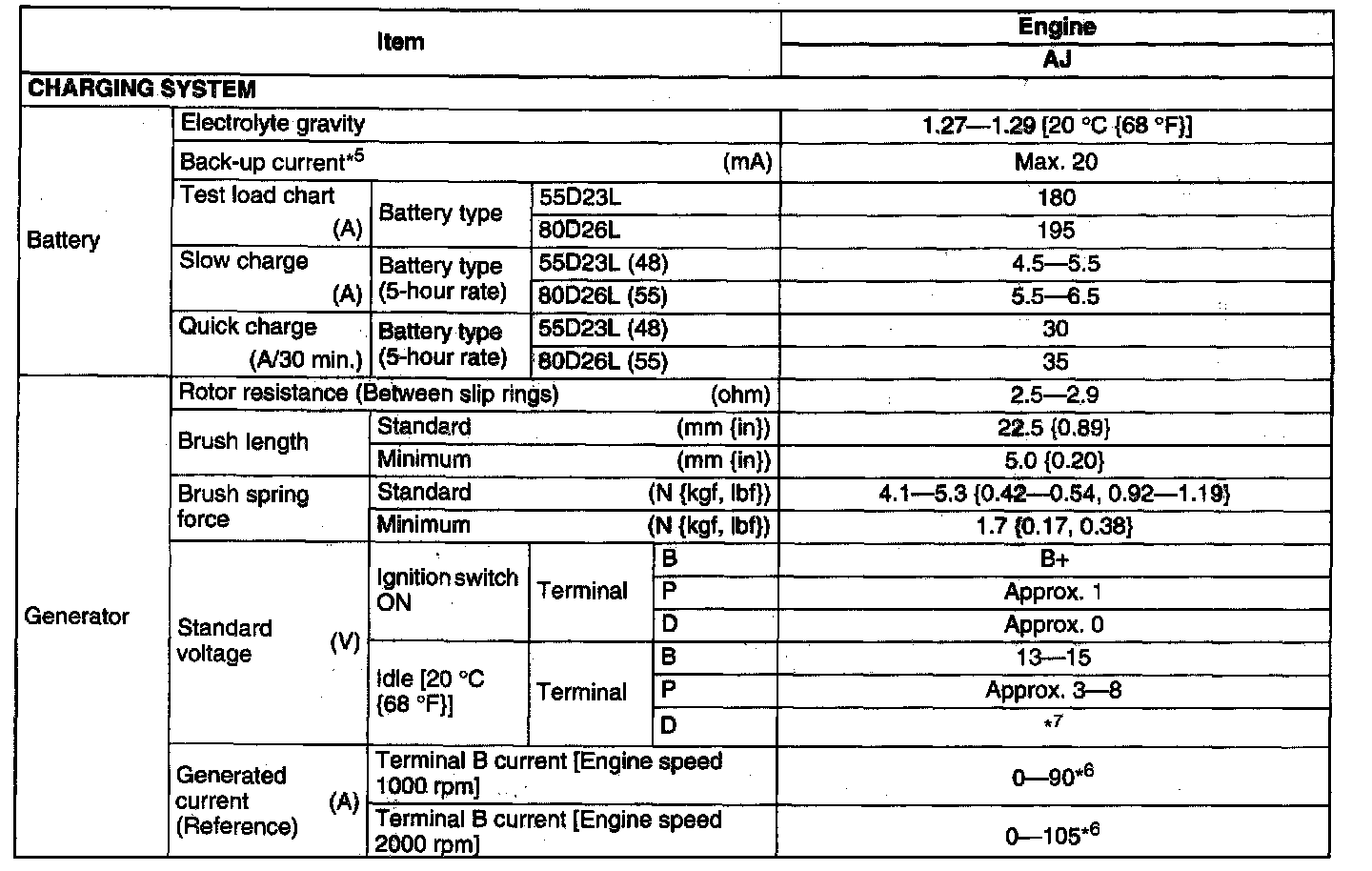

Charging System: Specifications
Charging System:
*5:
Back-up current is the constant flow of current present (for the audio unit, clock, PCM, etc.) when the
ignition switch is off and with the ignition key removed.
*6:
Must not be
0 A.
*7:
Turn the following electrical loads on and verify that the voltage reading increases.
-
Headlights
-
Blower motor
-
Rear window defroster
