Connector Locations
Connector Locations

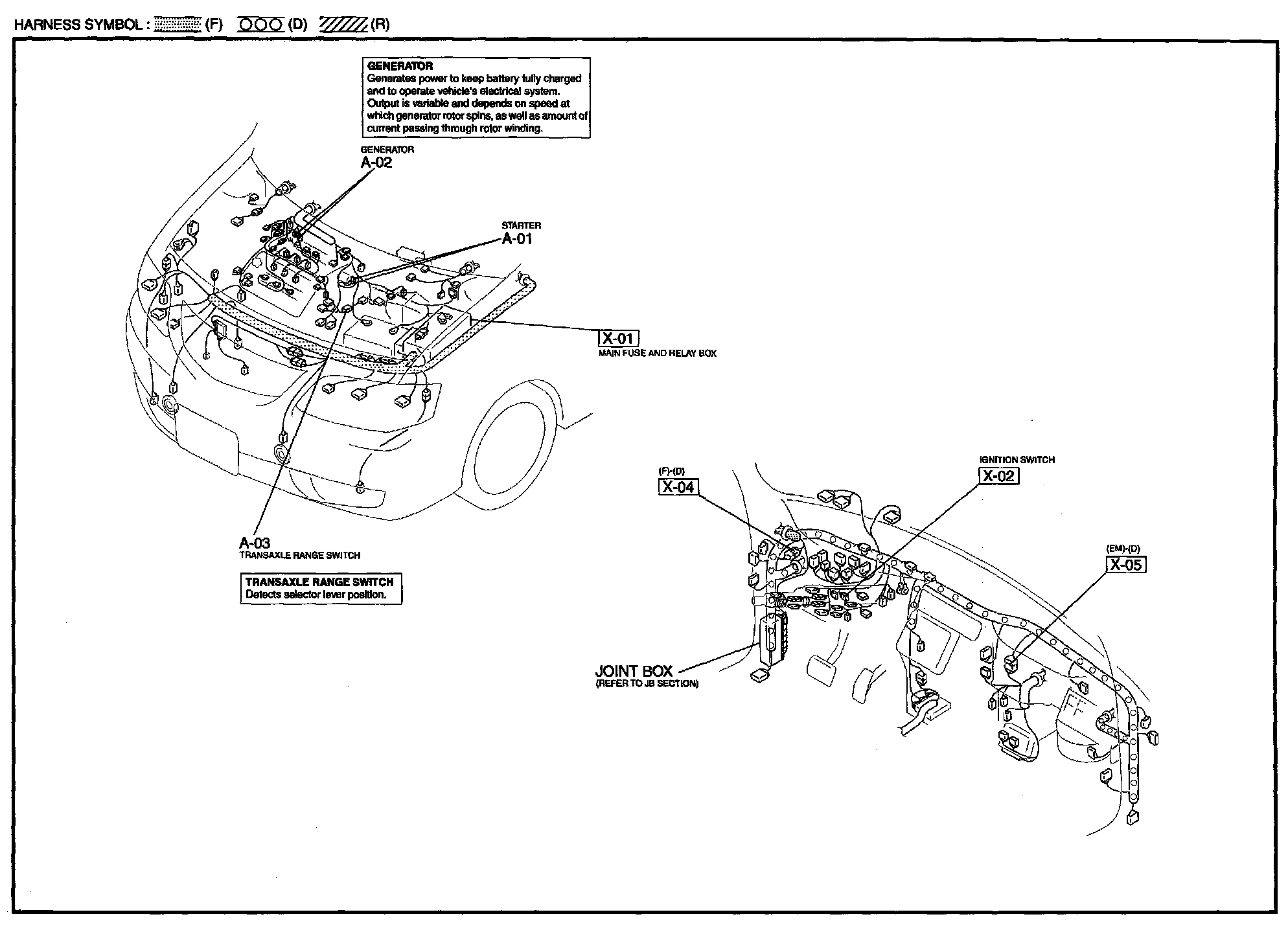

A - Charging System / Starting System Harness / Connector Symbol:
