Transmission Controls - MIL/OD OFF Lamps ON: Overview
05-011/022002 MPV - MIL AND O/D OFF LIGHT ILLUMINATION OR DTC P0757
NOTE:
This bulletin is replacing 05-11\02, it is being revised to correct VIN range and model years. Please discard the old bulletin and update your records.
APPLICABLE MODEL(S)/VINs
All 2002 MPVs up to VIN JM3LW28**20329191
NOTE:
All vehicle's within the above VIN range must have this repair procedure performed
DESCRIPTION
Perform this repair on all vehicles in the VIN range listed above regardless of whether or not a customer is experiencing the symptoms listed below.
Some customers may notice the MIL (Malfunction Indication Light) is on and\or the O\D OFF light is flashing. There are usually no drive ability or automatic transaxle concerns. The concern may be caused by a Transmission Control Module (TCM) software program error. When these lights are illuminated the following conditions may occur:
^ DTC P0757 is stored.
^ When using WDS and "All CMDTC's" is selected, there is a "Fail-TCM?" message.
^ You are unable to retrieve DTC's or communicate with the TCM.
PART(S) INFORMATION

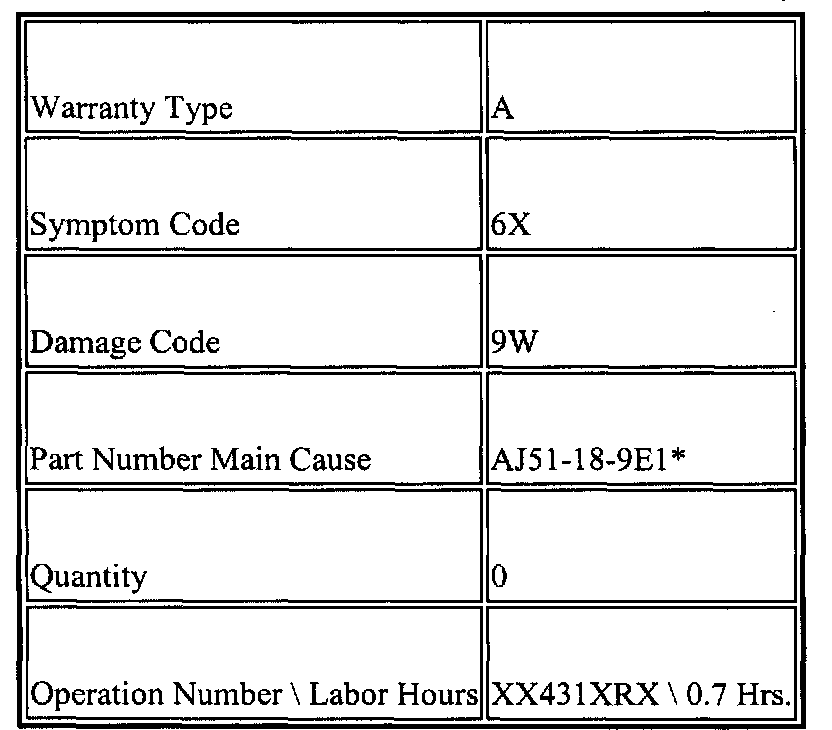

WARRANTY INFORMATION
NOTE:
This information applies to verified customer complaints on vehicles covered under normal warranty. Refer to the SRT microfiche for warranty term information.
Disclaimer
