Input/Turbine Speed Sensor Inspection

On-Vehicle Inspection

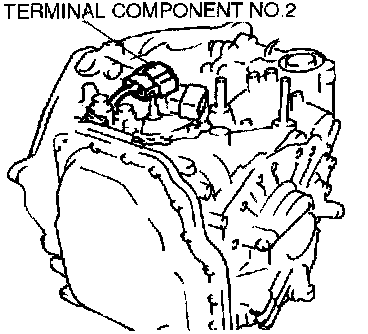

1. Disconnect the terminal component No. 2 connector.

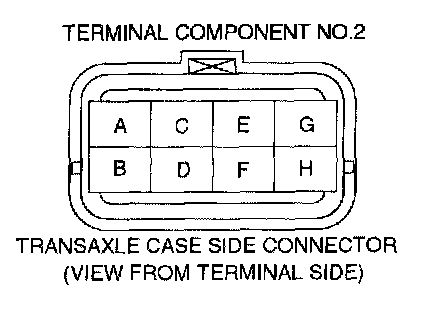

2. Measure resistance between the terminals E and F.
^ If not as specified, inspect the input/turbine speed sensor.
Resistance (ATF temperature: 20°C {68°F}) 513 - 627 ohms
3. Connect the terminal component No. 2 connector.

Inspection of Individual Part
1. Remove the input/turbine speed sensor.

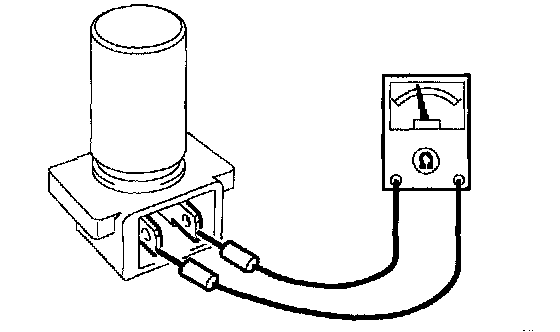

2. Measure resistance between the terminals of the input/turbine speed sensor.
^ If not as specified, replace the input/turbine speed sensor.
^ If it is normal, replace the harness.
Resistance (ATF temperature: 20°C {68°F}) 513 - 627 ohms
3. Install the input/turbine sensor.
