Connector Locations

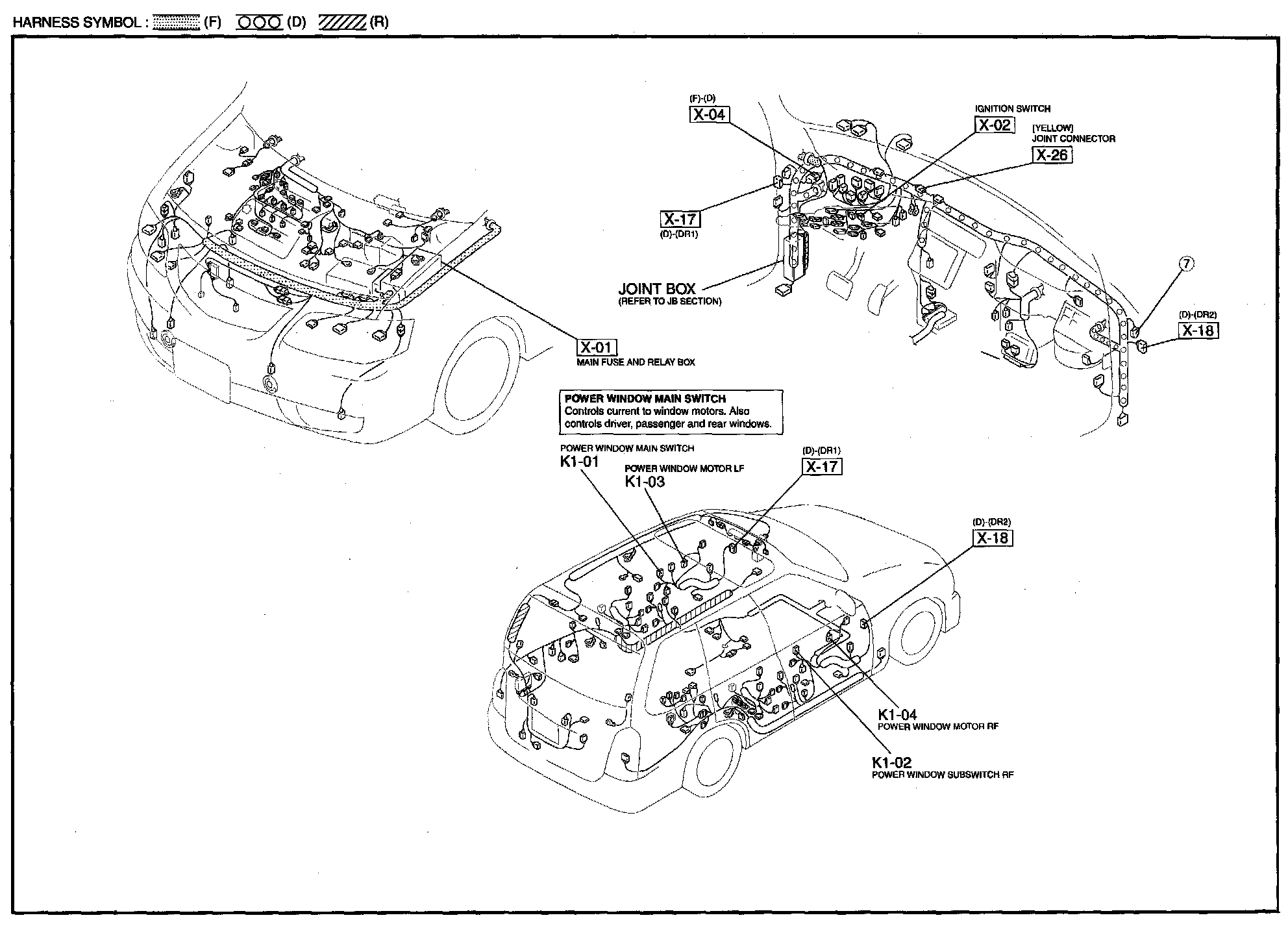

K-1a - Power Window System Harness/Connector Symbols:

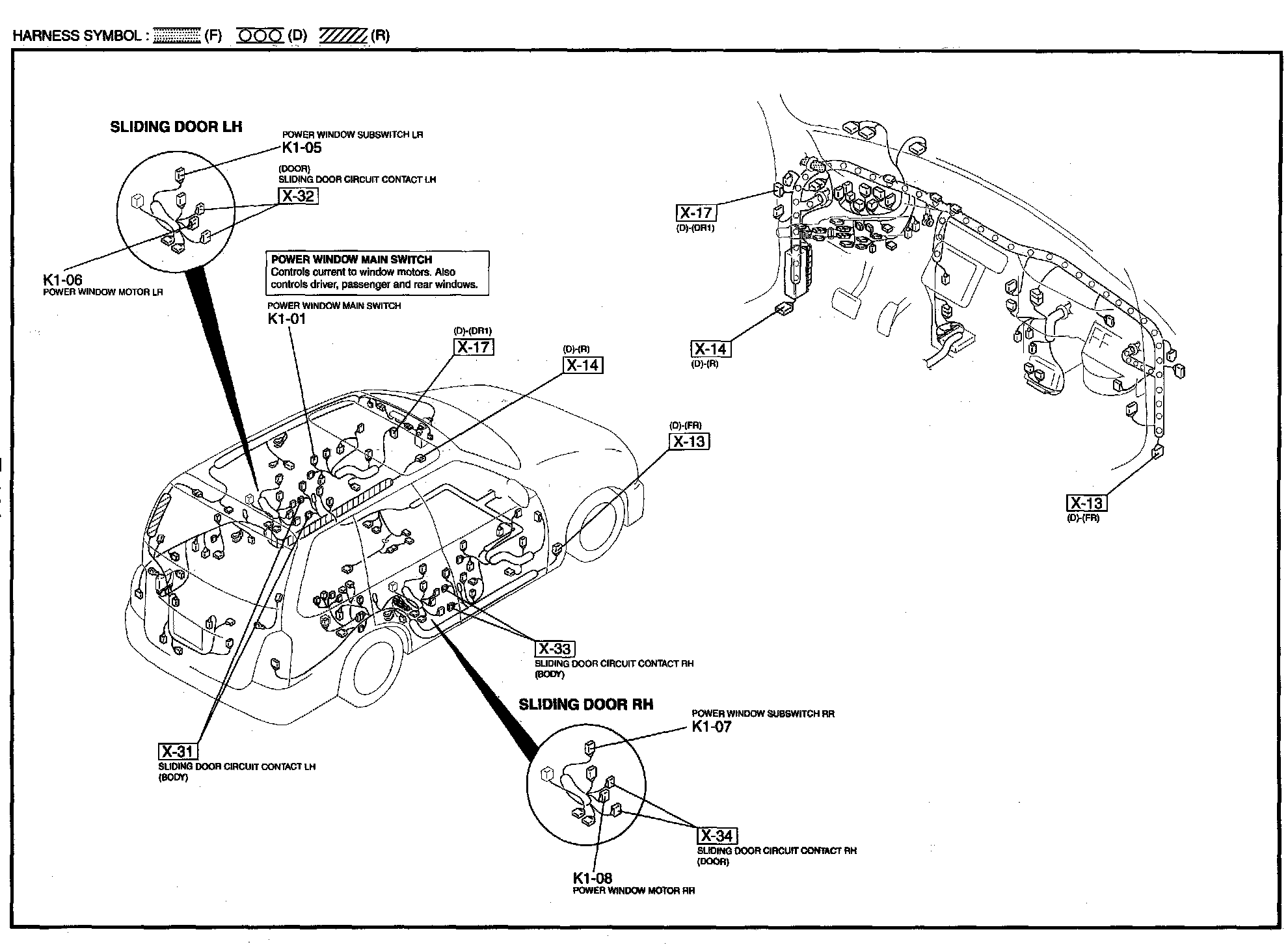

K-1b - Power Window System Harness/Connector Symbols:
