Power Window Main Switch

POWER WINDOW MAIN SWITCH INSPECTION

1. Remove the power window main switch.
2. When inspecting the passenger's side and the rear, verify that the power-cut switch is at UNLOCK.

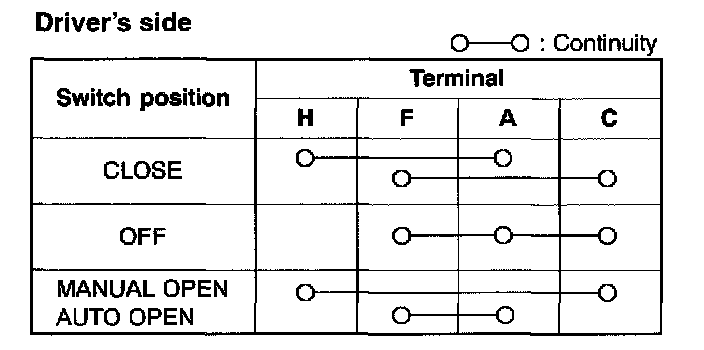

Driver's Side:

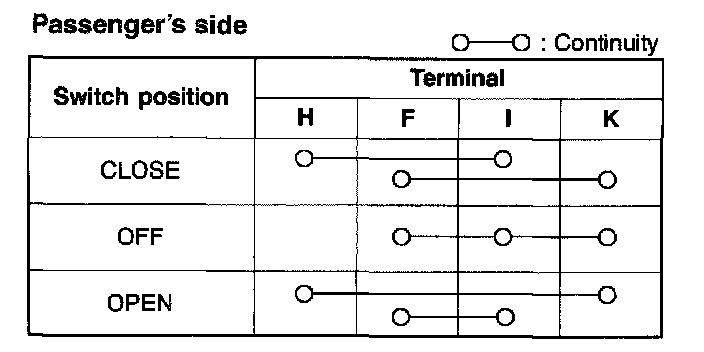

Passenger's Side:

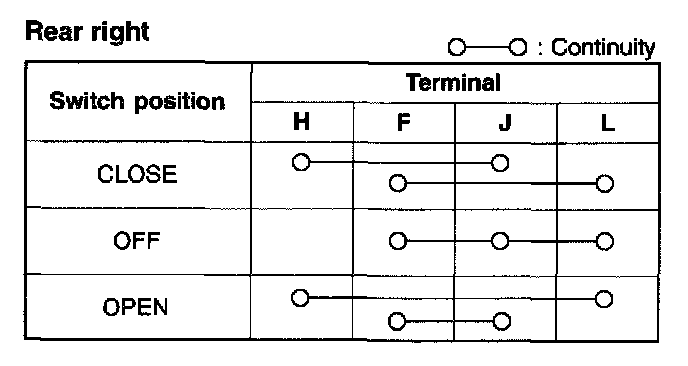

Rear Right:

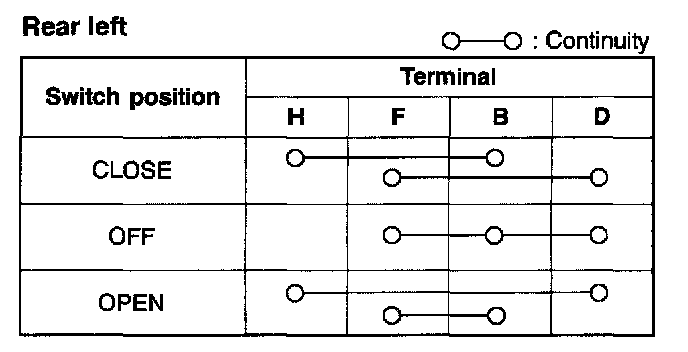

Rear Left:

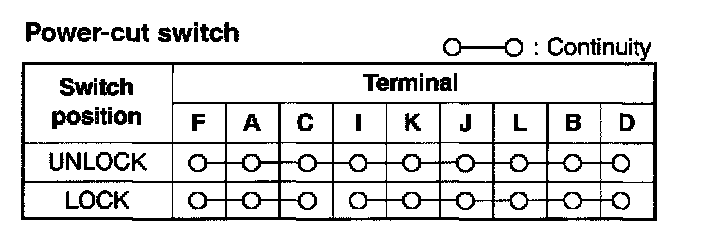

Power-cut Switch:

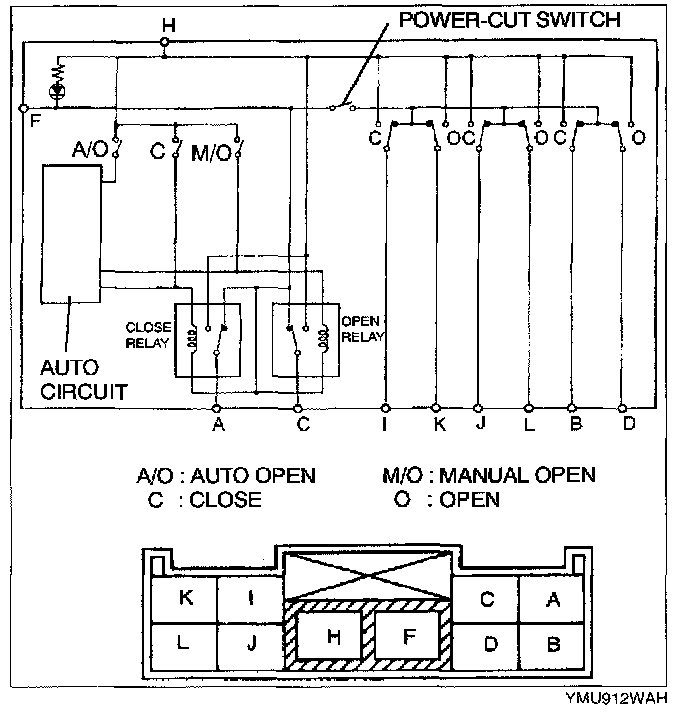

3. Inspect for continuity between the power window main switch terminals using an ohmmeter.
- If not as specified, replace the power window main switch.
