Cruise Control Switch: Service and Repair
Audio Control Switch Removal and InstallationNOTE: The audio control switch and the
cruise control switch use a common connector.
1.
Remove the driver-side air bag module.
2.

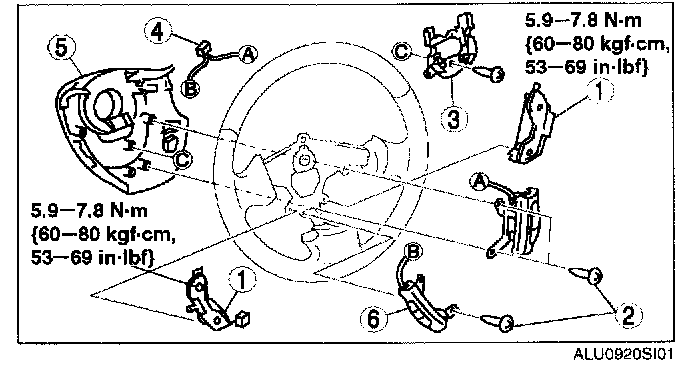

Remove in the order indicated in the table.
1.
Horn bracket
2.
Screw
3.
Bracket
4.
Connector
5.
Cover
6.
Audio control switch/
cruise control switch 3.
Install in the reverse order of removal.
