F-2 - Back-Up Light / Brake Light / High-Mount Brake Light
F-2 - Back-Up Light / Brake Light / High-Mount Brake Light

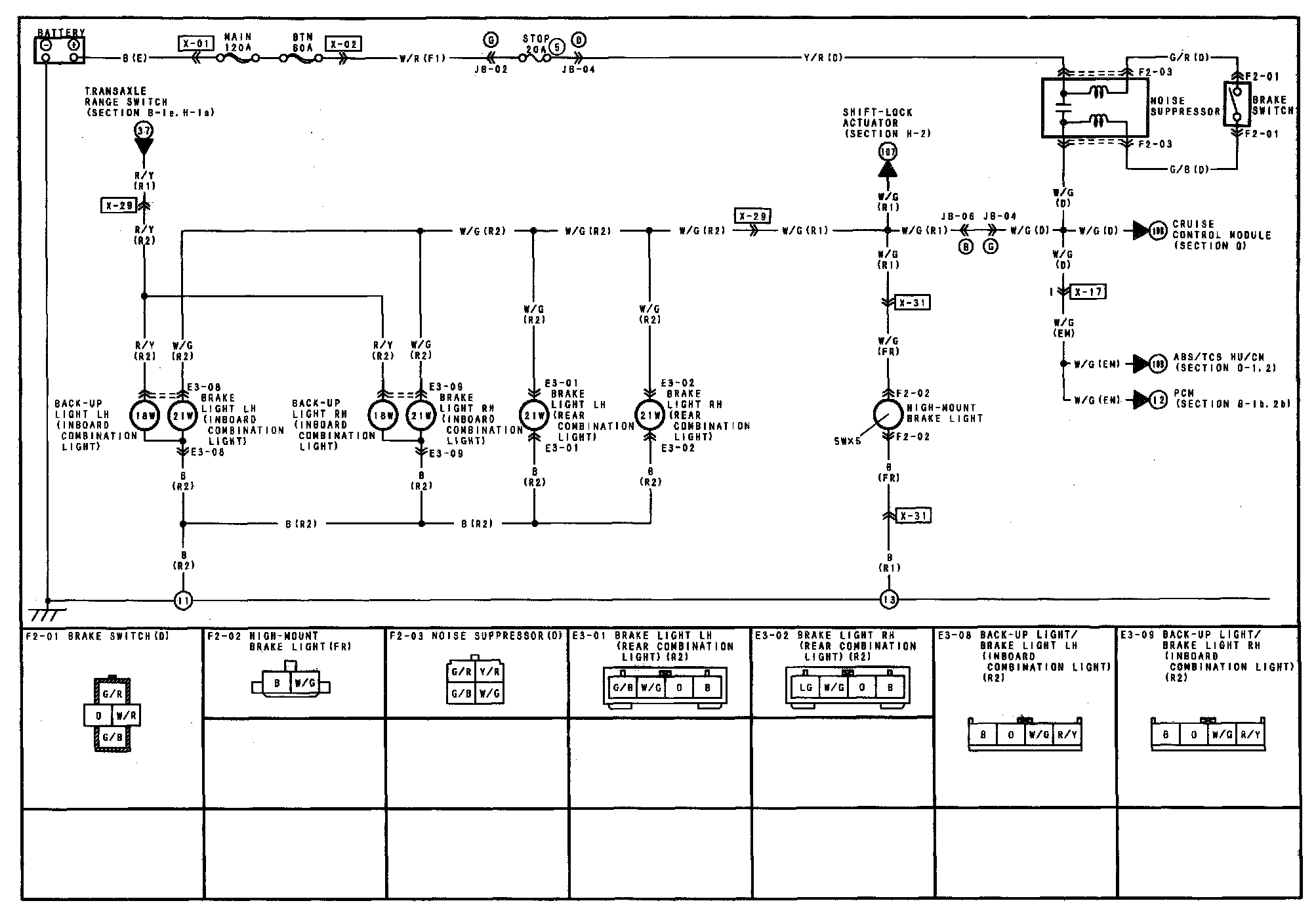

F-2 - Back-up Light / Brake Light / Head-Mount Brake Light Circuit:
