Condenser Fan: Service and Repair

CONDENSER FAN REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the IAC. (KJ only)

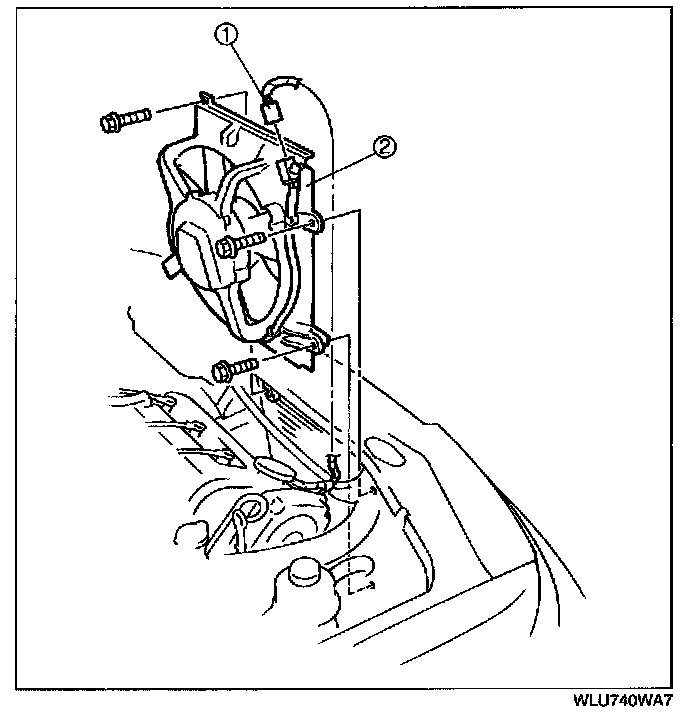

3. Remove in the order as indicated below.




1. Condenser fan connector
2. Condenser fan

4. Install in the reverse order of removal.
