Control Assembly: Service and Repair

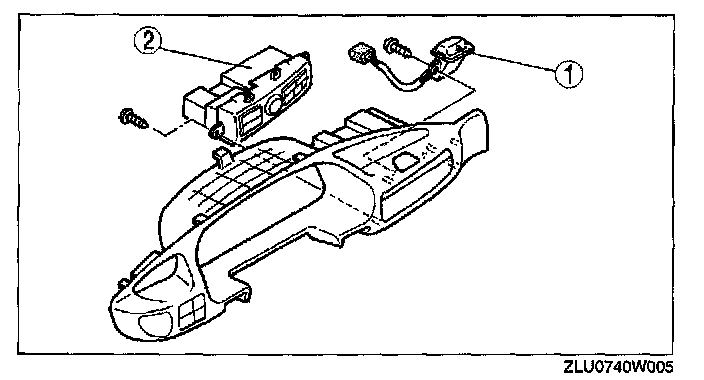

CLIMATE CONTROL COMPONENT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the meter hood.

3. Remove in the order as indicated below.

1. Hazard warning switch
2. Climate control component

4. Install in the reverse order of removal.

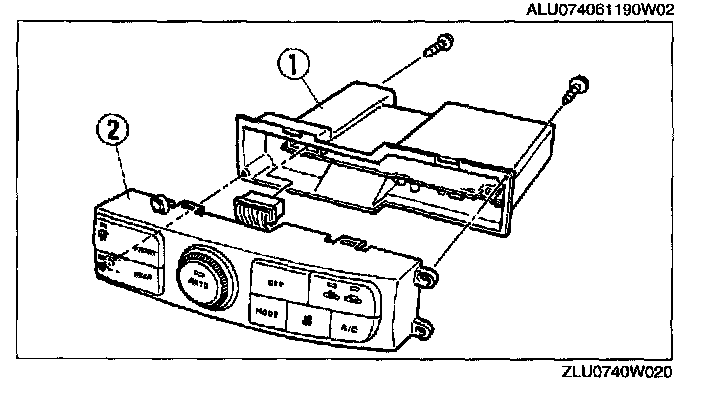

CLIMATE CONTROL COMPONENT DISASSEMBLY/ASSEMBLY

1. Disassemble in the order as indicated below.

1. A/C amplifier
2. Climate control unit

2. Assemble in the reverse order of disassembly.
