Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2002
>>
Millenia P V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Q - Cruise Control System
Q - Cruise Control System

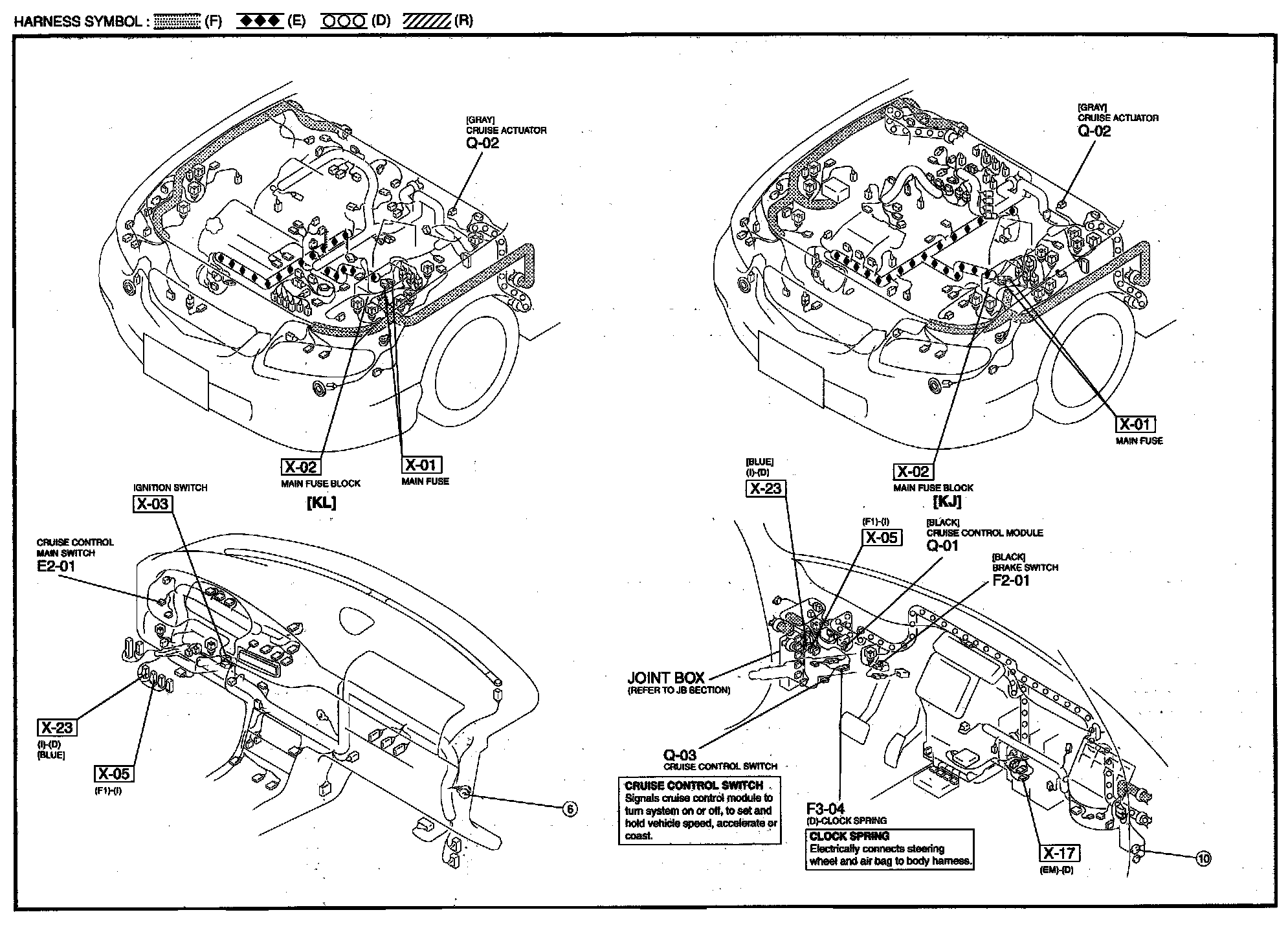

Q - Cruise Control System Harness/Connector Symbols:
