Mode 2 (EGR System Repair Verification Drive Mode)

1. Perform Mode 1 first.
2. Verify all accessory loads (A/C, headlights, blower fan, rear window defroster) are off.

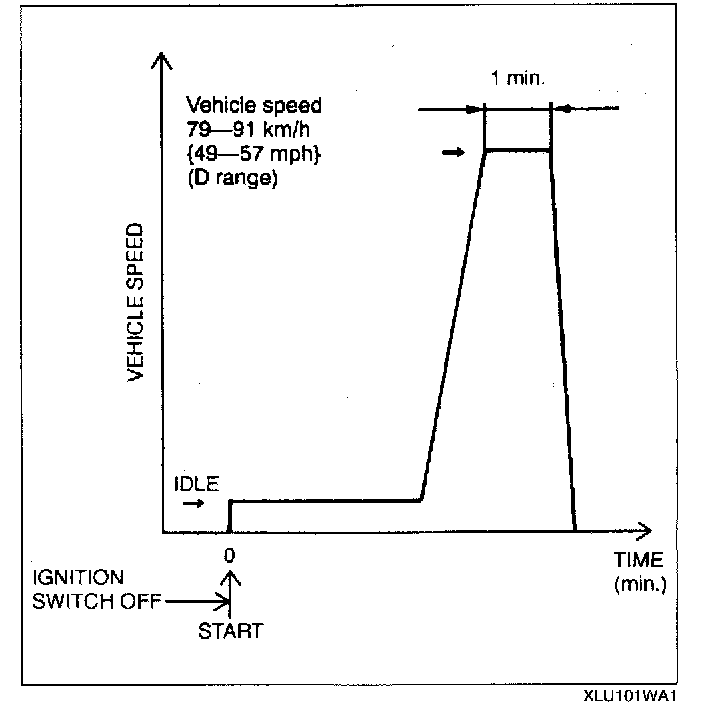

3. Drive the vehicle as shown in the graph.
4. Stop the vehicle and access to ON BOARD SYSTEM READINESS menu to check the Drive Mode completion status.
- If completed, RFC changes from NO to YES.
- If not completed, turn the ignition key to off, then go back to Step 3.

5. Access to DIAGNOSTIC MONITORING TEST RESULTS menu to check the monitor results. If "MEASs" are not within specification, repair has not been completed.
6. Verify no DTCs are available.
