Ignition System Inspection
1.
Inspect condition of connector and
ignition coil (KJ (2.3L Engine)). Inspect condition of connector, and high-tension leads (KL (2.5L Engine)).

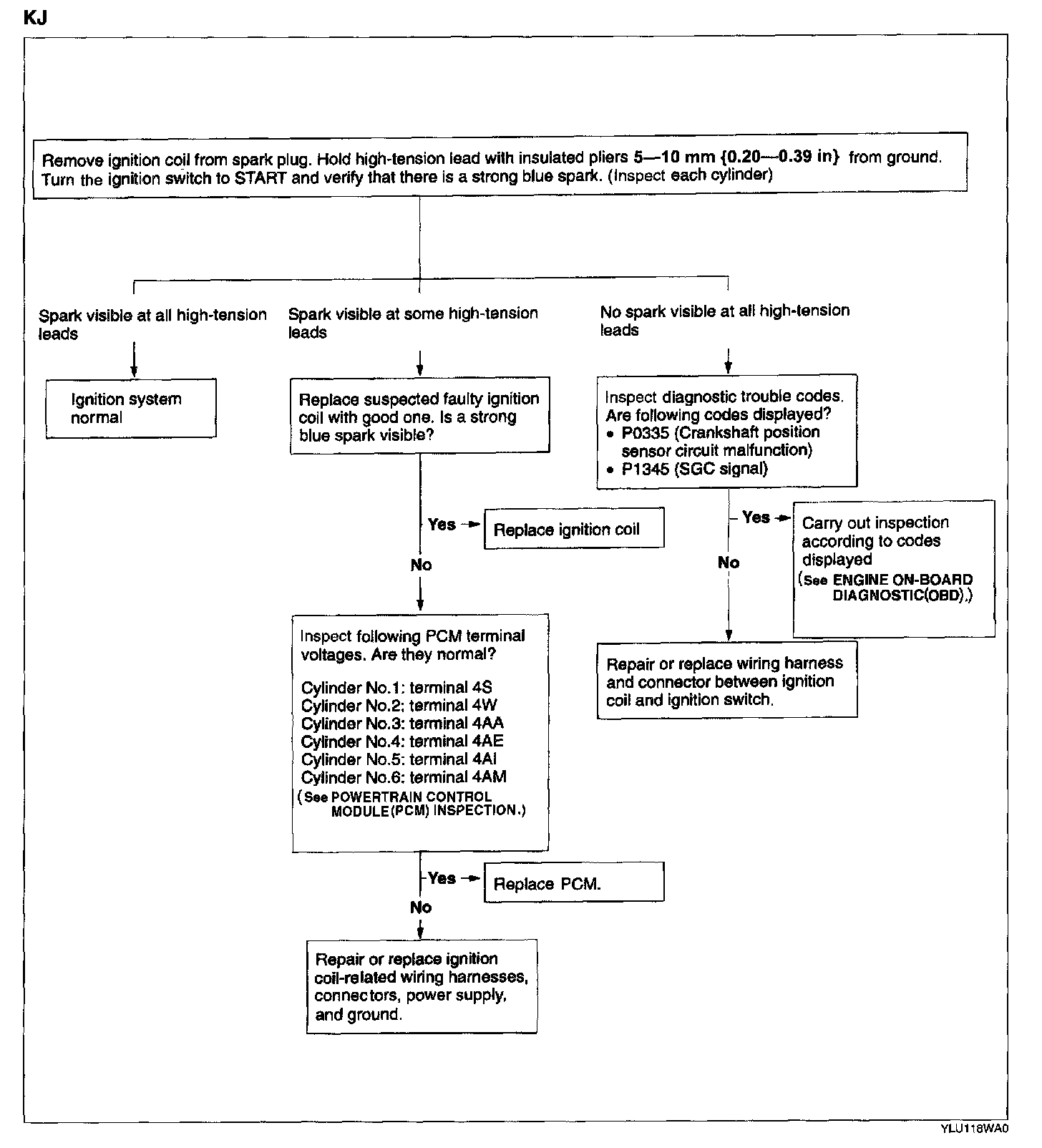

KJ (2.3L Engine):

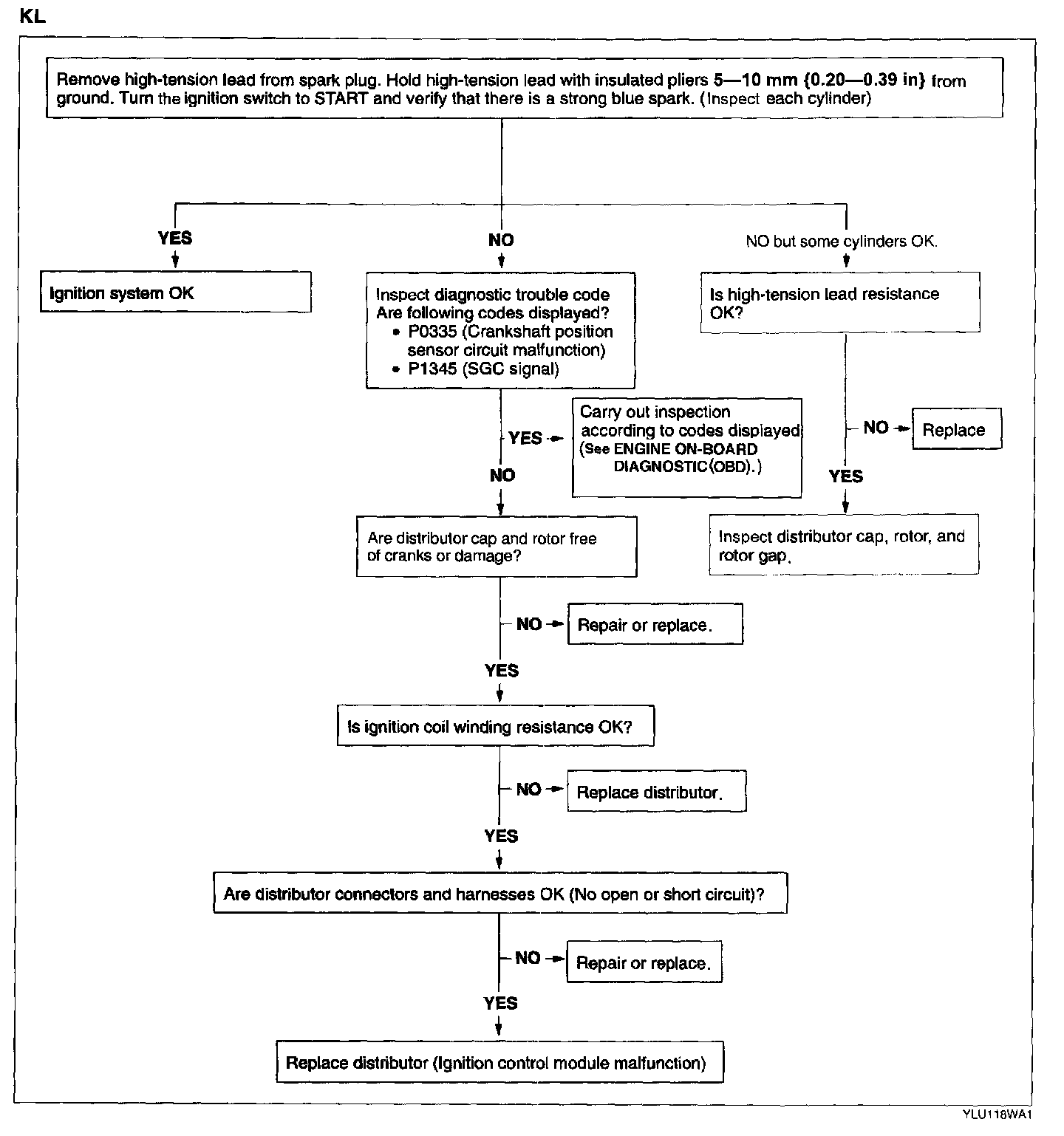

KL (2.5L Engine):
2.
Inspect the
ignition system according to the procedure shown.
WARNING: High voltage in the ignition system can cause strong electrical shock. Avoid direct contact with the vehicle body during the following spark test.
