Cylinder Head
Engine torque Specifications - KLCylinder head bolts
Stage 1 (2 or 3 steps in sequence) 23.1 - 25.9 Nm {17.0 - 19.1 ft-lbf}
Stage 2 (In sequence) 85 - 95 °
Stage 3 (In sequence) 85 - 95 °
Camshaft cap bolts
Step 1 (in sequence) 11.3 - 14.2 Nm {100 - 125 in-lbf}
Step 2 (in sequence) 11.3 - 14.2 Nm {100 - 125 in-lbf}
Cylinder head cover (5 to 6 steps in sequence, then retighten bolts RH No. 5 and 6, LH No. 6 and 7); 6.87 - 9.80 (60.8 - 86.7 in-lbf)

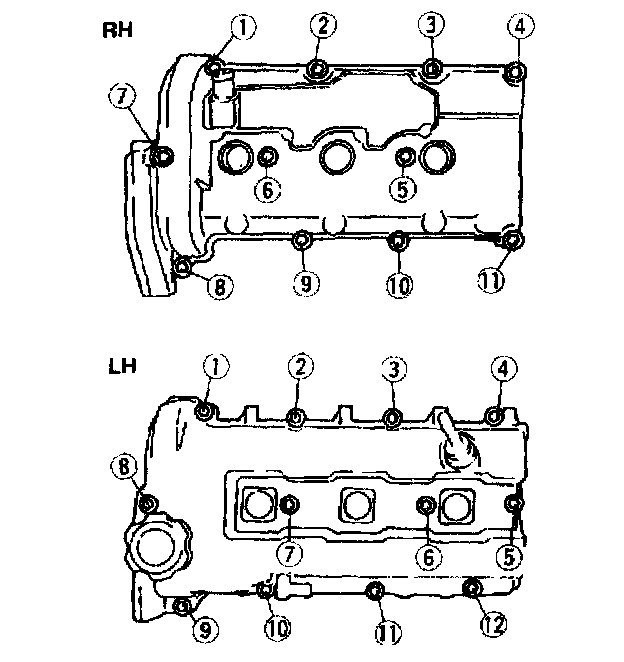

Engine torque tightening sequences - KL
Cylinder head bolts
Camshaft cap bolts
Cylinder head cover
Engine tightening torque exploded views - KL
Cylinder head gasket
Hydraulic Lash Adjuster (HLA)
Engine
Step 1
Step 2
Step 3
