System Specifications

DIMENSIONAL SPECIFICATIONS

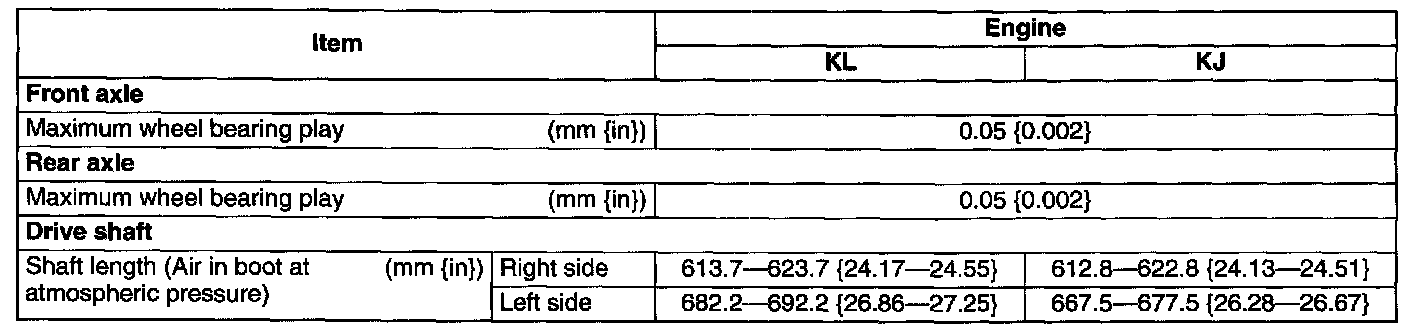

Driveline/Axle Technical Data

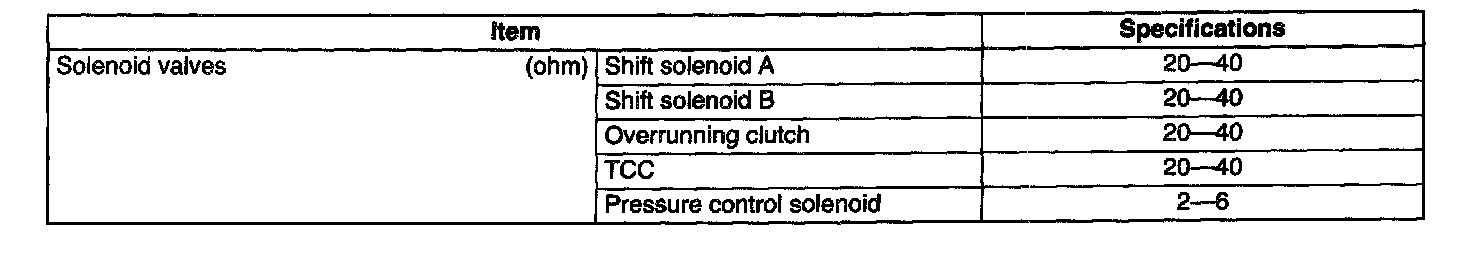

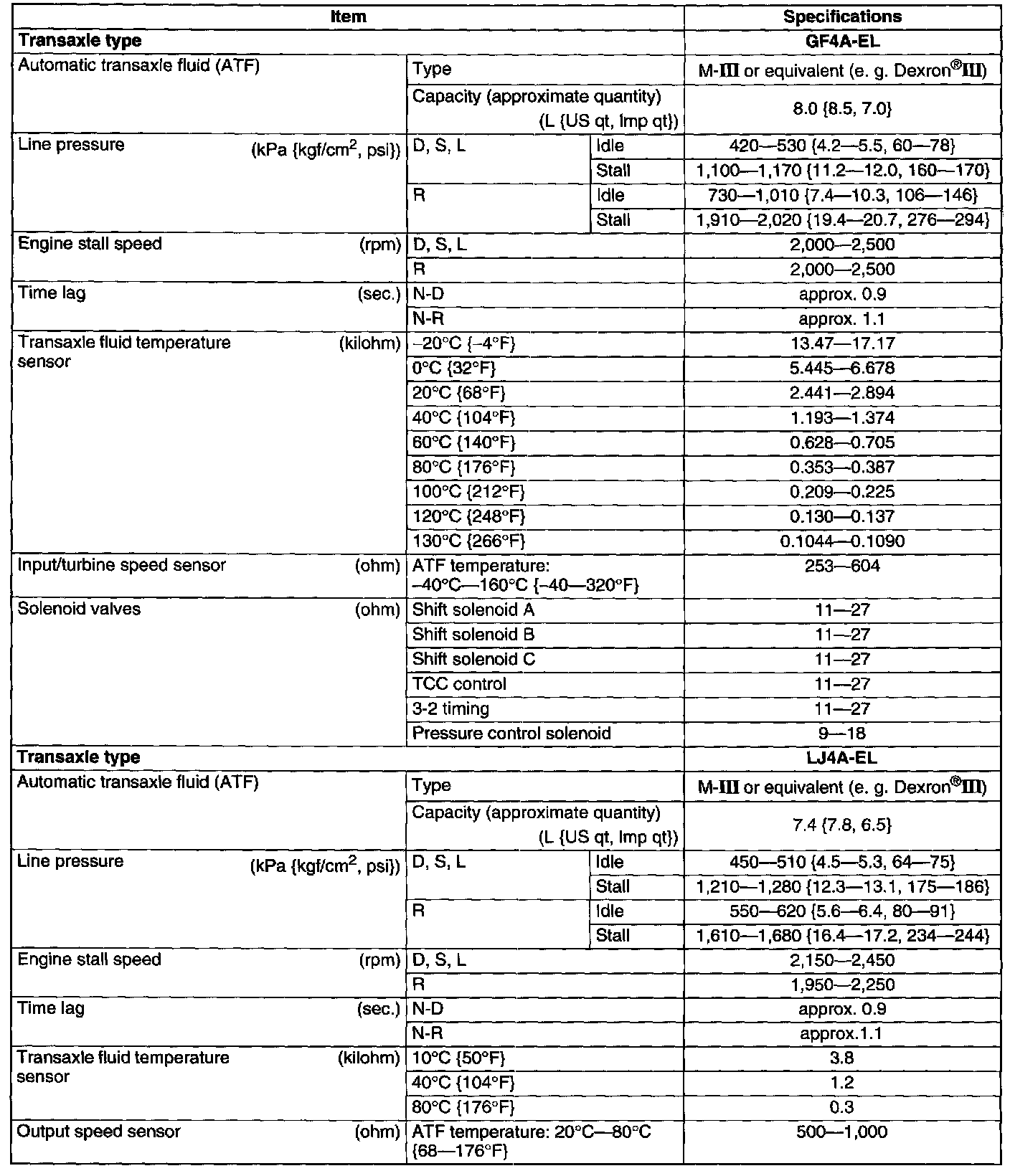

Transmission/Transaxle Technical Data (Part 1 of 2)





Transmission/Transaxle Technical Data (Part 2 of 2)

TIGHTENING SPECIFICATIONS

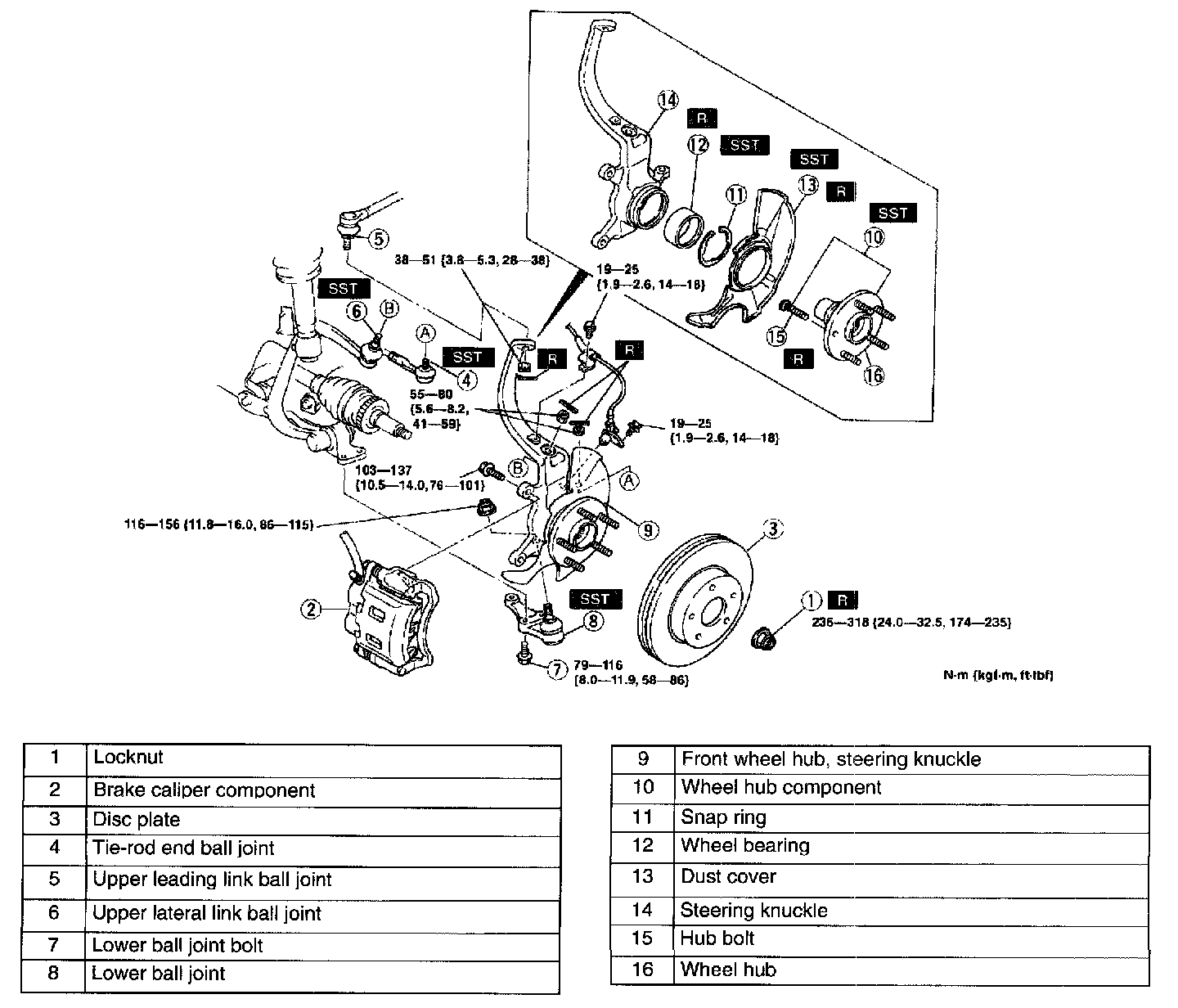

Front Axle

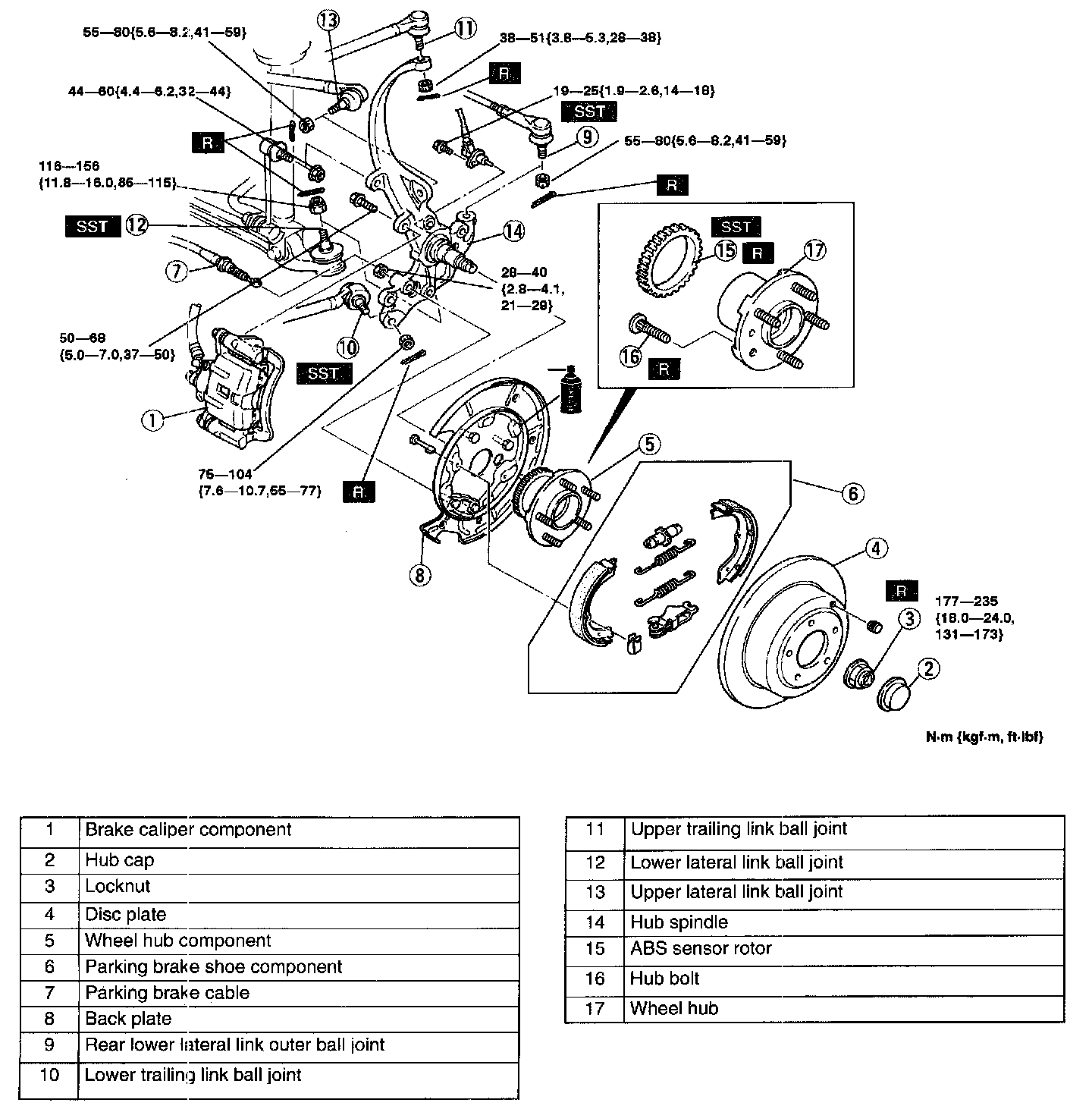

Rear Axle

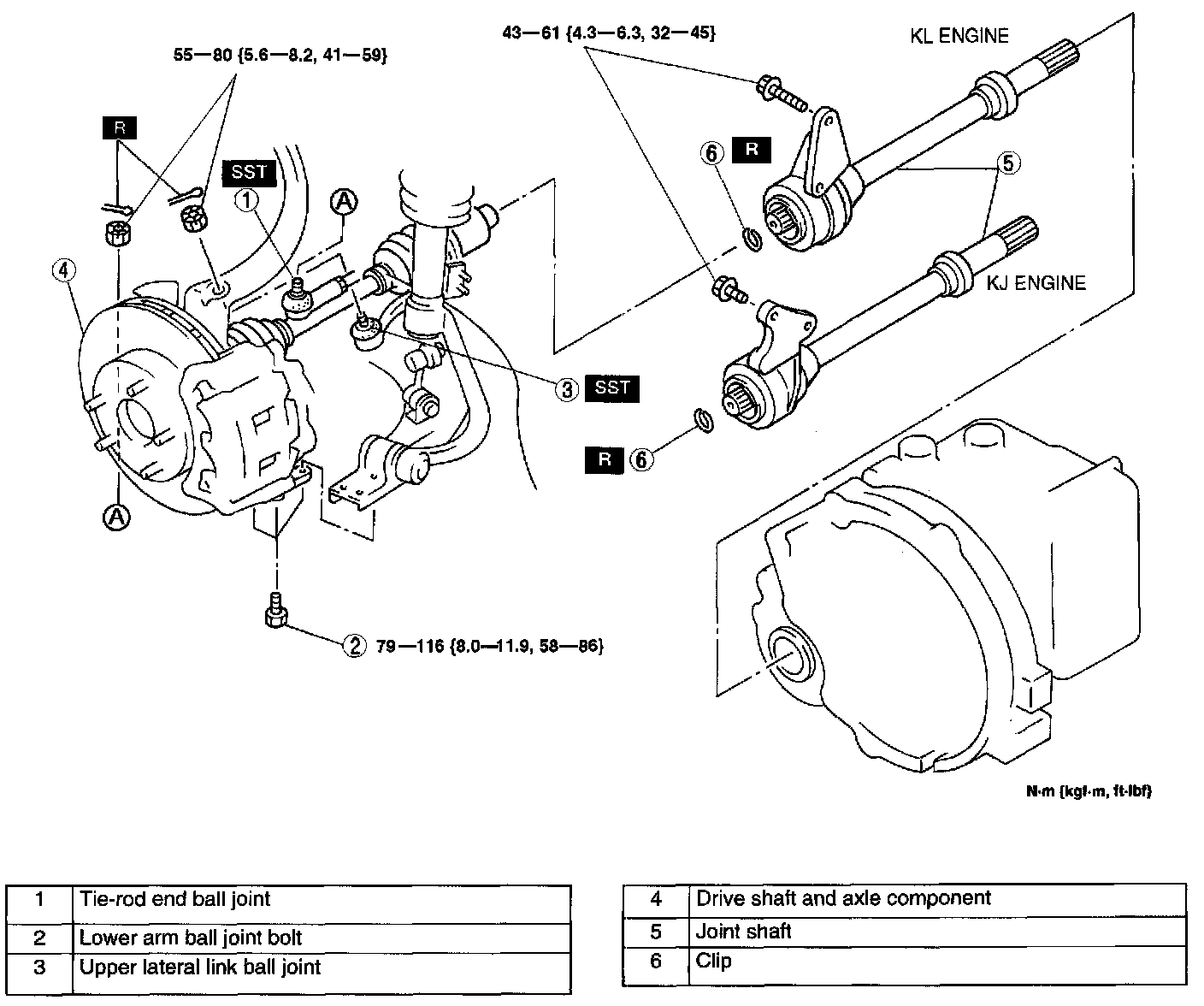

Joint Shaft

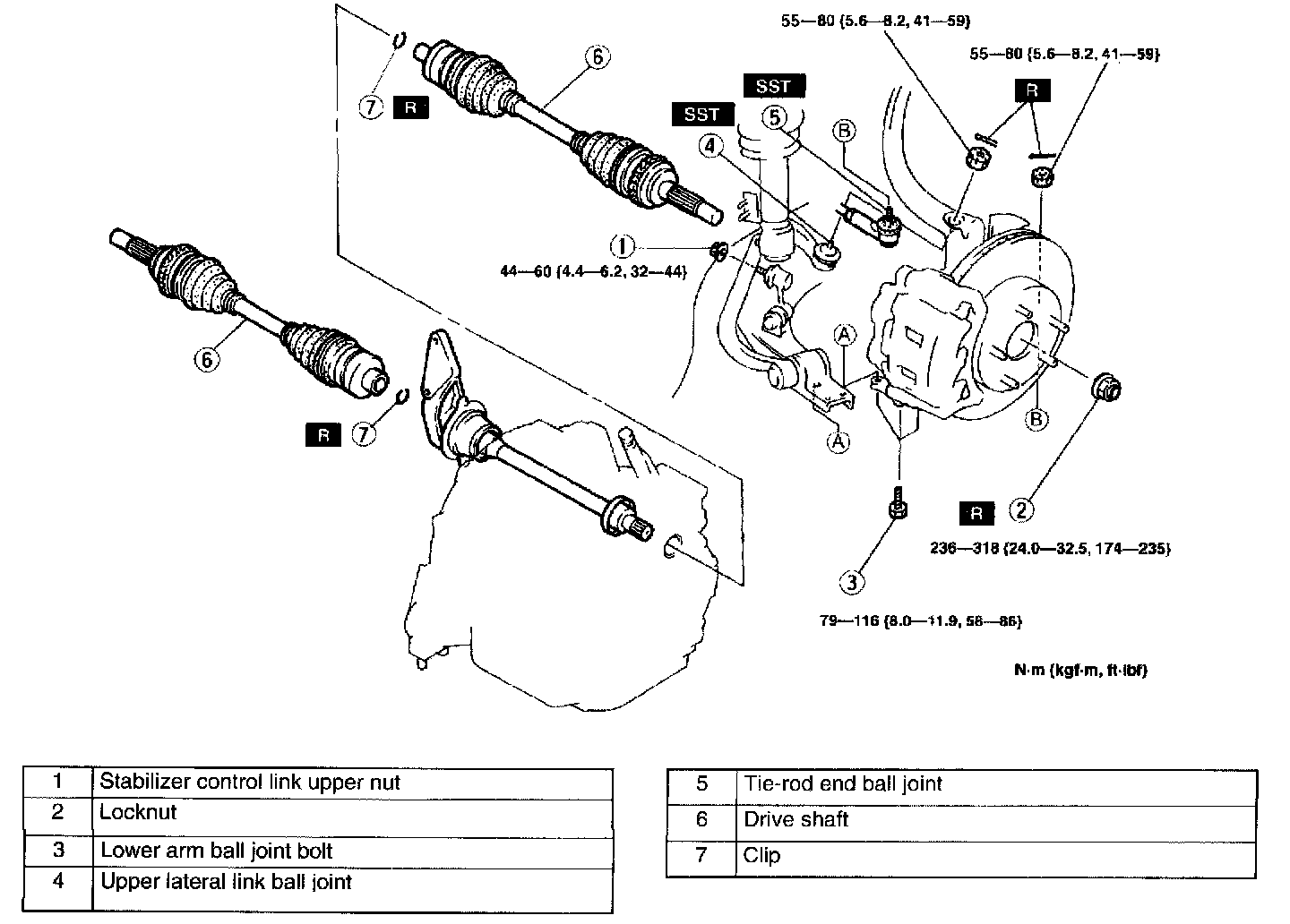

Axle Shaft

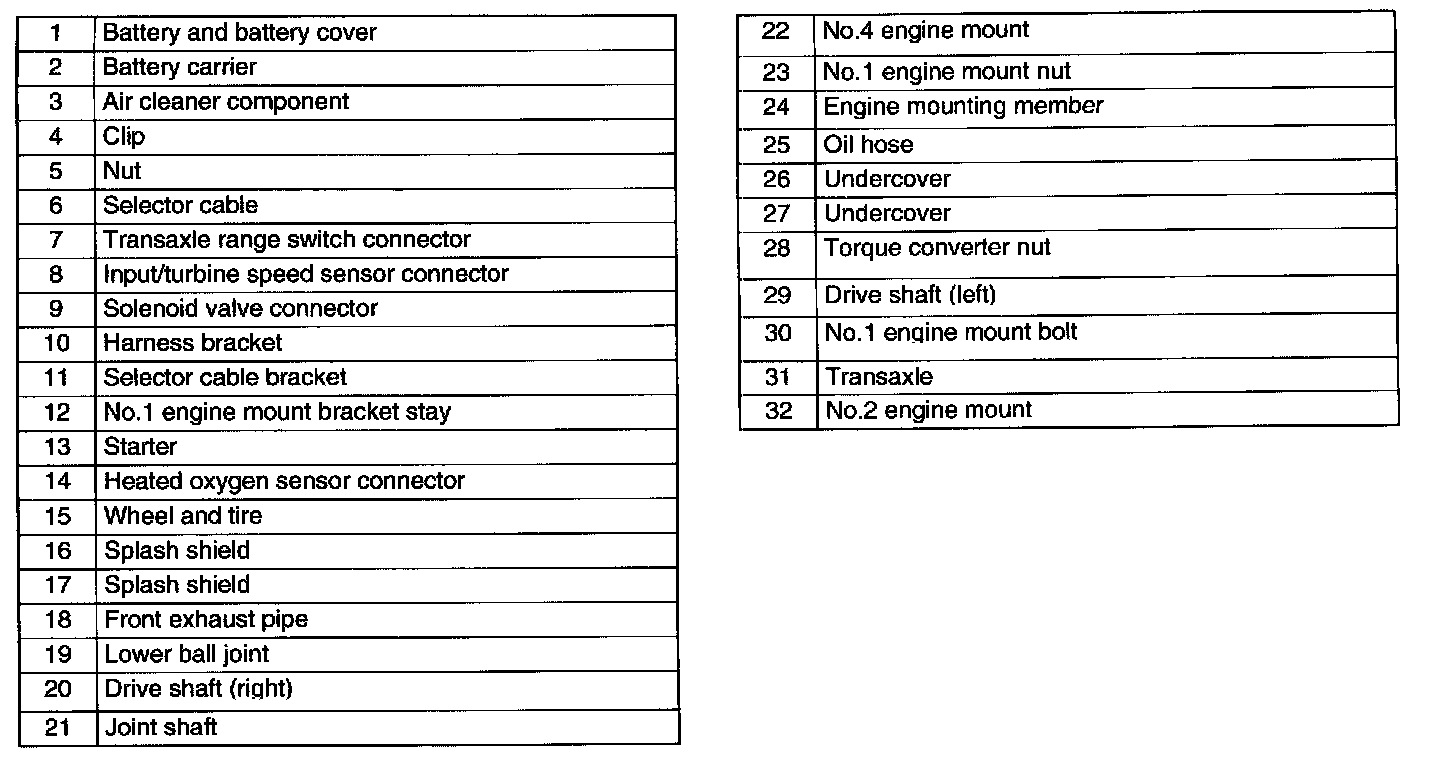

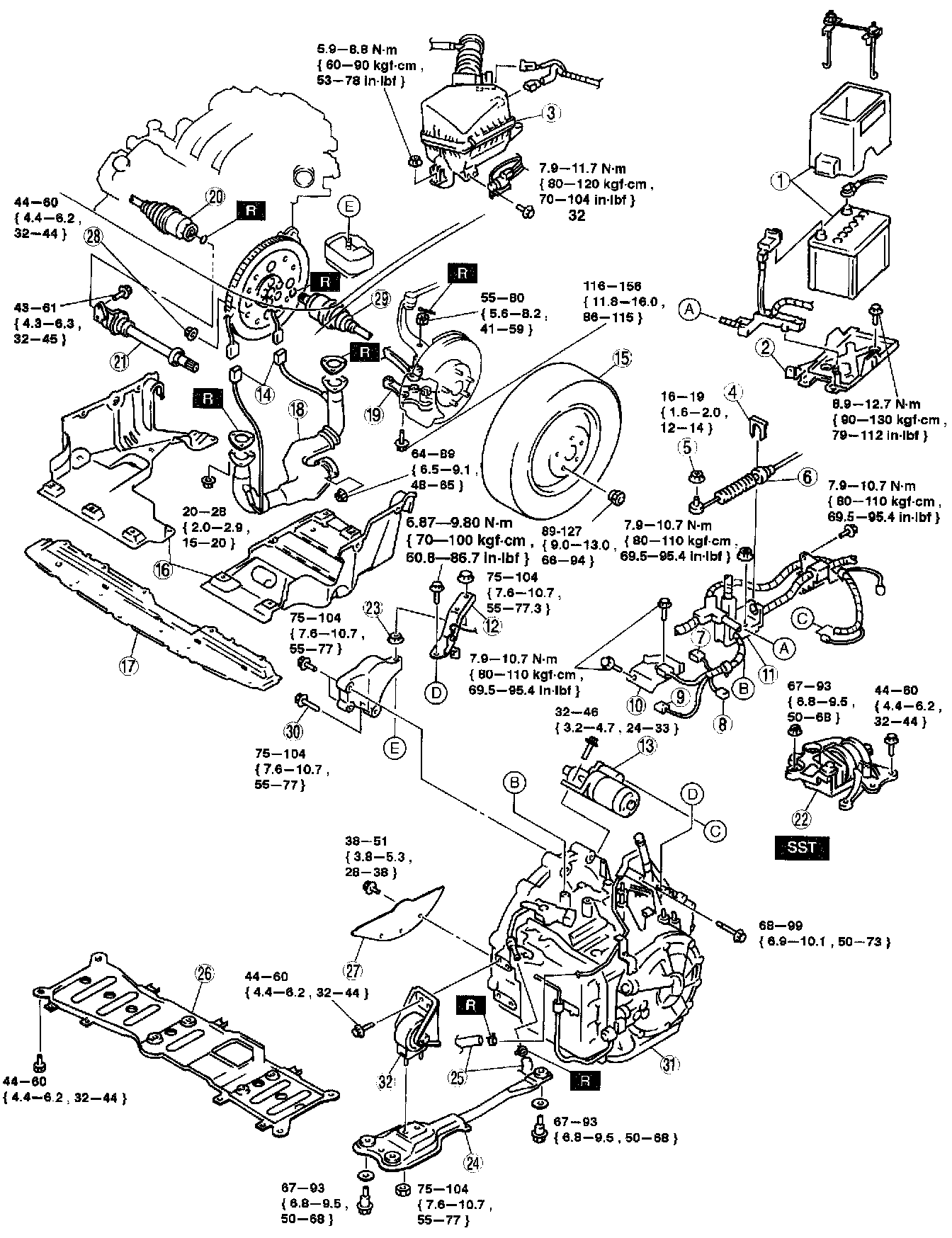

Automatic Transaxle (Part 1 of 2)





Automatic Transaxle (Part 2 of 2)

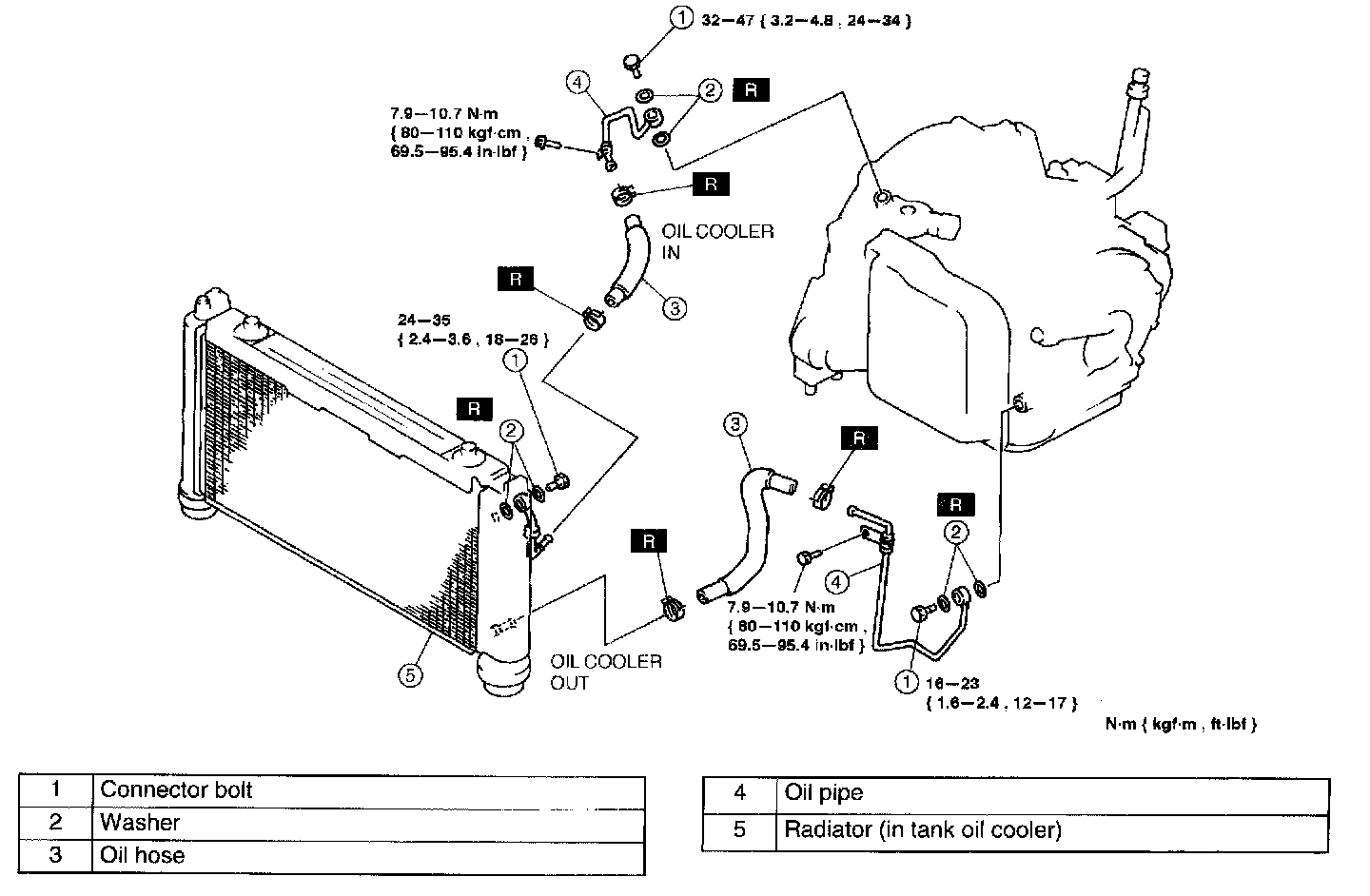

Transmission Oil Cooler

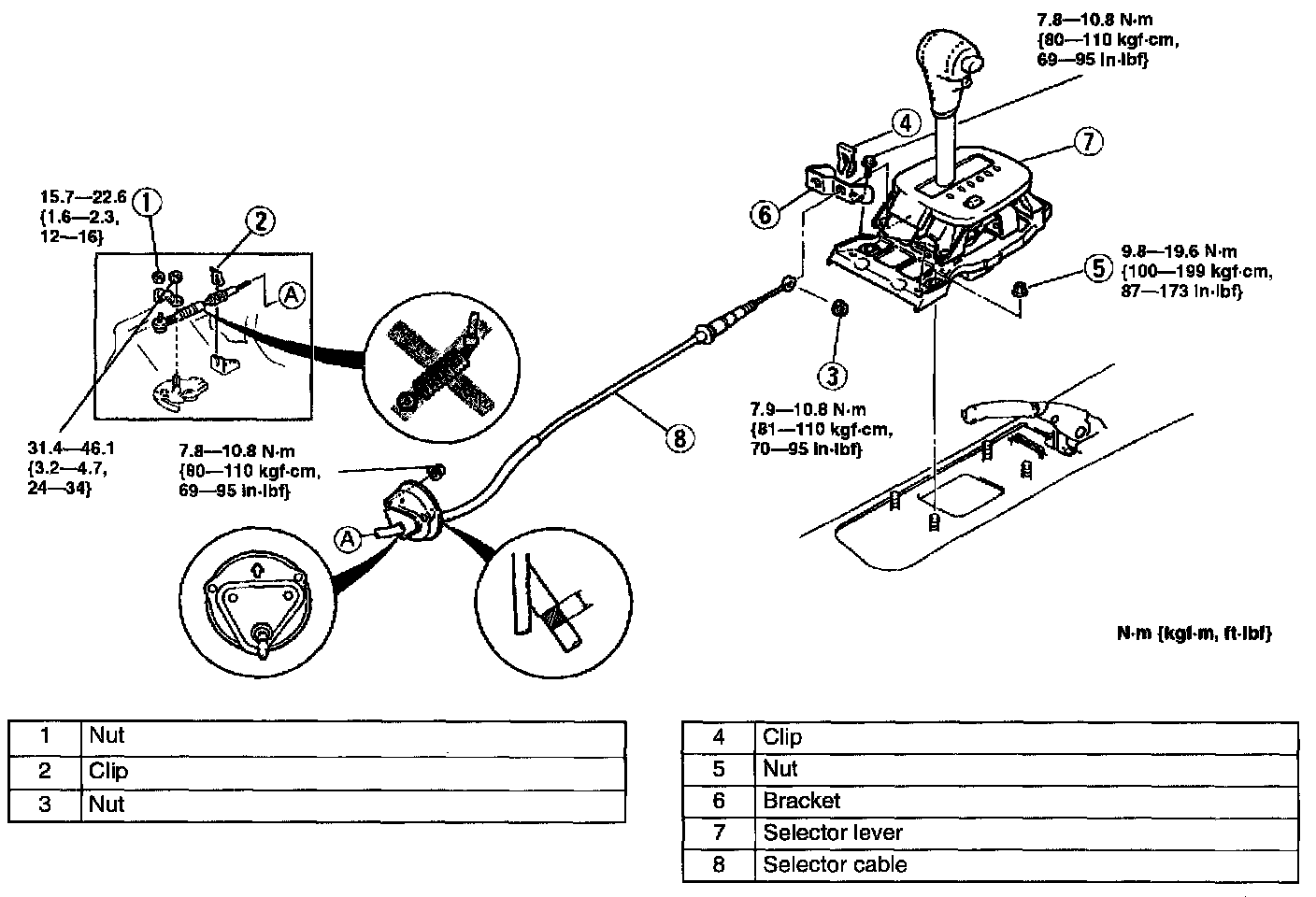

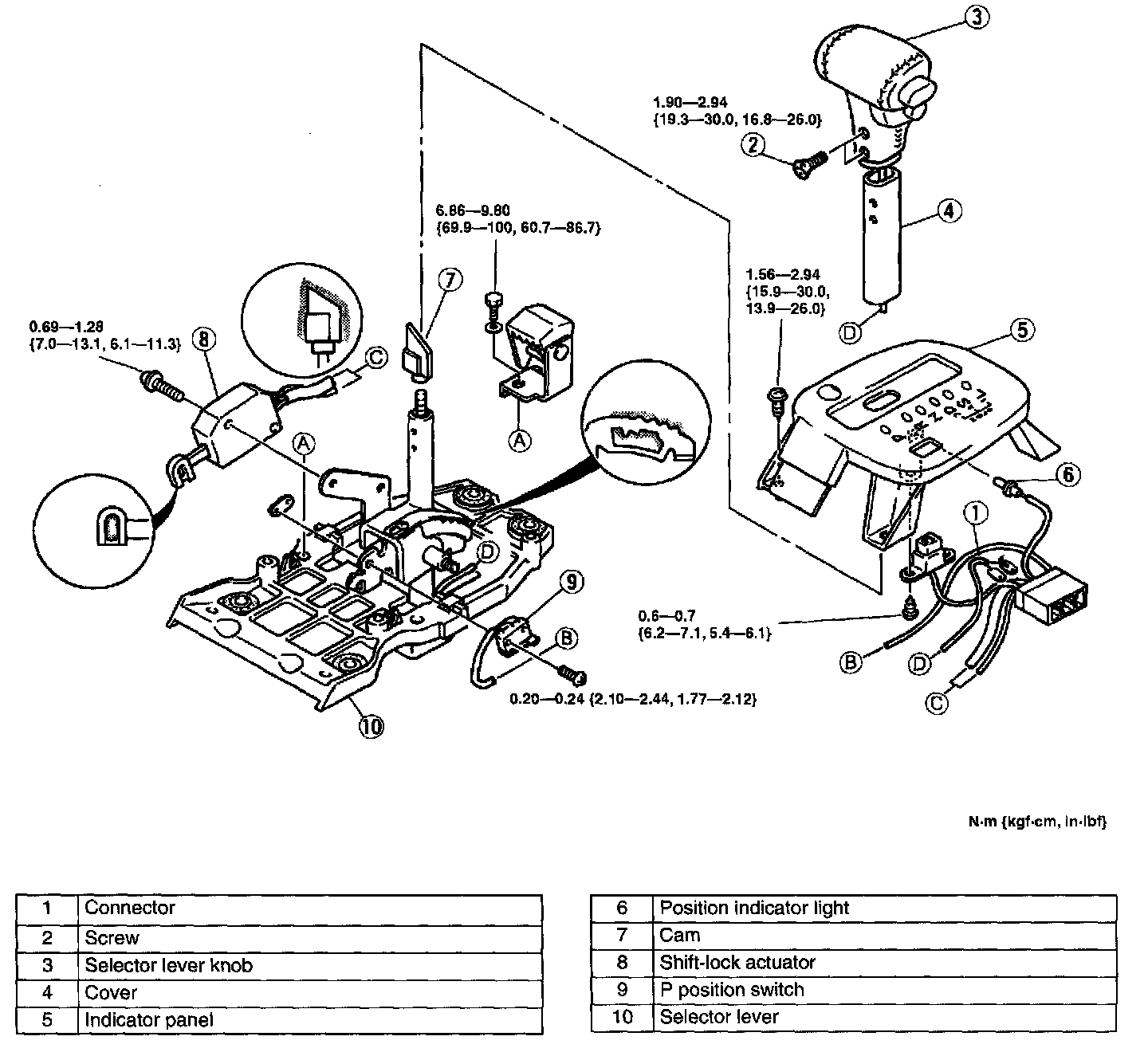

Selector Lever (Part 1 of 2)





Selector Lever (Part 2 of 2)
