Fender Splash Shield

Removal and Installation

1. Remove the front wheel and tire assembly. For additional information, refer to WHEEL AND TIRE.

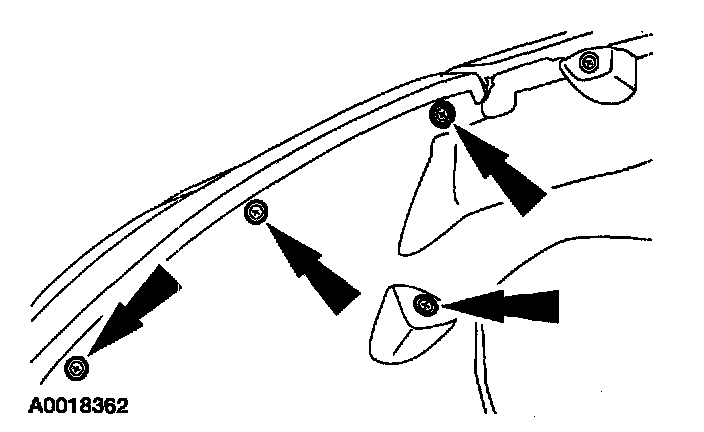

2. Remove the fender splash shield pin-type retainers.

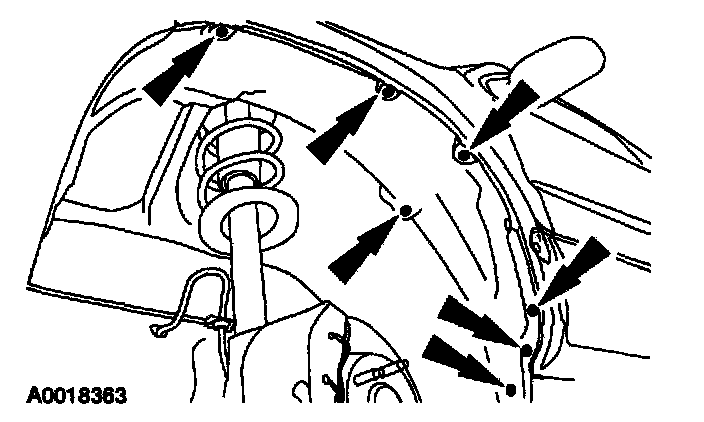

3. Remove the fender splash shield screws.




4. Remove the fender splash shield.

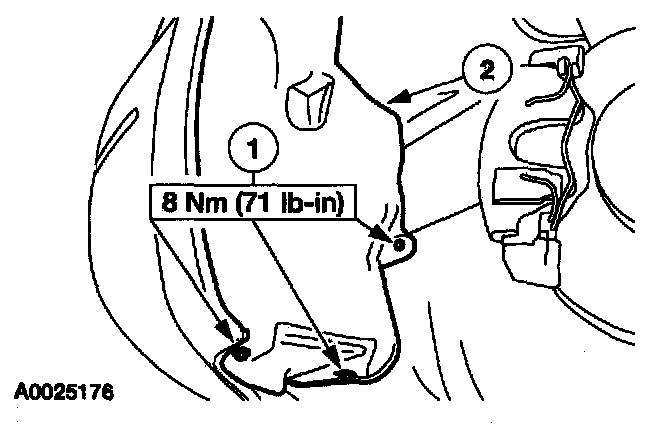

1. Remove the bolts.
2. Remove the fender splash shield.

5. To install, reverse the removal procedure.
