Ignition Lock

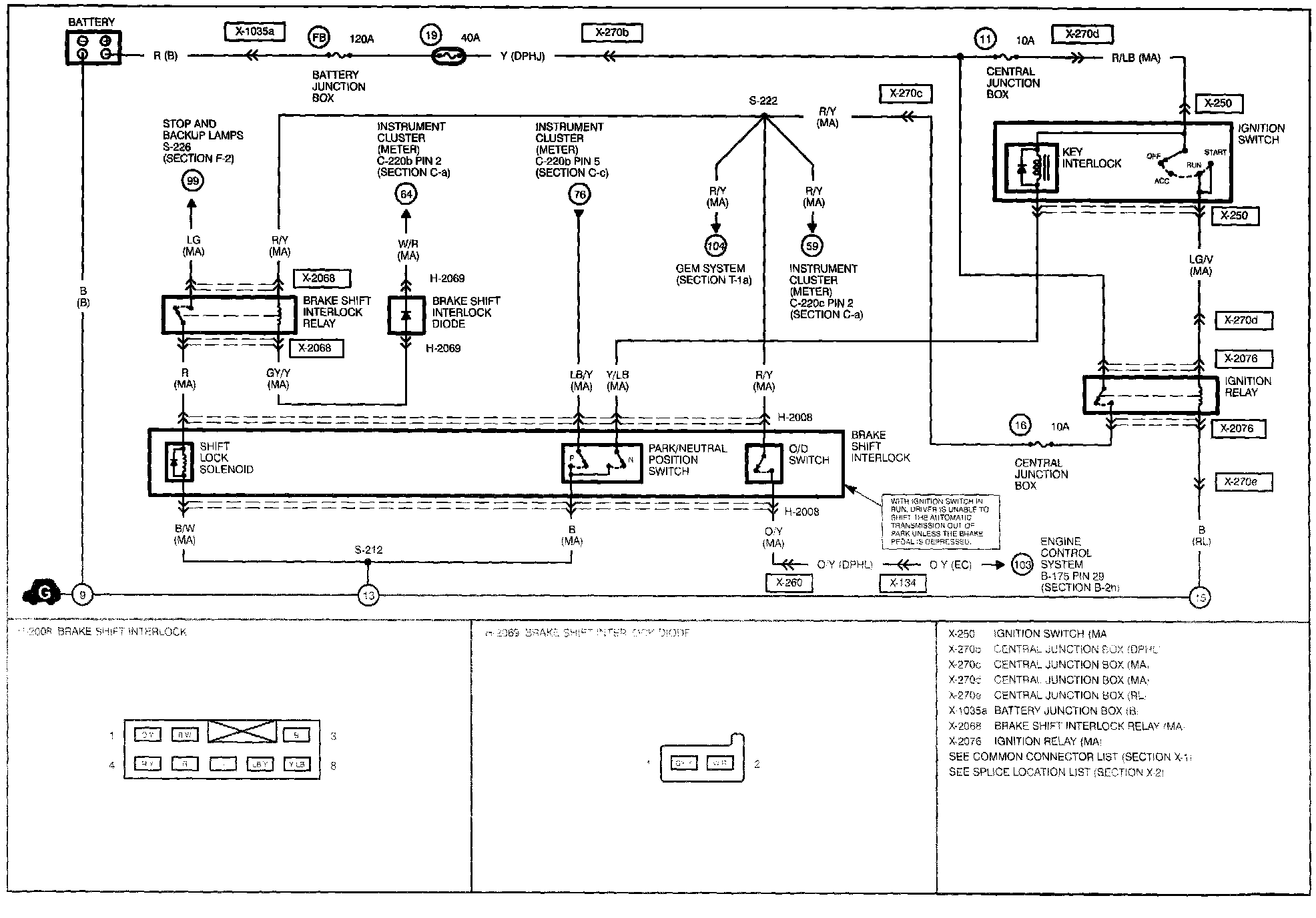

H-1 - Key Interlock System/Shift-lock System Circuit:

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z)
