Home >> Mazda >> 2002 >> Tribute DX 2WD L4-2.0L >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Test 4

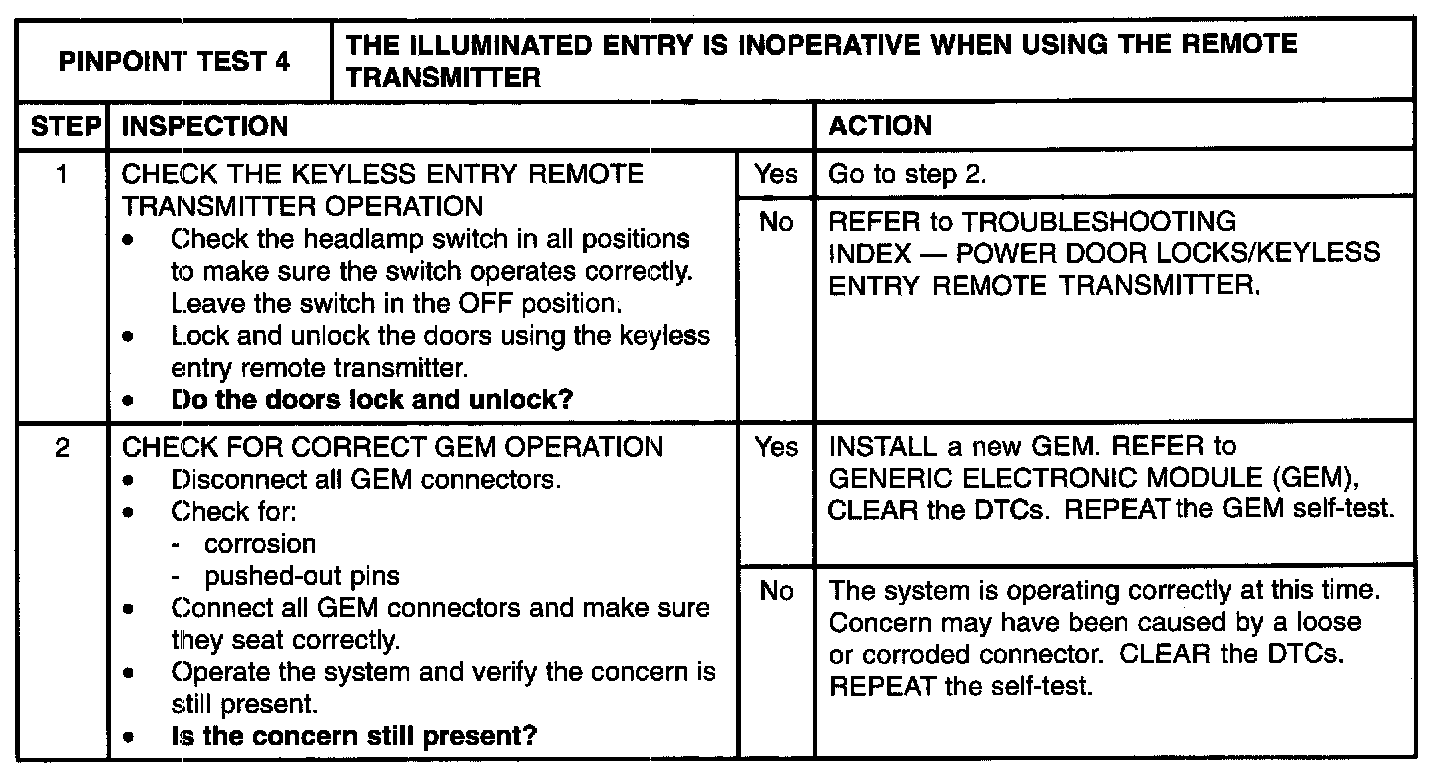

Pinpoint Test 4

Step 1 - 2:




4: The Illuminated Entry Is Inoperative When Using The Remote Transmitter
