Fog/Driving Lamp: Service and Repair

Removal and Installation

1. Remove the tire and wheel.

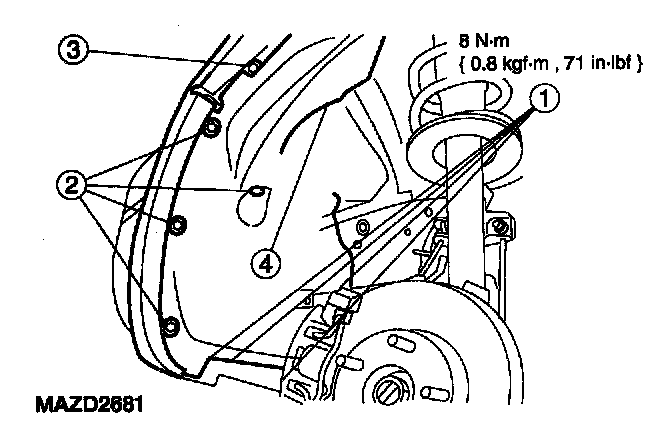

2. Position the inner tender well aside.
1. Remove the bolts.
2. Remove the pin-type retainers.
3. Remove the screw.
4. Position the inner tender well aside.

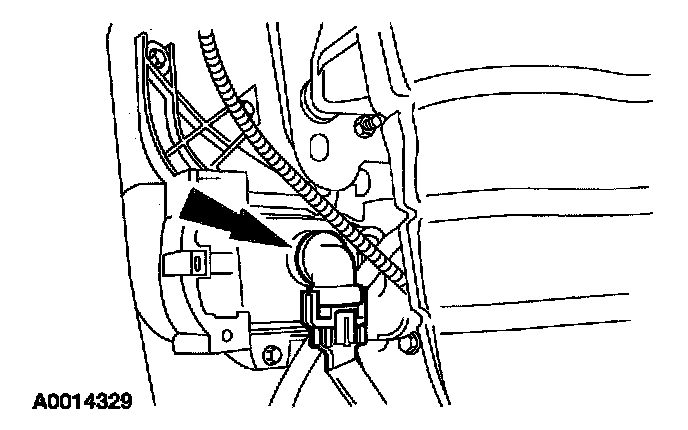

3. Disconnect the electrical bulb assembly and position aside.

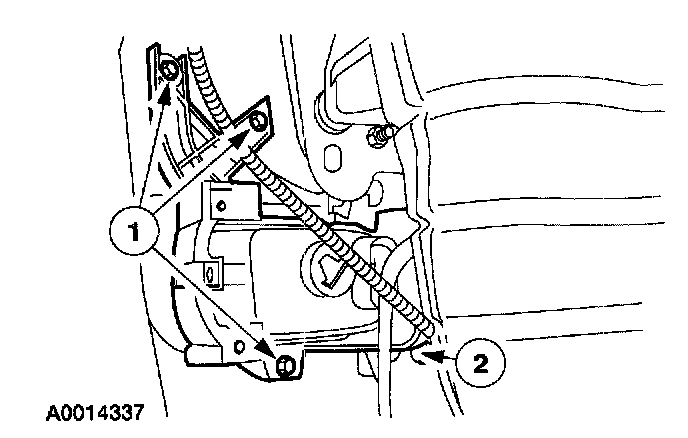

4. Remove the fog lamp assembly.
1. Remove the bolts.
2. Remove the fog lamp assembly.






NOTE: This step may not be necessary if the fog lamp comes with bracket.

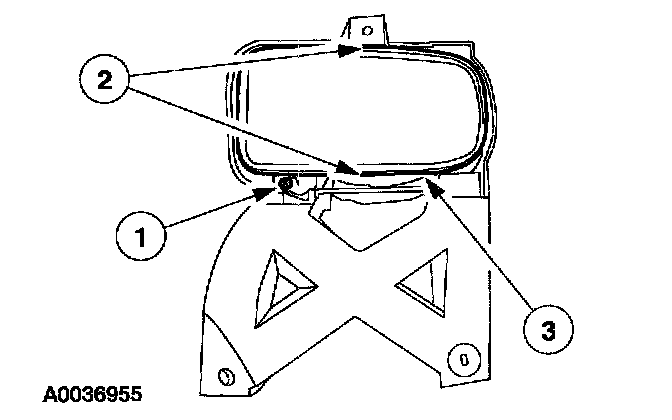

5. Remove the fog lamp from the fog lamp bracket.
1. Remove the adjusting screw and spring.
2. Squeeze the top and bottom of the fog lamp bracket.
3. Remove the fog lamp from the fog lamp bracket.

6. To install, reverse the removal procedure.
