Locations
>>

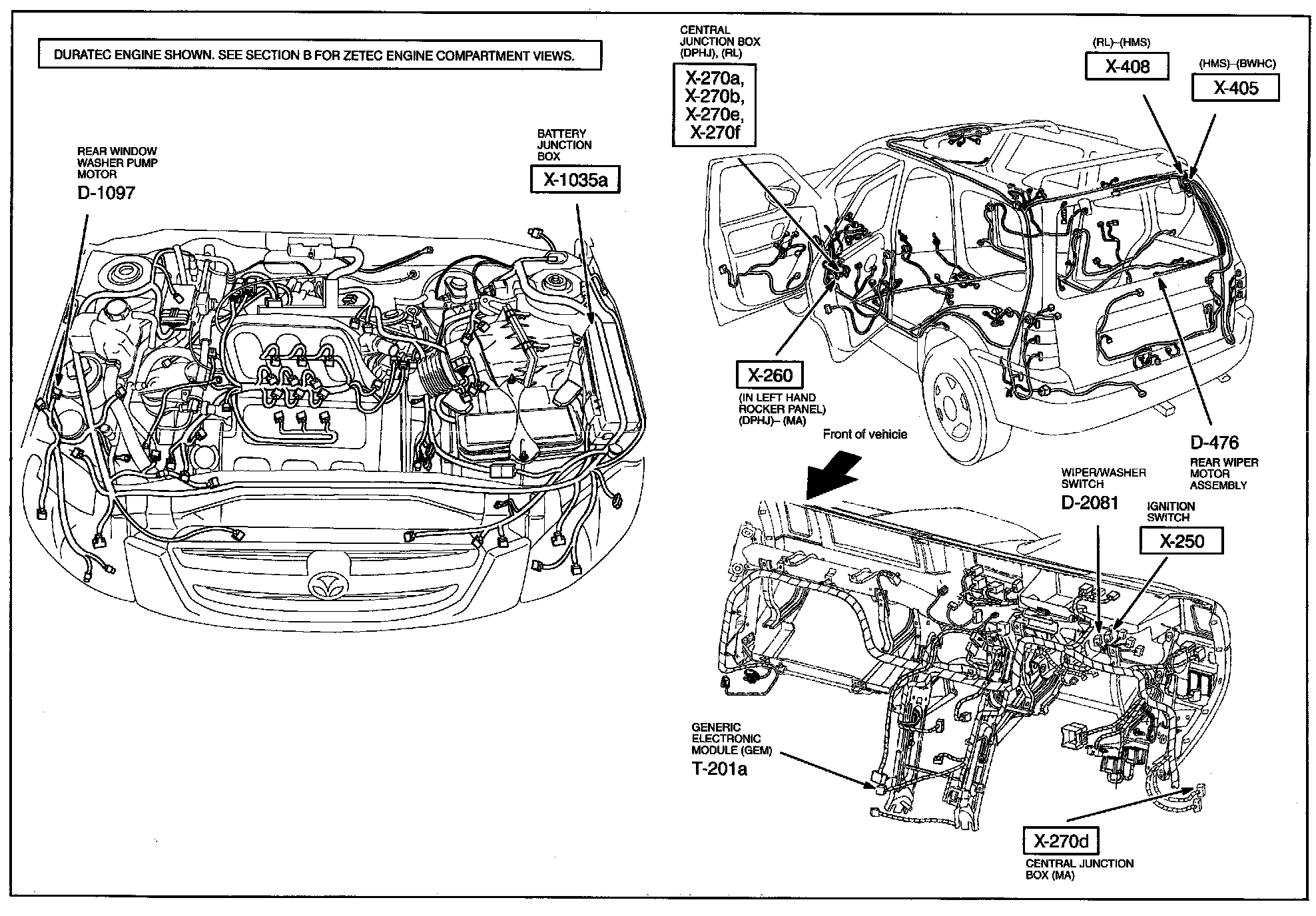

Connector Locations
>>
D-b - Interval Wiper/Washer
D-b - Interval Wiper/Washer
D-b - Interval Wiper/Washer Harness/Connector Symbols:
