Home >> Mazda >> 2002 >> Tribute DX 2WD L4-2.0L >> Repair and Diagnosis >> Locations >> Connector Locations >> N-b - Cruise Control

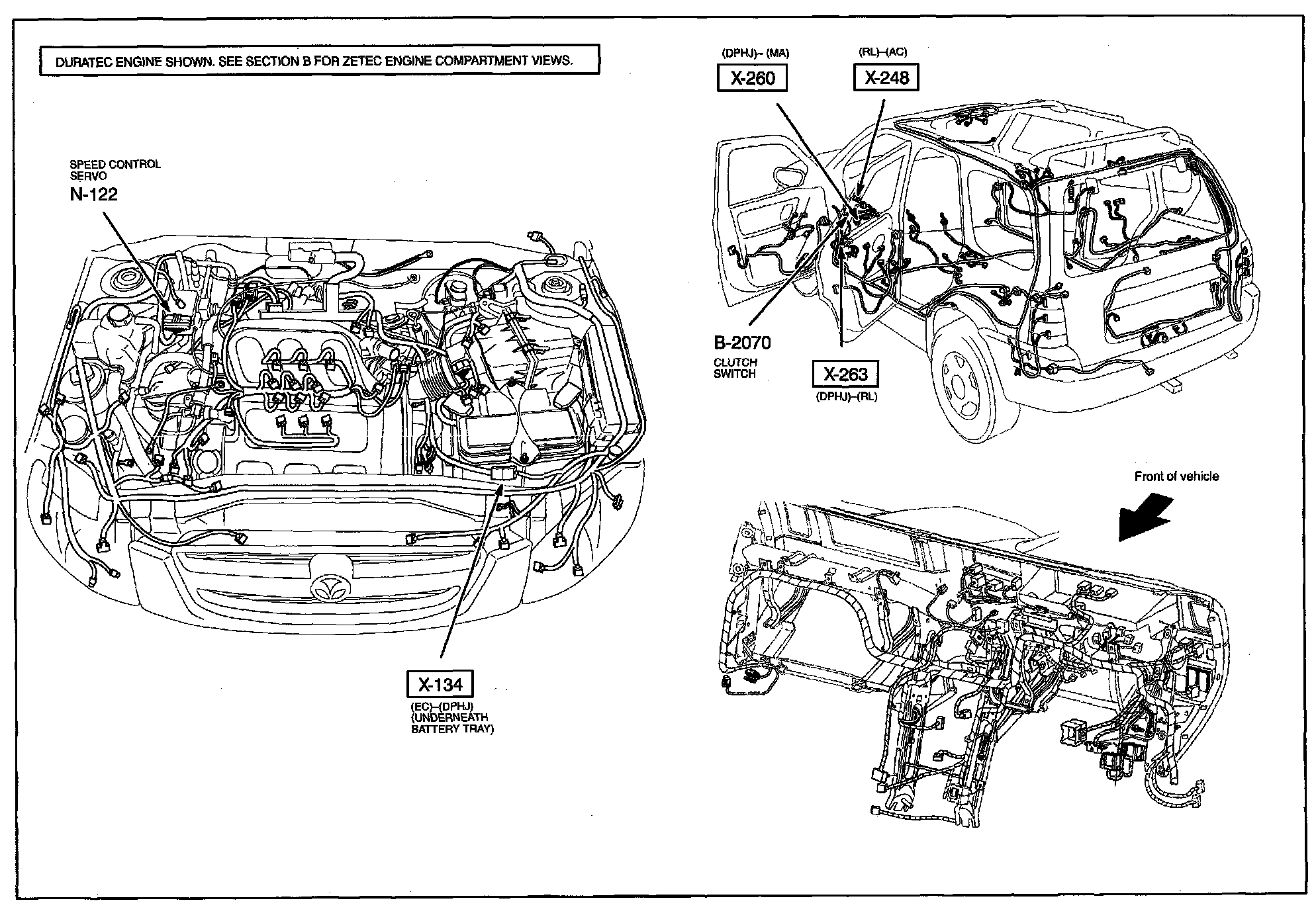

N-b - Cruise Control

N-b - Cruise Control Harness/Connector Symbols:
