Locations
>>
Connector Locations
>>

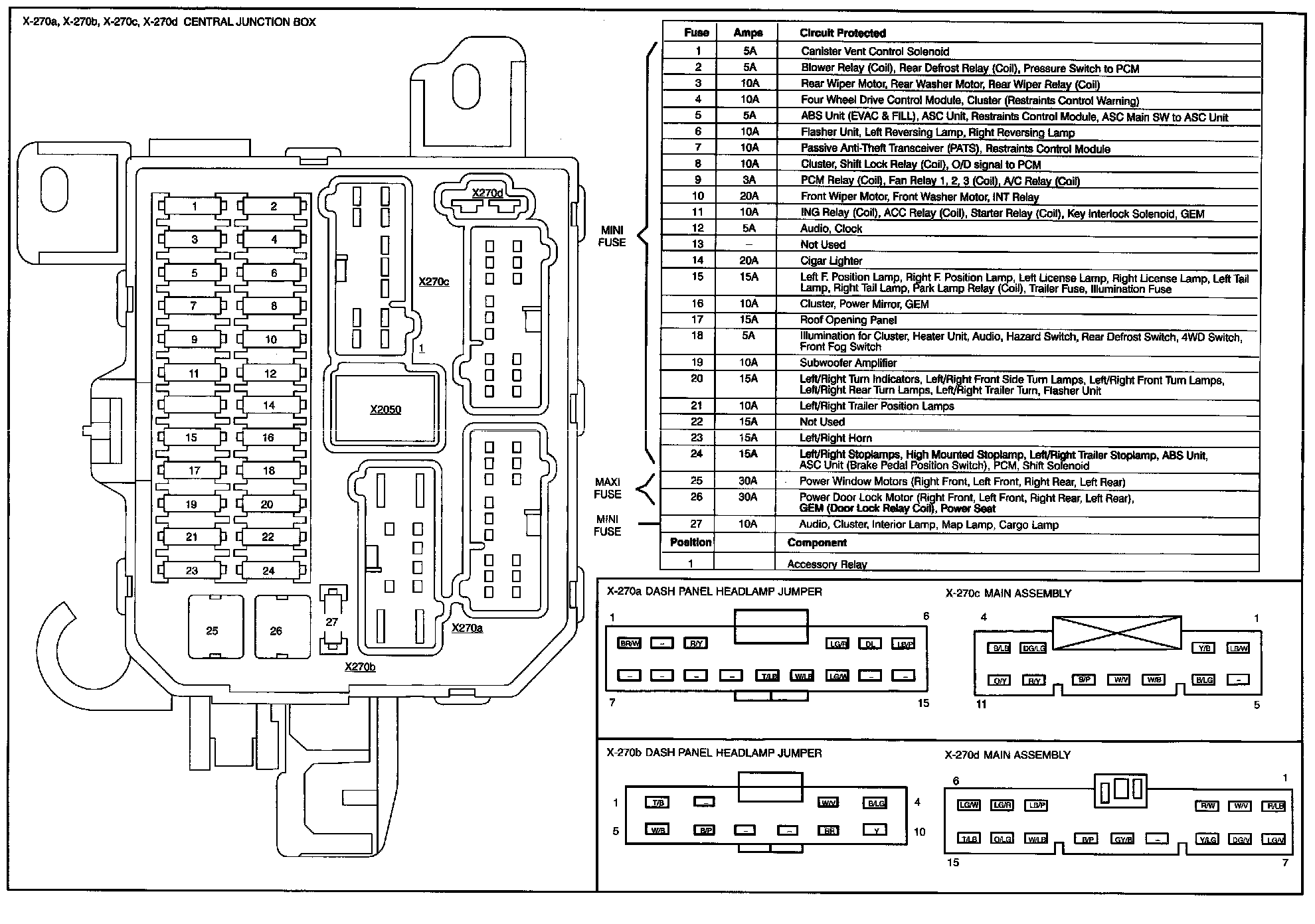

X-1b - Common Connector List
X-1b - Common Connector List
X-1b - Common Connector List:
