Idle Speed/Throttle Actuator - Electronic: Service and Repair

IDLE AIR CONTROL (IAC) VALVE

Removal and Installation

1. Remove the air cleaner outlet tube.

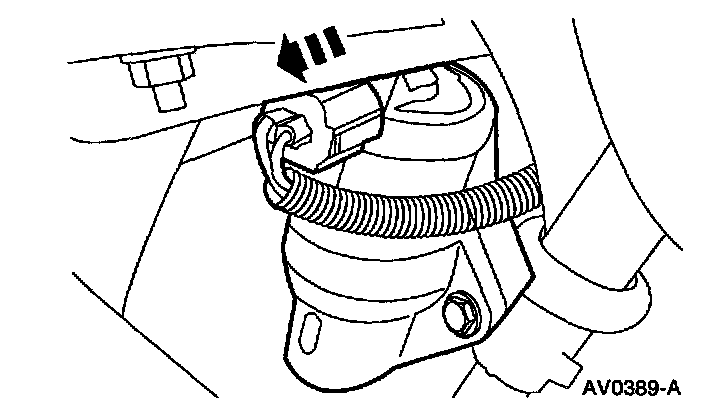

2. Disconnect the idle air control (IAC) valve electrical connector.

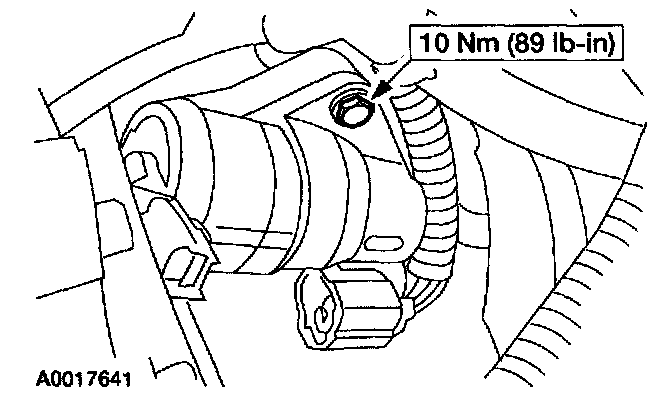

3. Remove the two bolts and the IAC valve.
1. Discard the gasket.

4. To install, reverse the removal procedure.
1. Install a new gasket.
