Electrical Diagrams

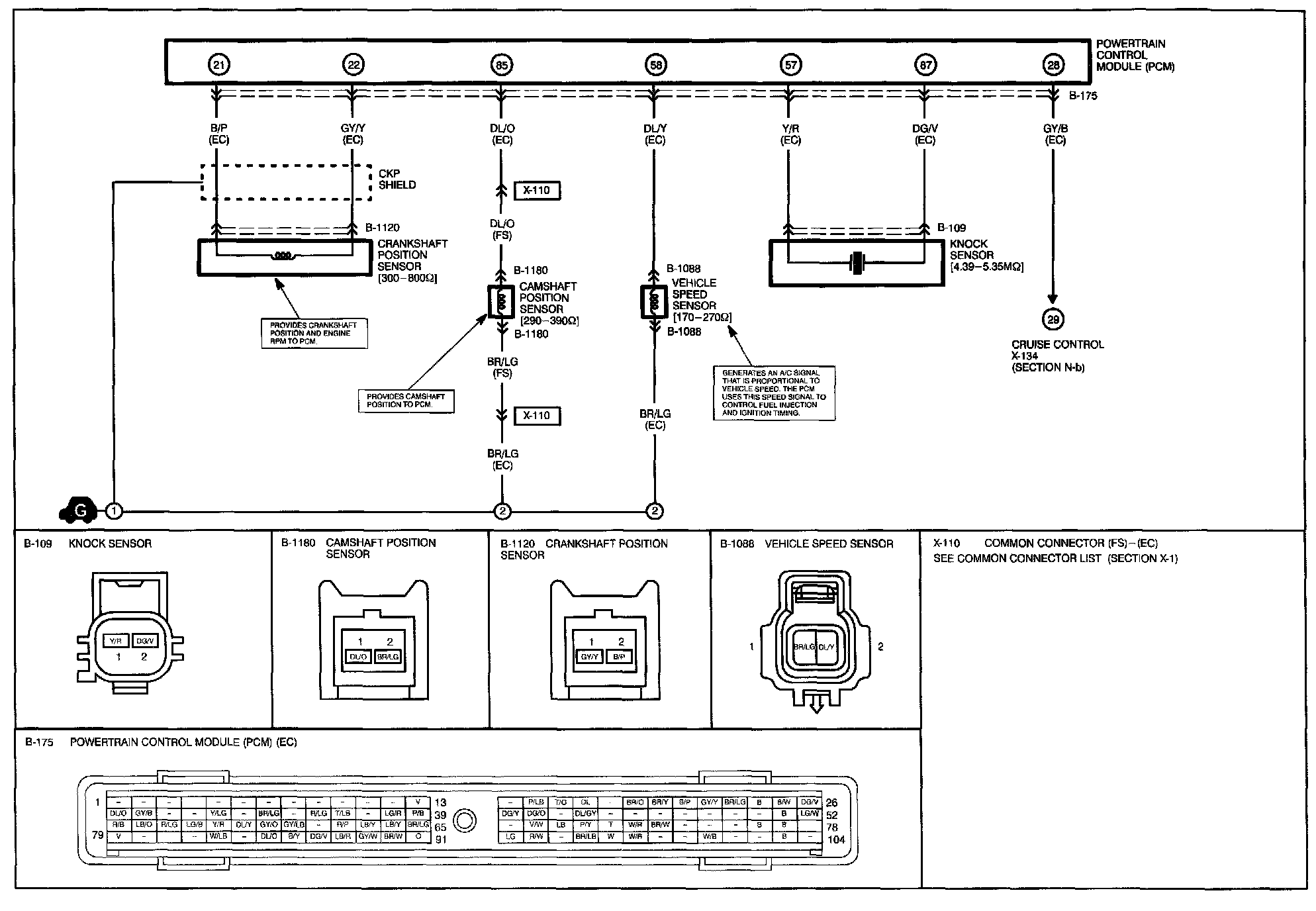

B-1a - Engine Control System Circuit:

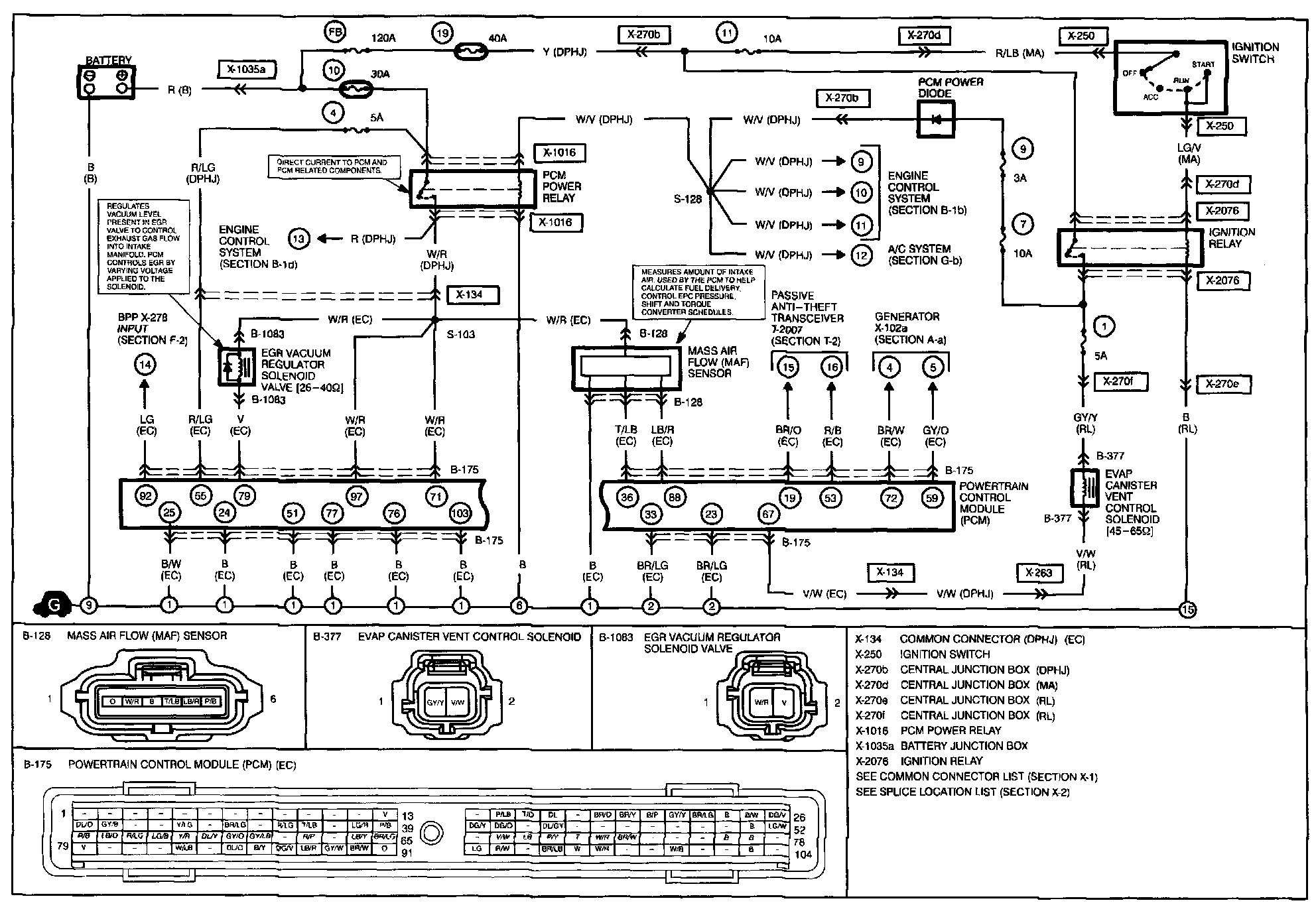

B-1b - Engine Control System Circuit:

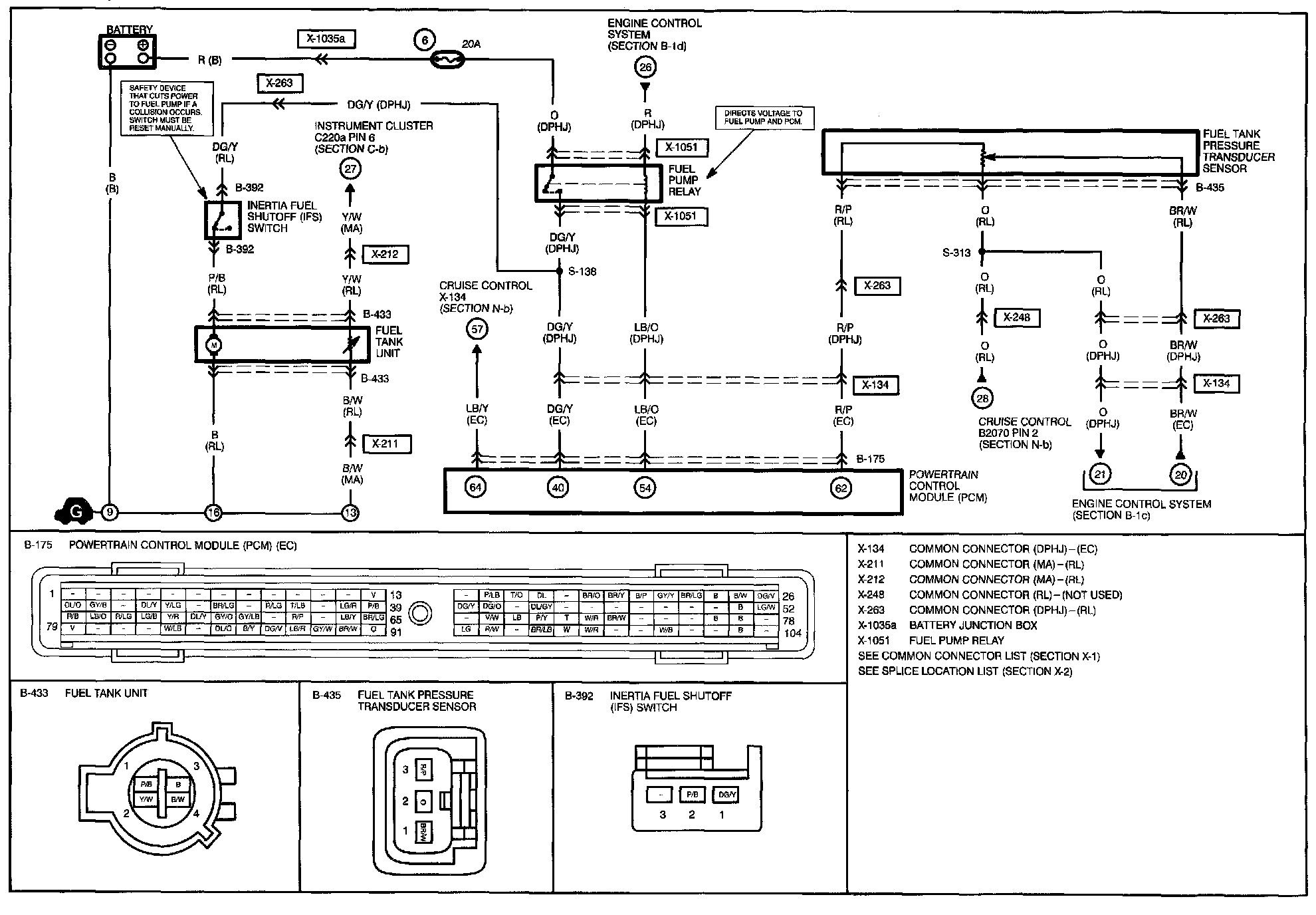

B-1c - Engine Control System Circuit:

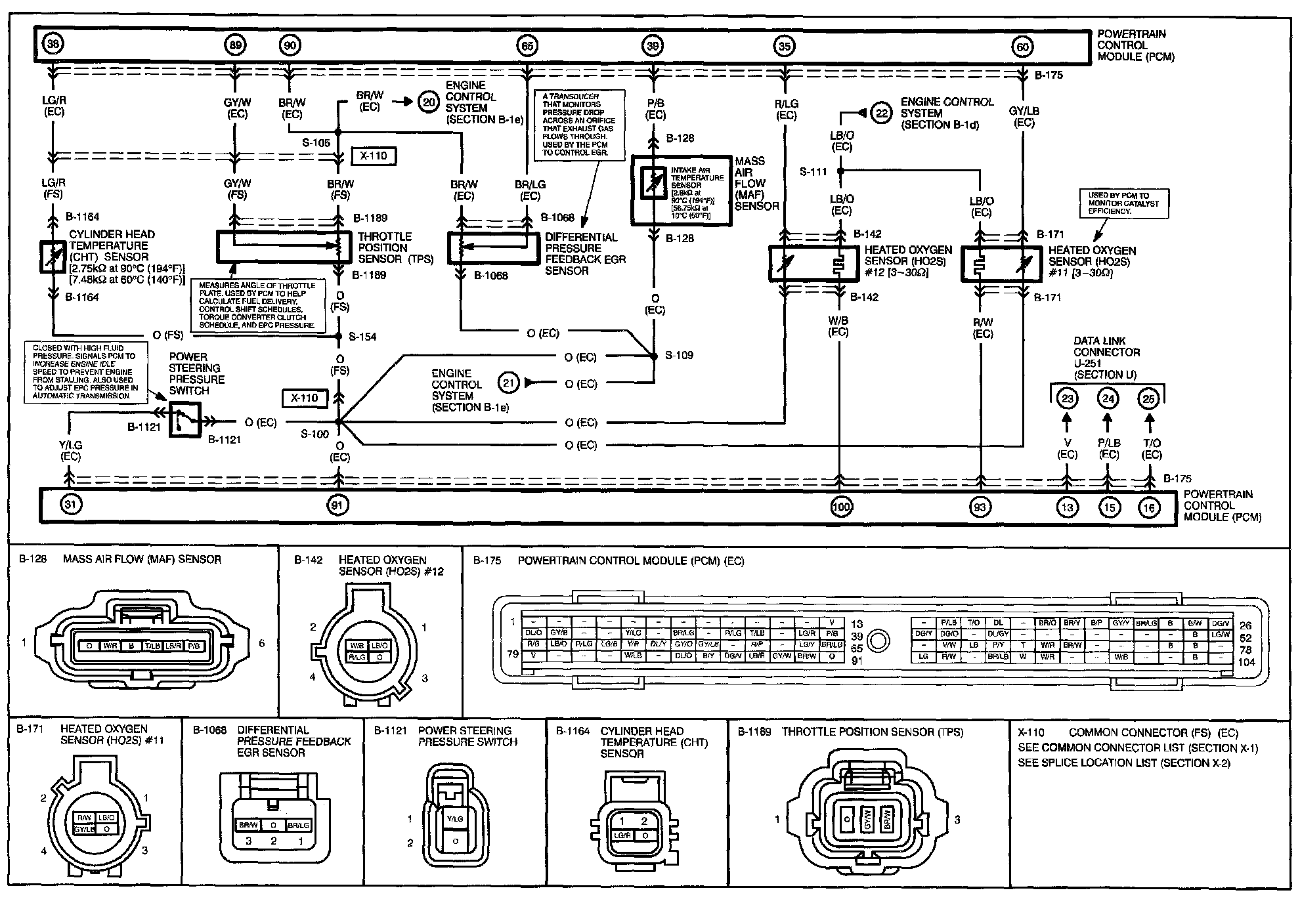

B-1d - Engine Control System Circuit:

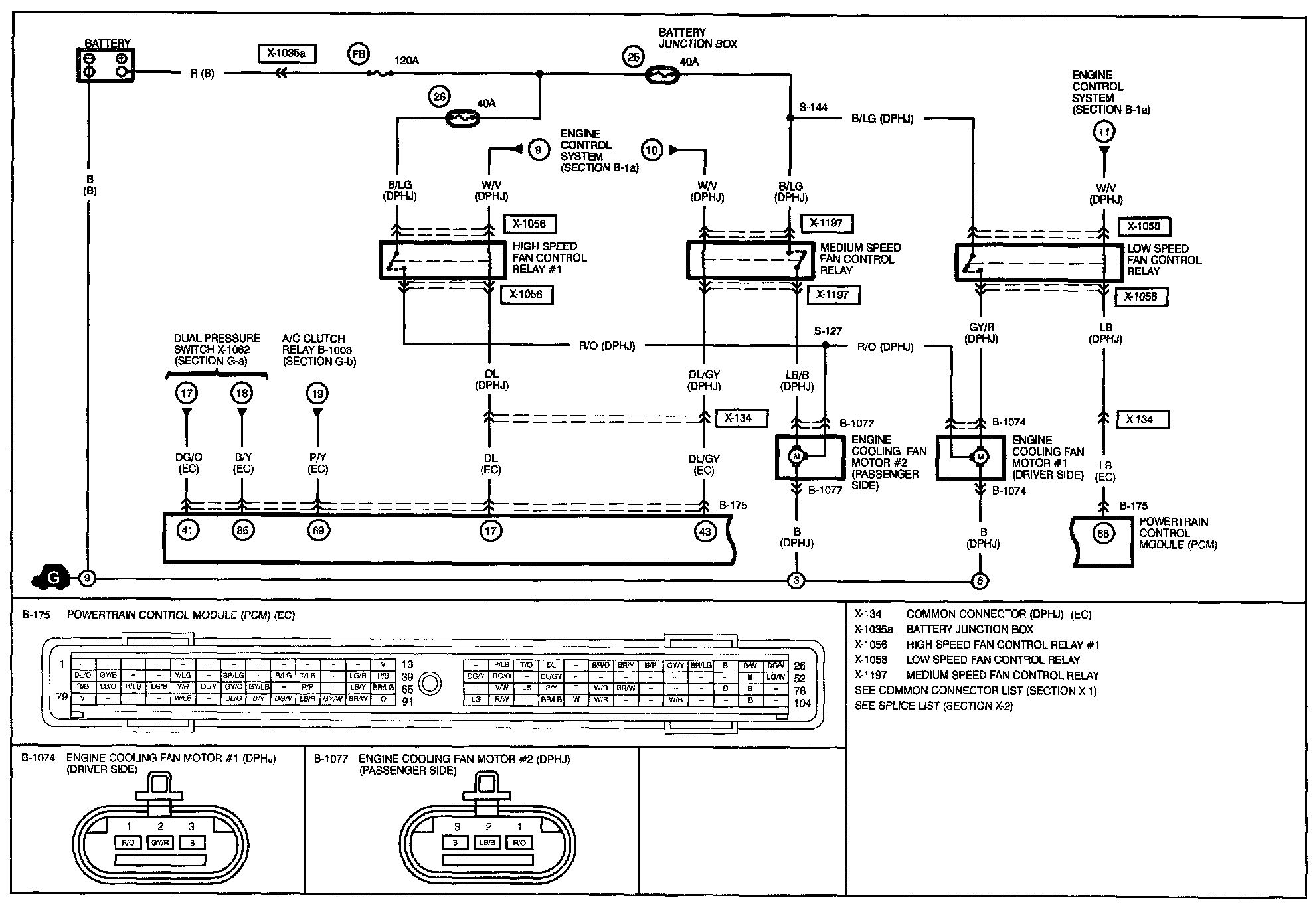

B-1e - Engine Control System Circuit:

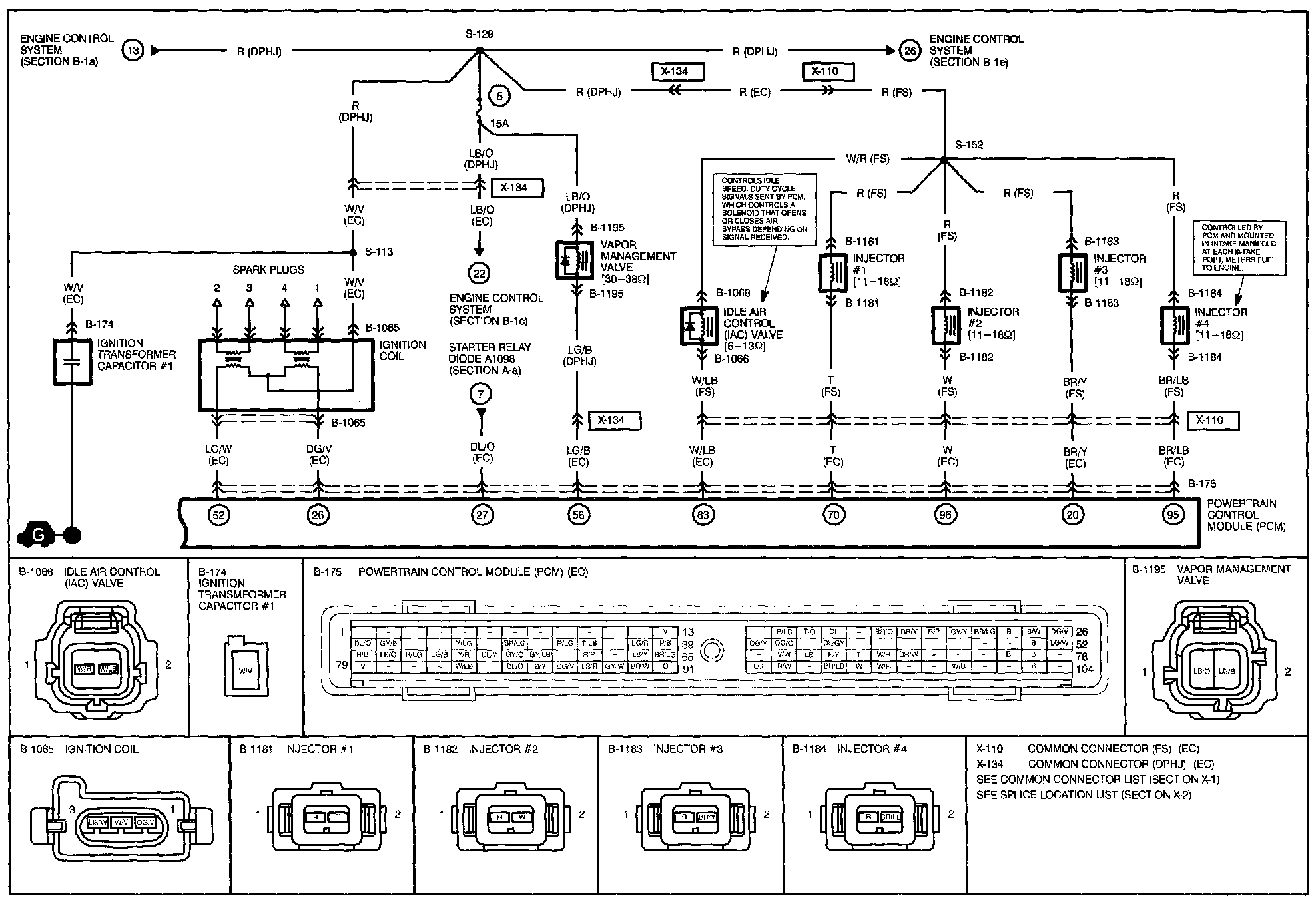

B-1f - Engine Control System Circuit:

Wiring Diagrams

NOTE: To view other s referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z)
