Sunroof / Moonroof Module: Service and Repair

ROOF OPENING PANEL MODULE

Removal and Installation

1. Remove the headliner.

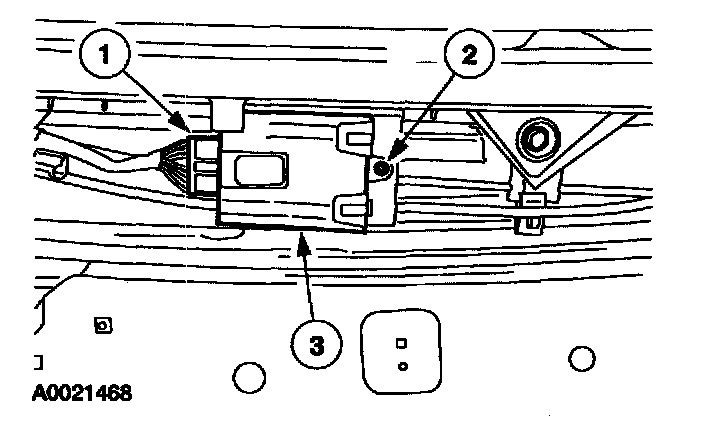

2. Remove the roof opening panel module.
1. Disconnect the electrical connector.
2. Remove the screw.
3. Remove the roof opening panel module.

3. To install, reverse the removal procedure.
