Electronic Brake Control Module: Service and Repair

Removal and Installation
1. Disconnect the battery negative cable.
2. Remove the air cleaner.
3. Remove the air cleaner outlet pipe.

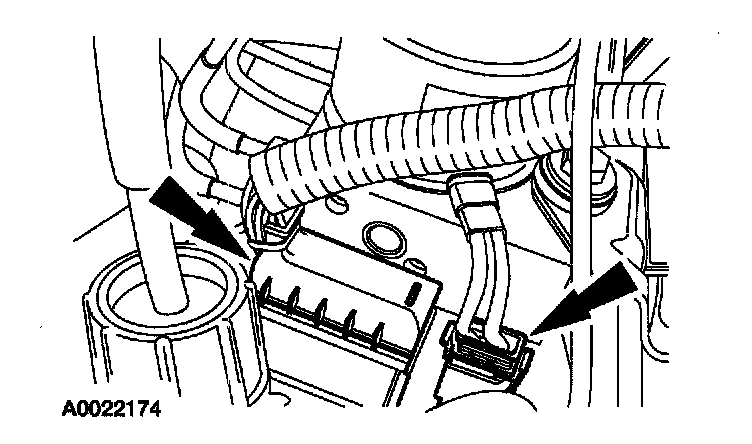

4. Disconnect the electrical connectors.

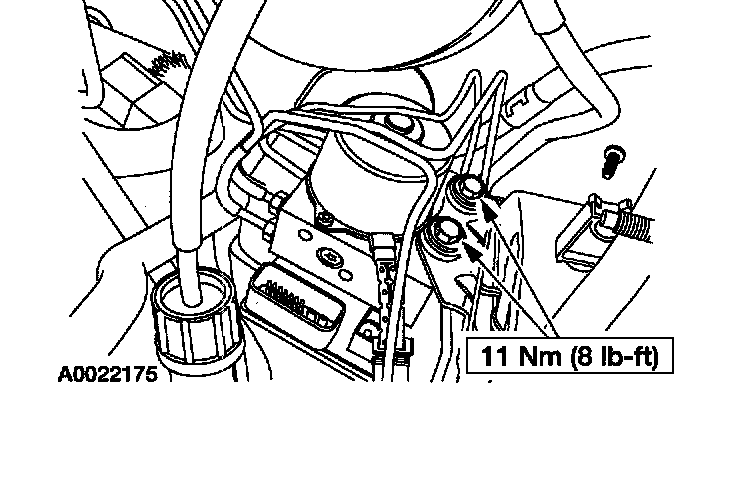

5. Remove the bolts.

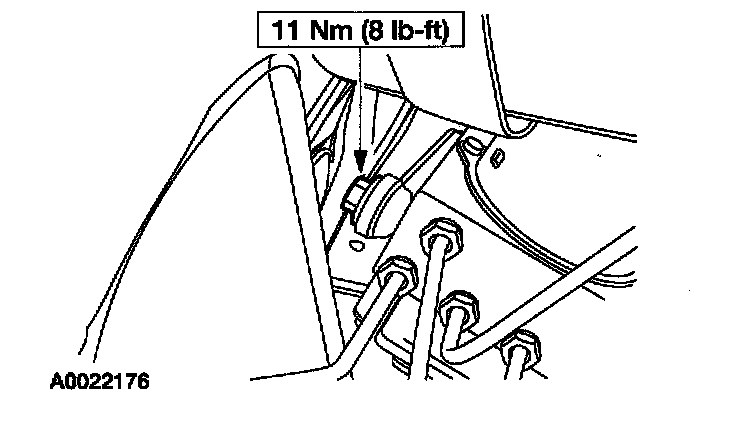

6. Remove the bolt.
7. Raise and support the vehicle.

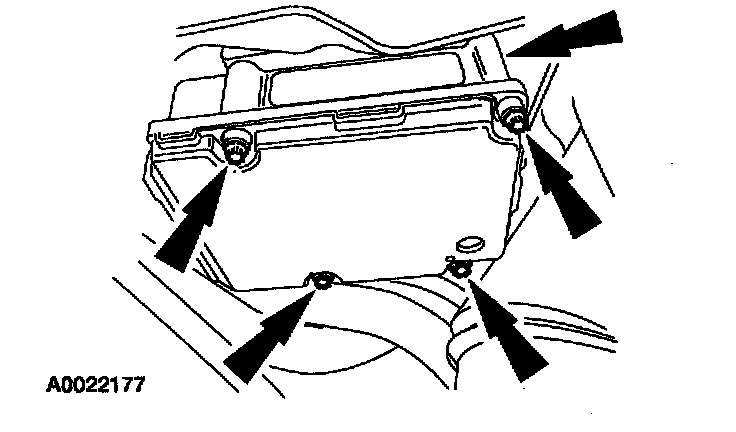

8. Remove the screws and the control module.

Note: The 4x2 and 4x4 modules are not interchangeable. Before installing a module, verify its application.

9. To install, reverse the removal procedure.
