Home >> Mazda >> 2002 >> Tribute DX 2WD L4-2.0L >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Pinpoint Tests >> 5: System Overcharges

5: System Overcharges

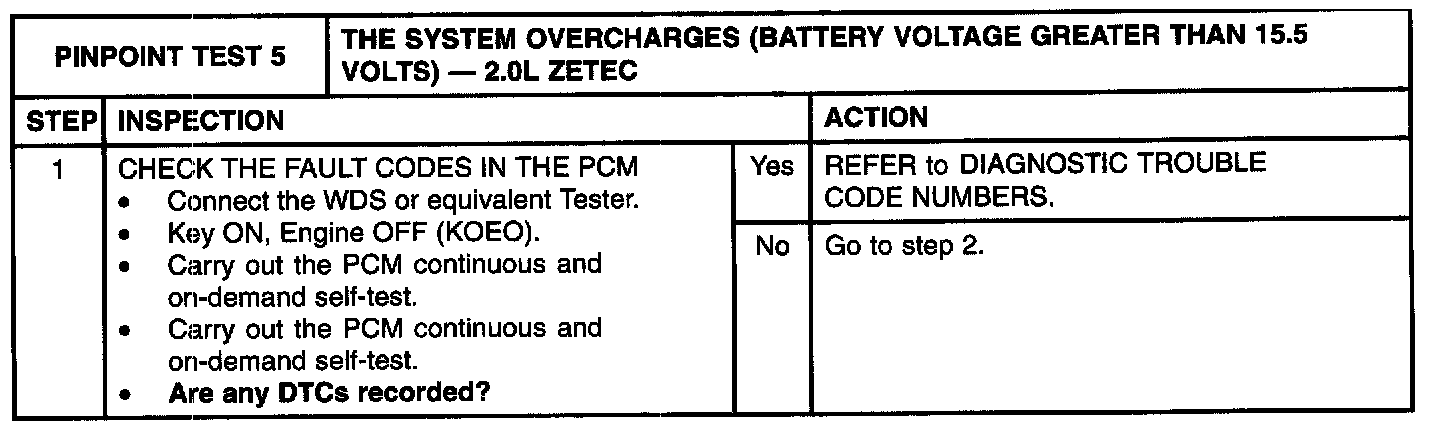

Step 1:

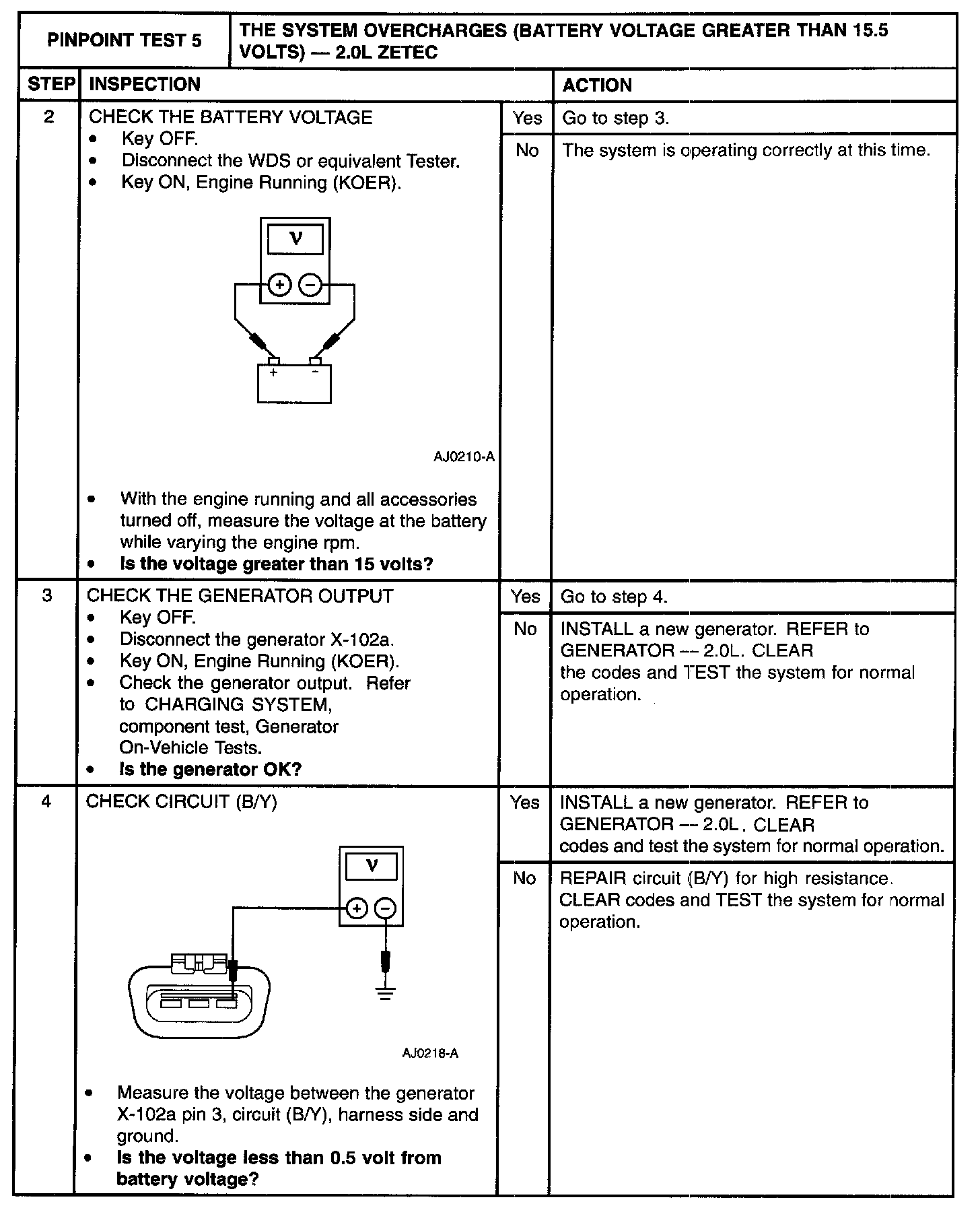

Step 2 - 4:
