Chain Sprockets

CHAIN SPROCKETS
Disassembly Note

Caution: Clamp the sprocket in a softjawed vise.

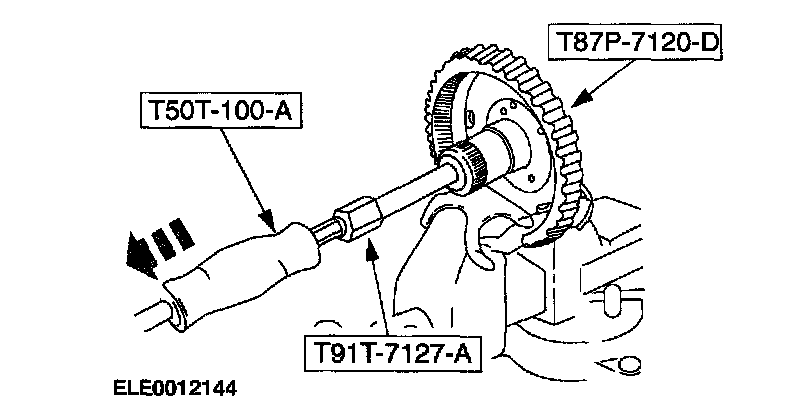

1. Using the special tools, remove the No. 16 reverse/overdrive ring gear bearing, as necessary.

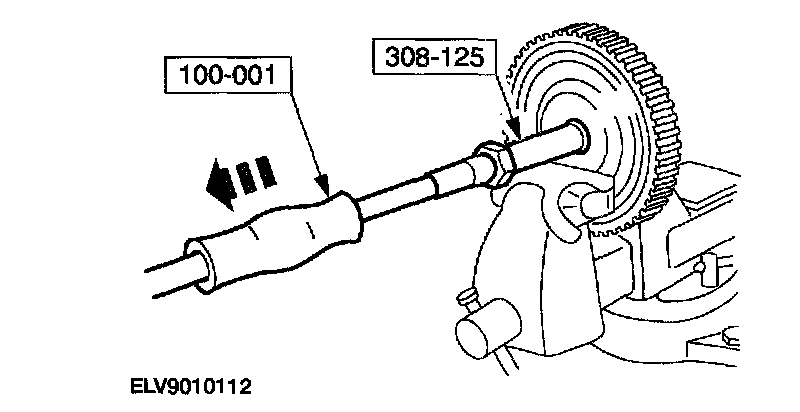

2. Using the special tools, remove the No. 17 stator support bearing, as necessary.

Assembly Note

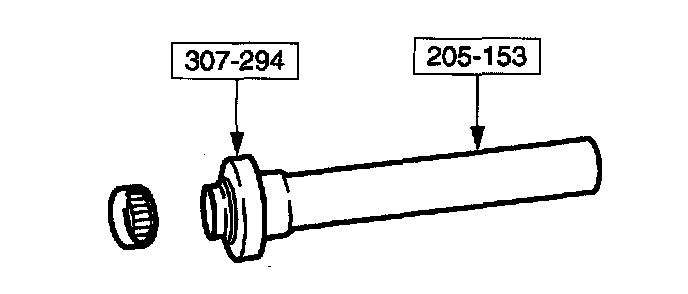

1. Position the No. 16 reverse/overdrive ring gear bearing on the special tools.

1. Position the bearing with the part number facing toward the handle of the special tool.

Note: The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.

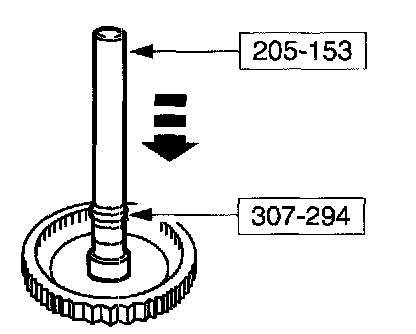

2. Using the special tools, install the No. 16 reverse/overdrive ring gear bearing.

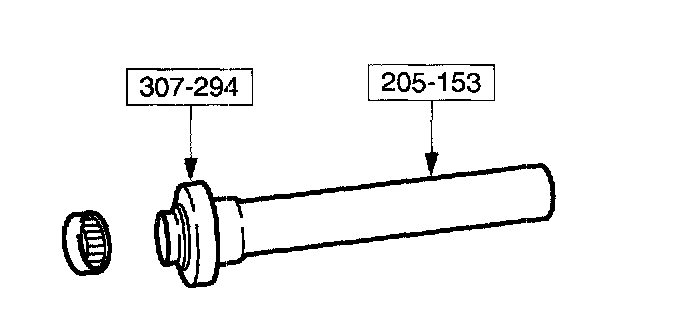

3. Position the No. 17 stator support bearing on the special tools.
1. Position the bearing with the part number facing toward the handle of the special tool.

Note: The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.

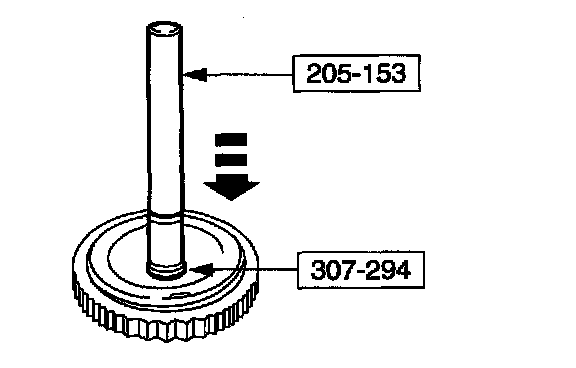

4. Using the special tools, install the No. 17 stator support bearing into the stator support sprocket.
