Transaxle Support Insulator-LH

TRANSAXLE SUPPORT INSULATOR-LH
Removal

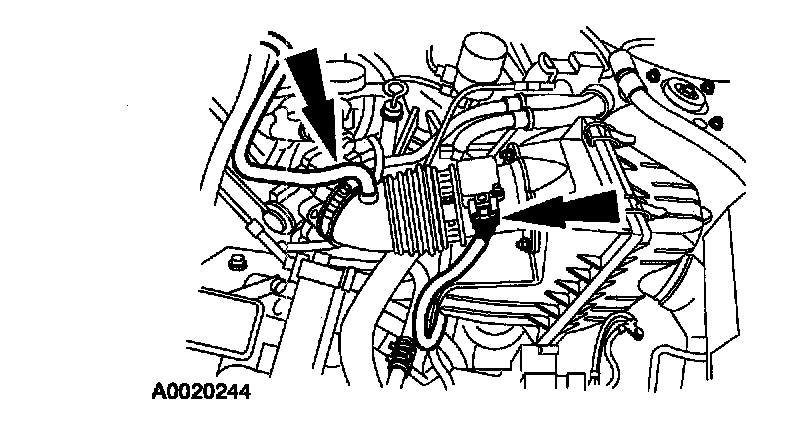

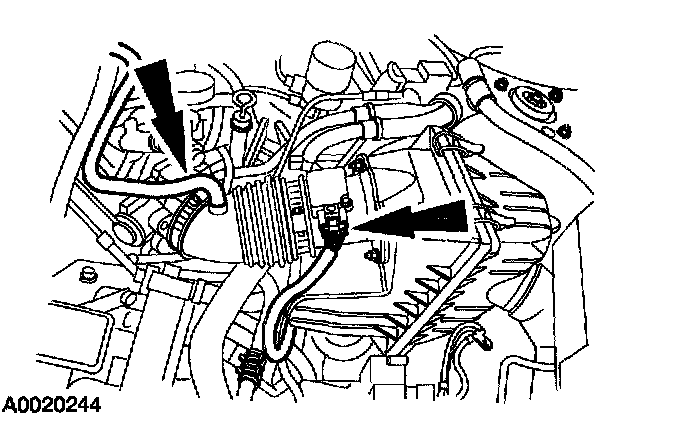

1. Disconnect the breather tube and Mass Air Flow (MAF) sensor.

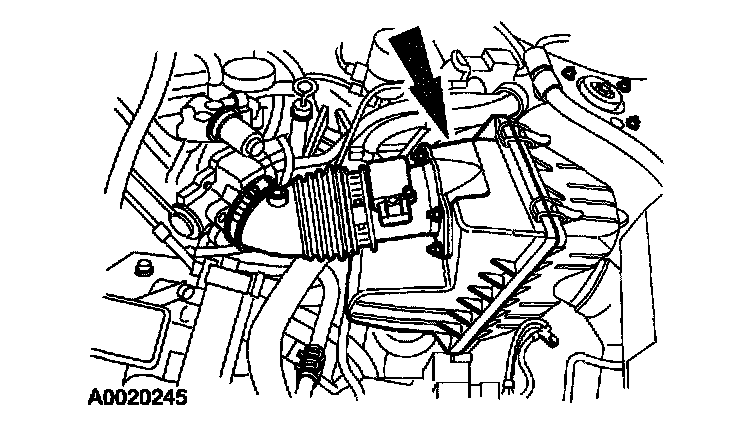

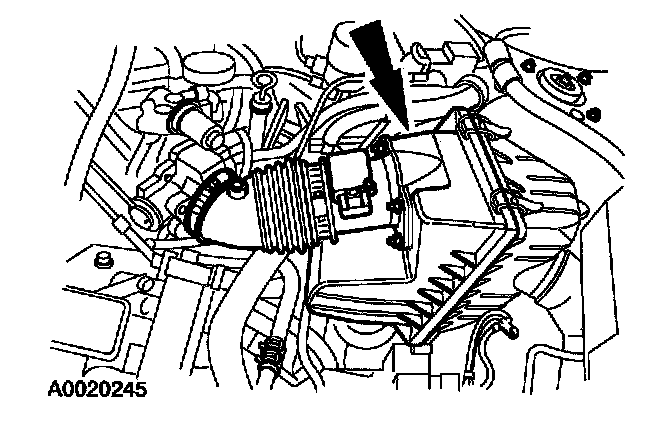

2. Remove the intake tube and air cleaner cover.

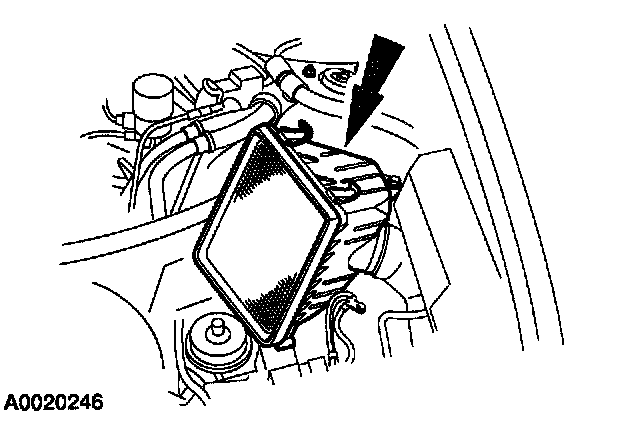

3. Remove the air cleaner assembly.

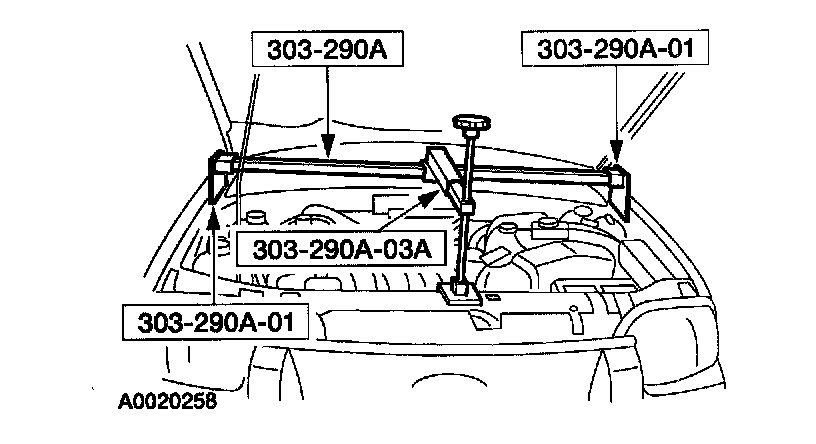

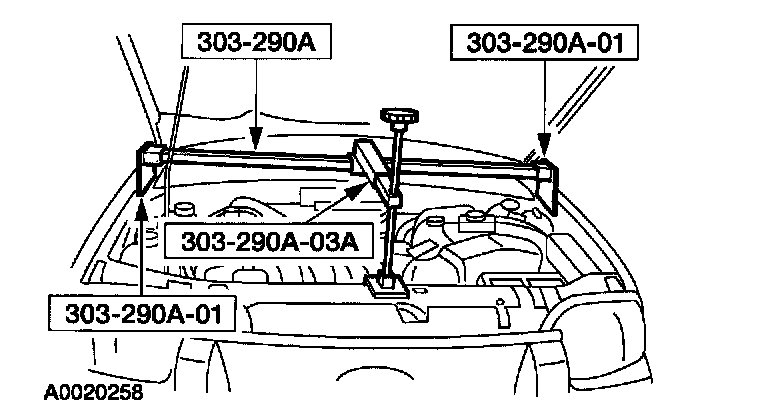

4. Install the special tools.

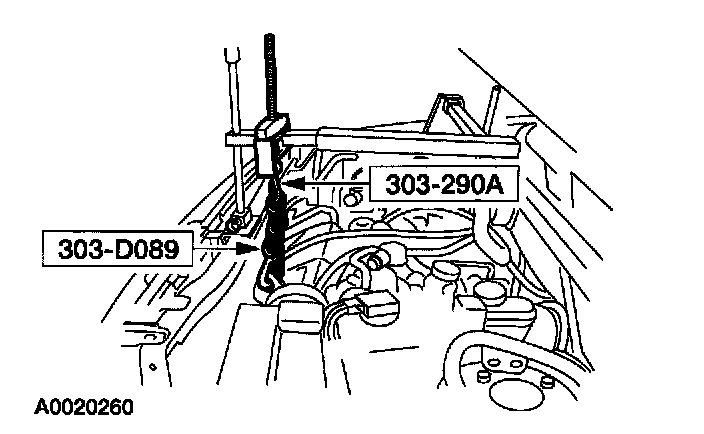

5. Install the special tools.

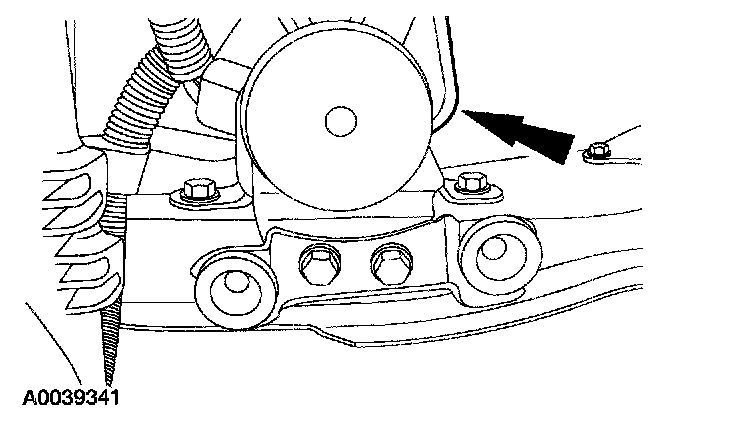

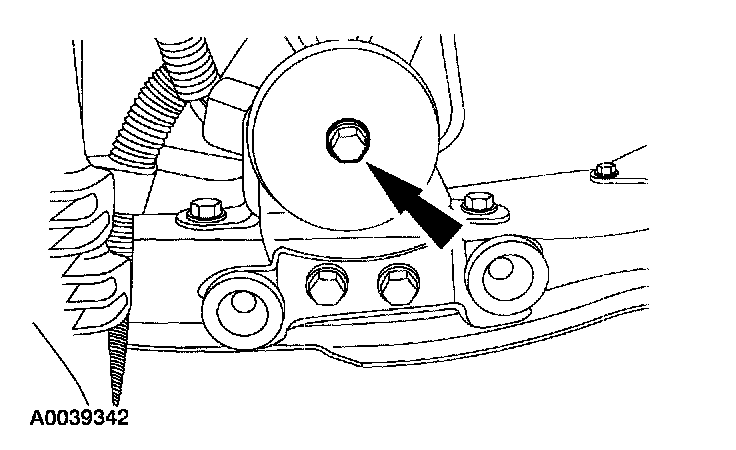

6. Remove the upper transaxle mount bolt.





7. Remove the upper transaxle insulator.

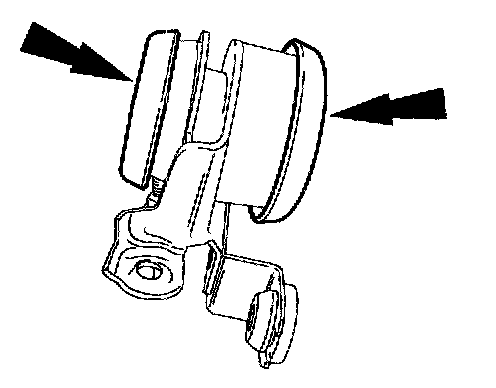

8. Remove the top and bottom mount cups.

Installation

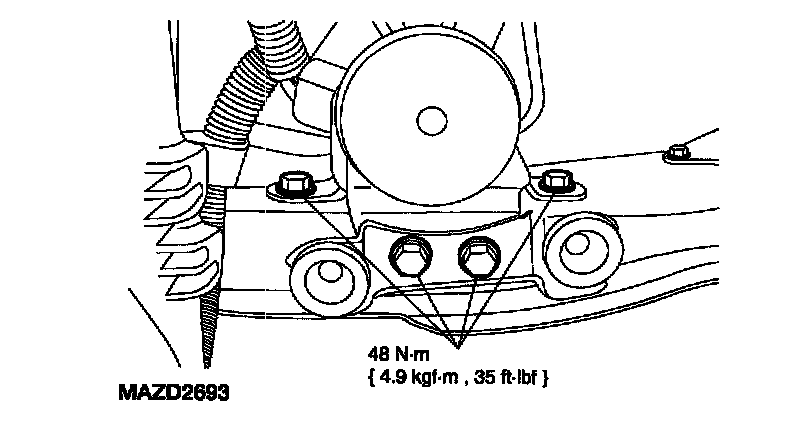

1. Install the top and bottom mount cups.





2. Install the upper transaxle insulator.

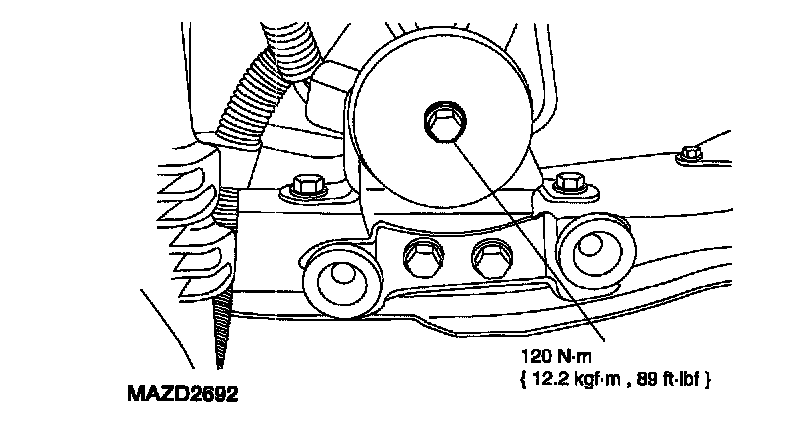

3. Install the upper transaxle bolt.





4. Remove the special tool.





5. Remove the special tool.

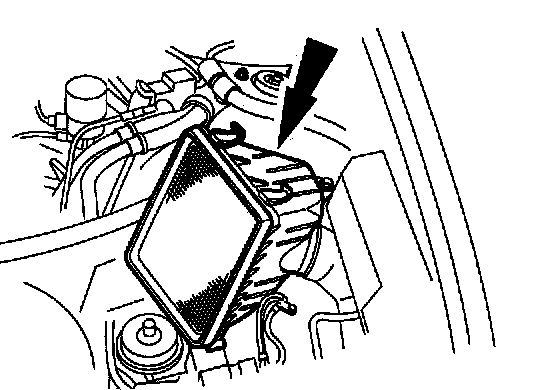

6. Install the air cleaner assembly.





7. Install the intake tube and air cleaner cover.





8. Connect the breather tube and Mass Air Flow (MAF) sensor.
