Differential Assembly: Tools and Equipment

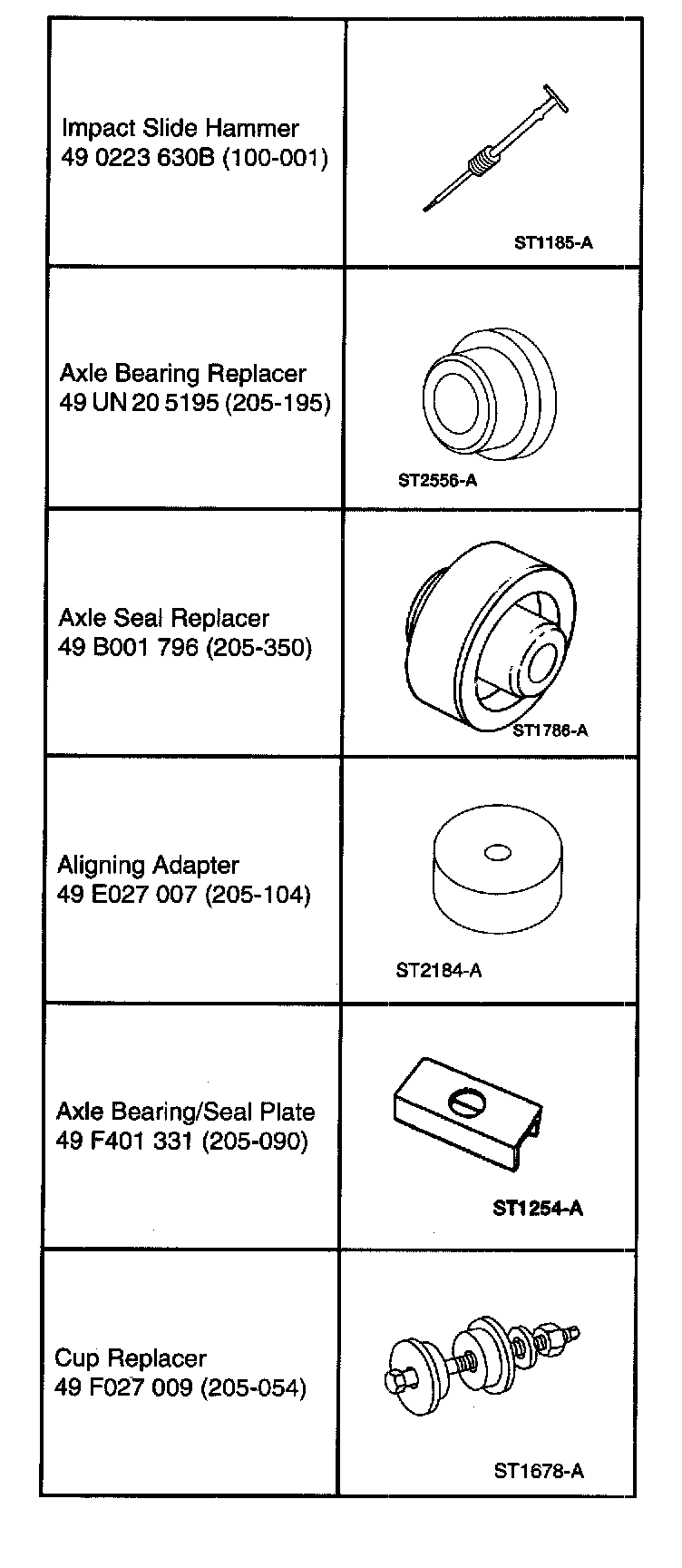

SPECIAL TOOLS

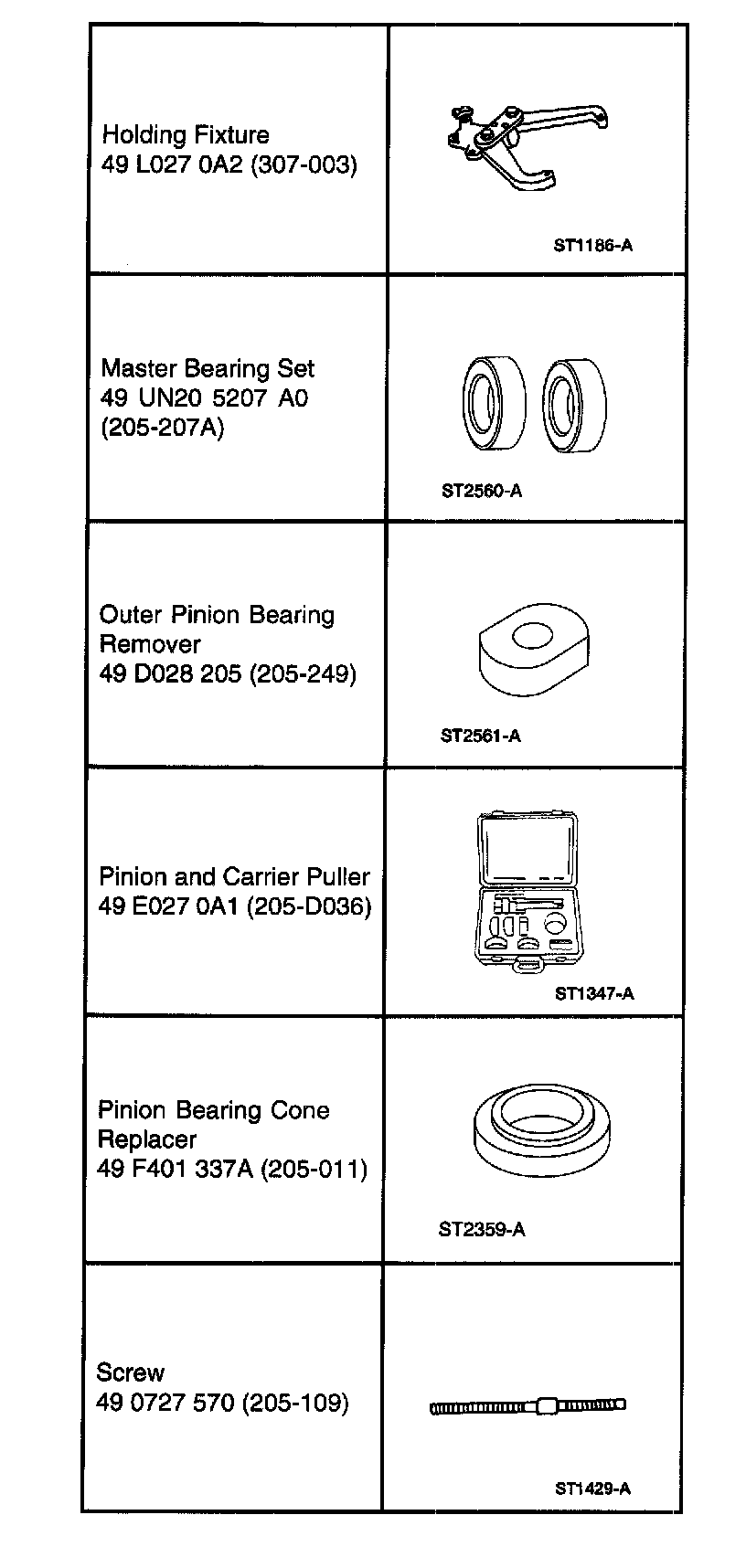

1 of 9

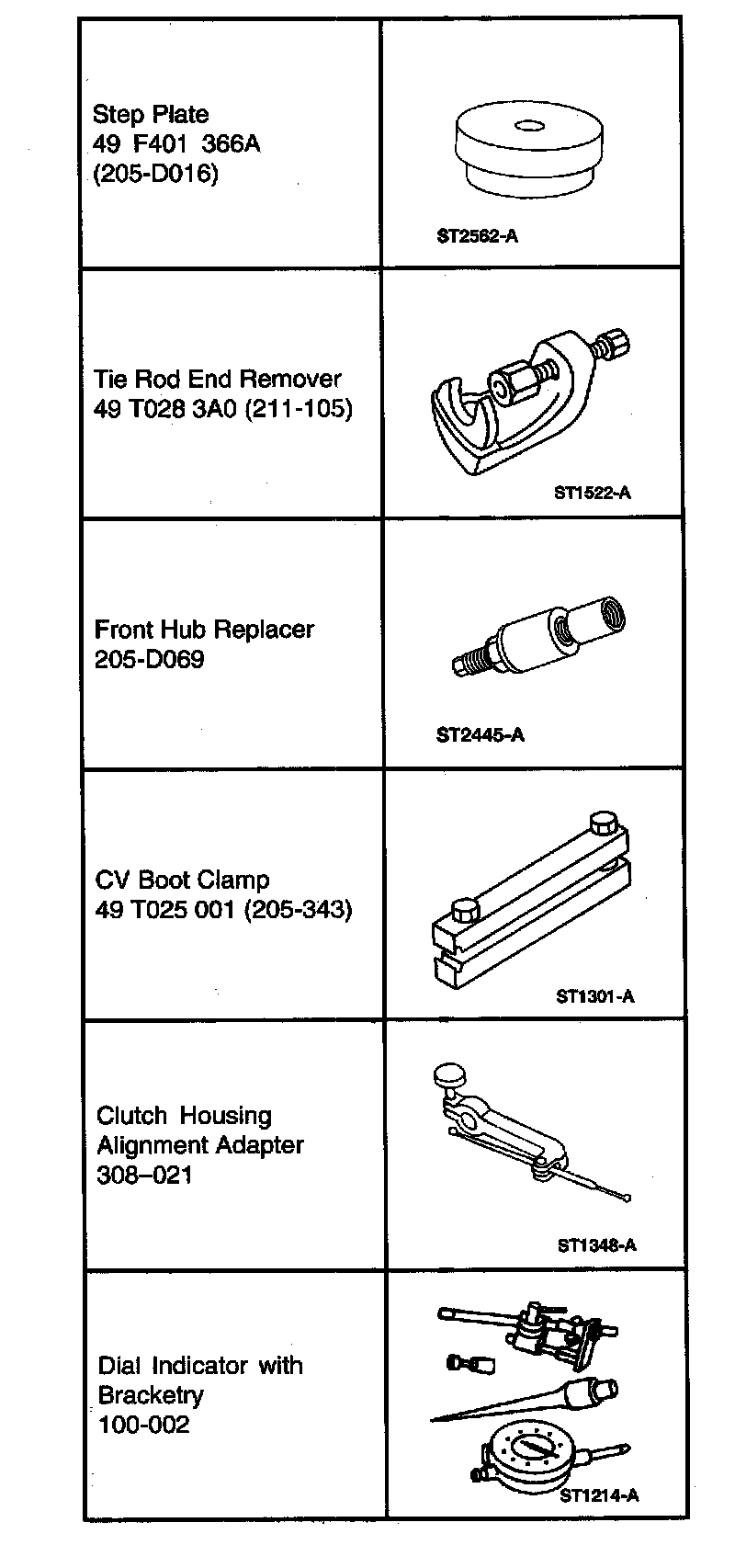

2 of 9

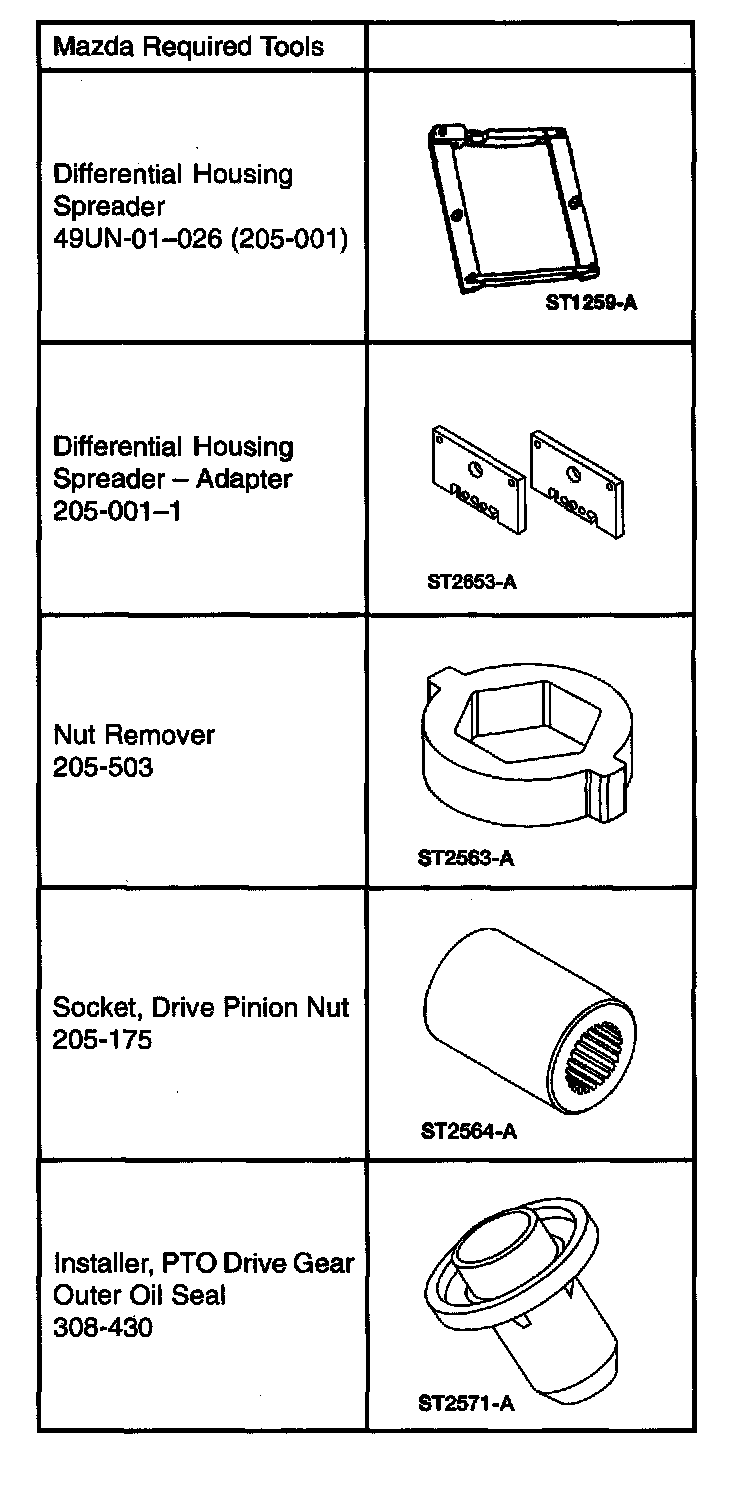

3 of 9

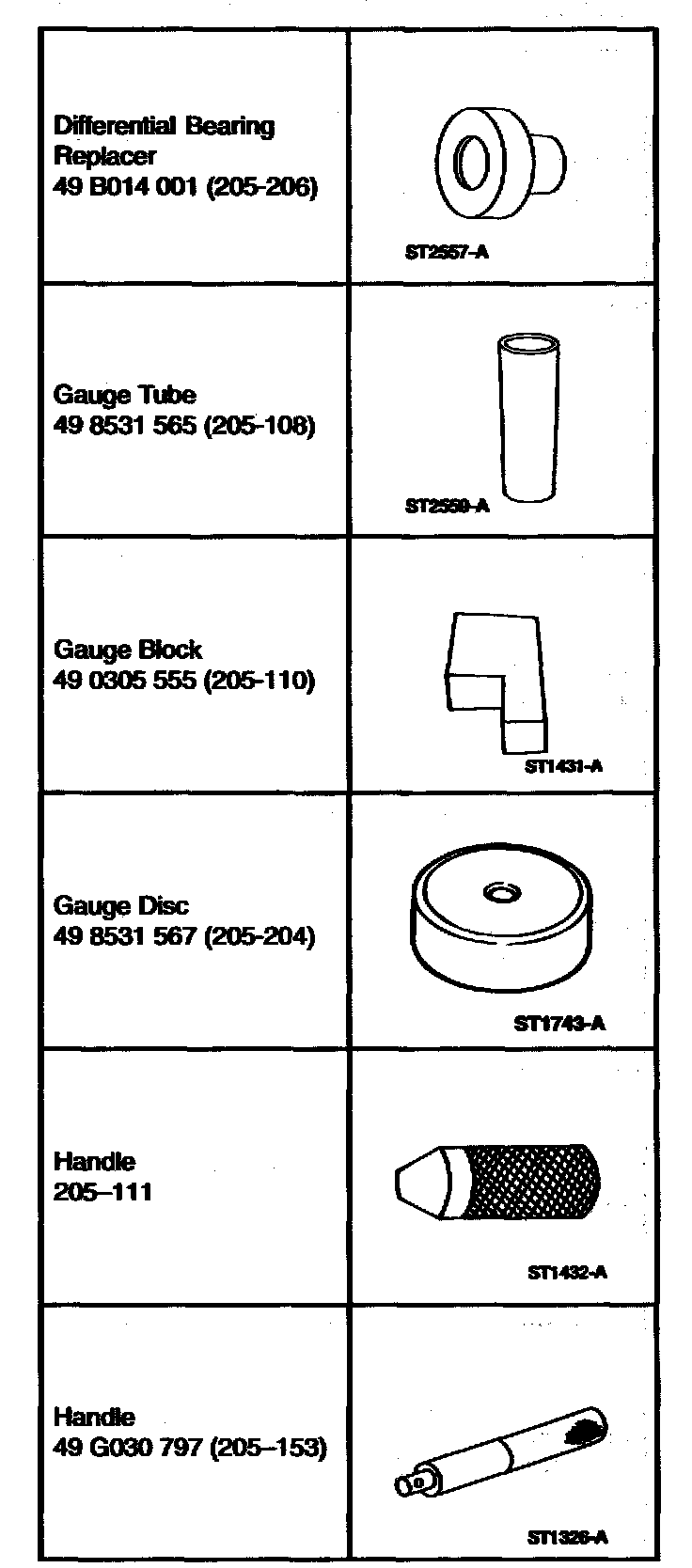

4 of 9

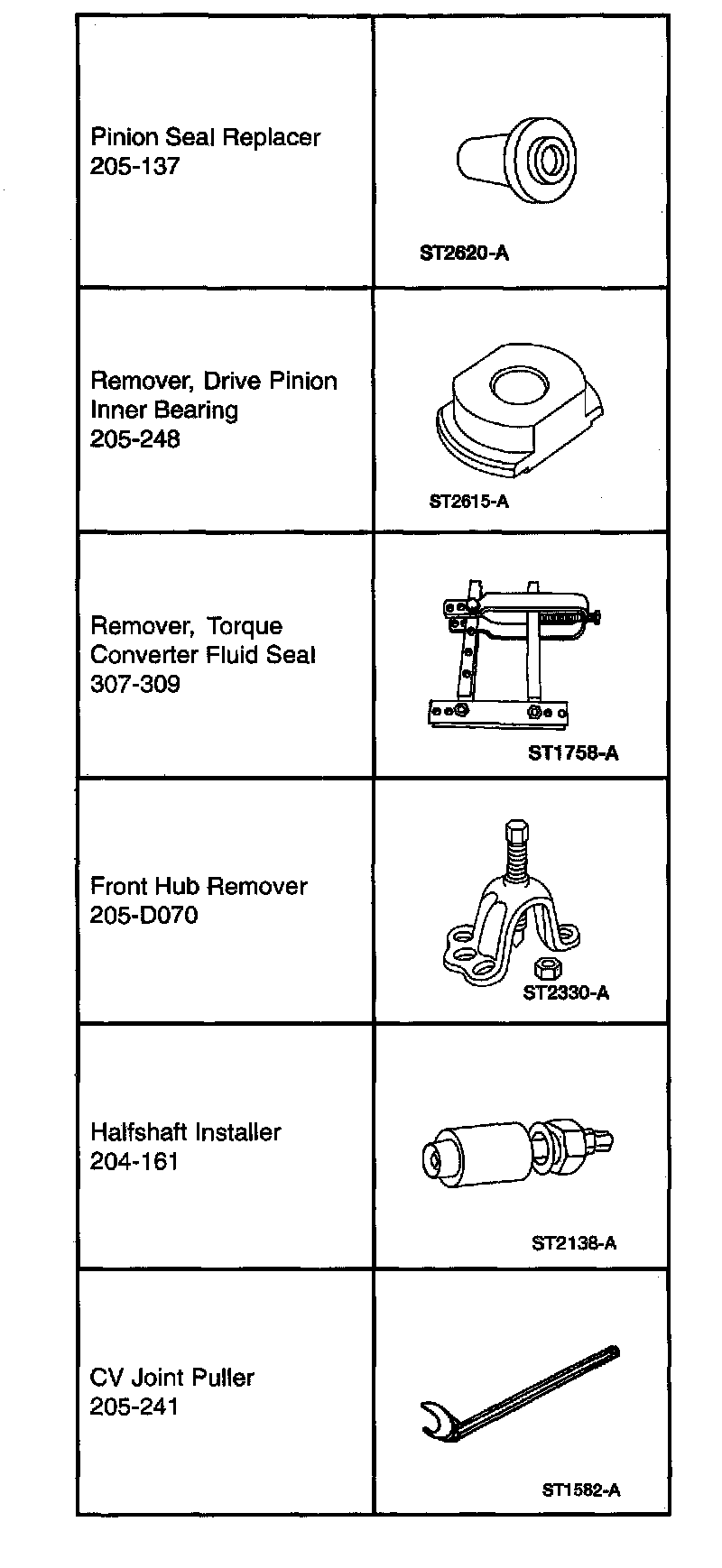

5 of 9

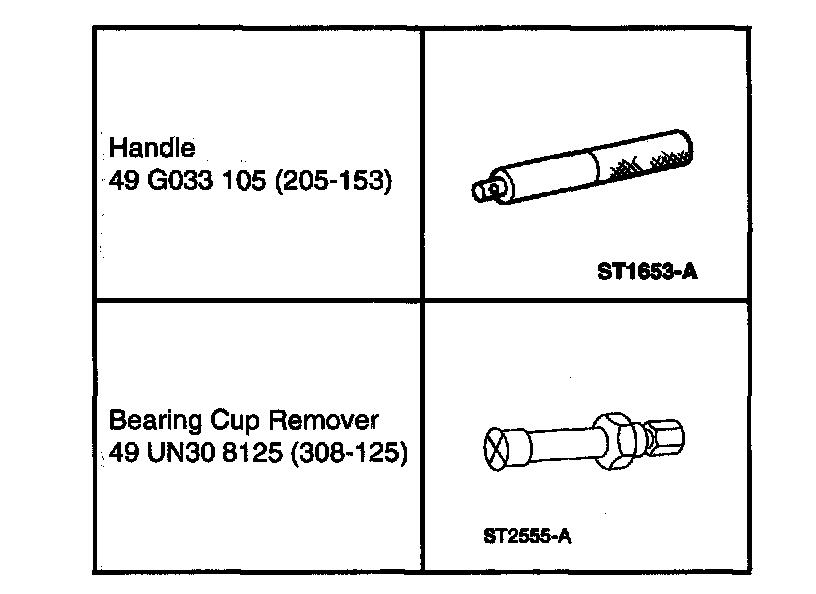

6 of 9

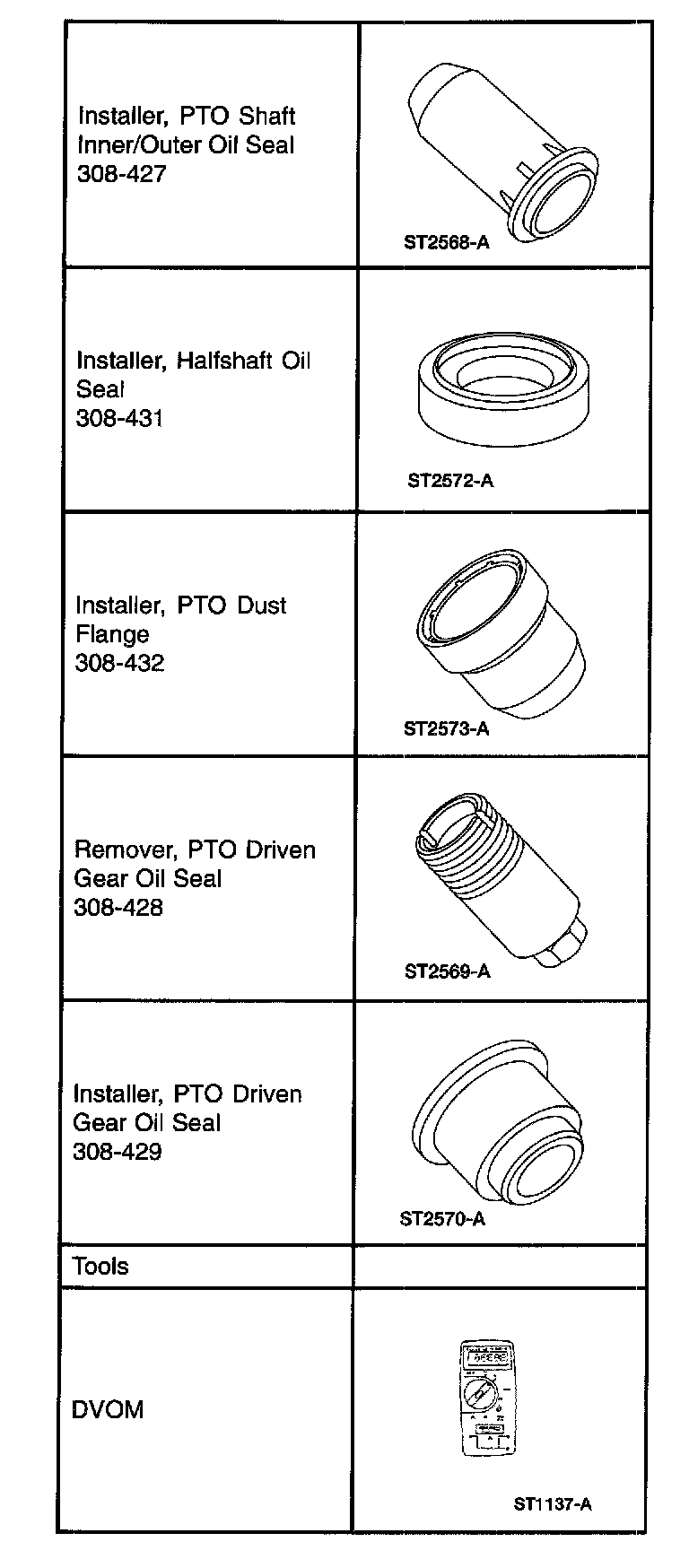

7 of 9

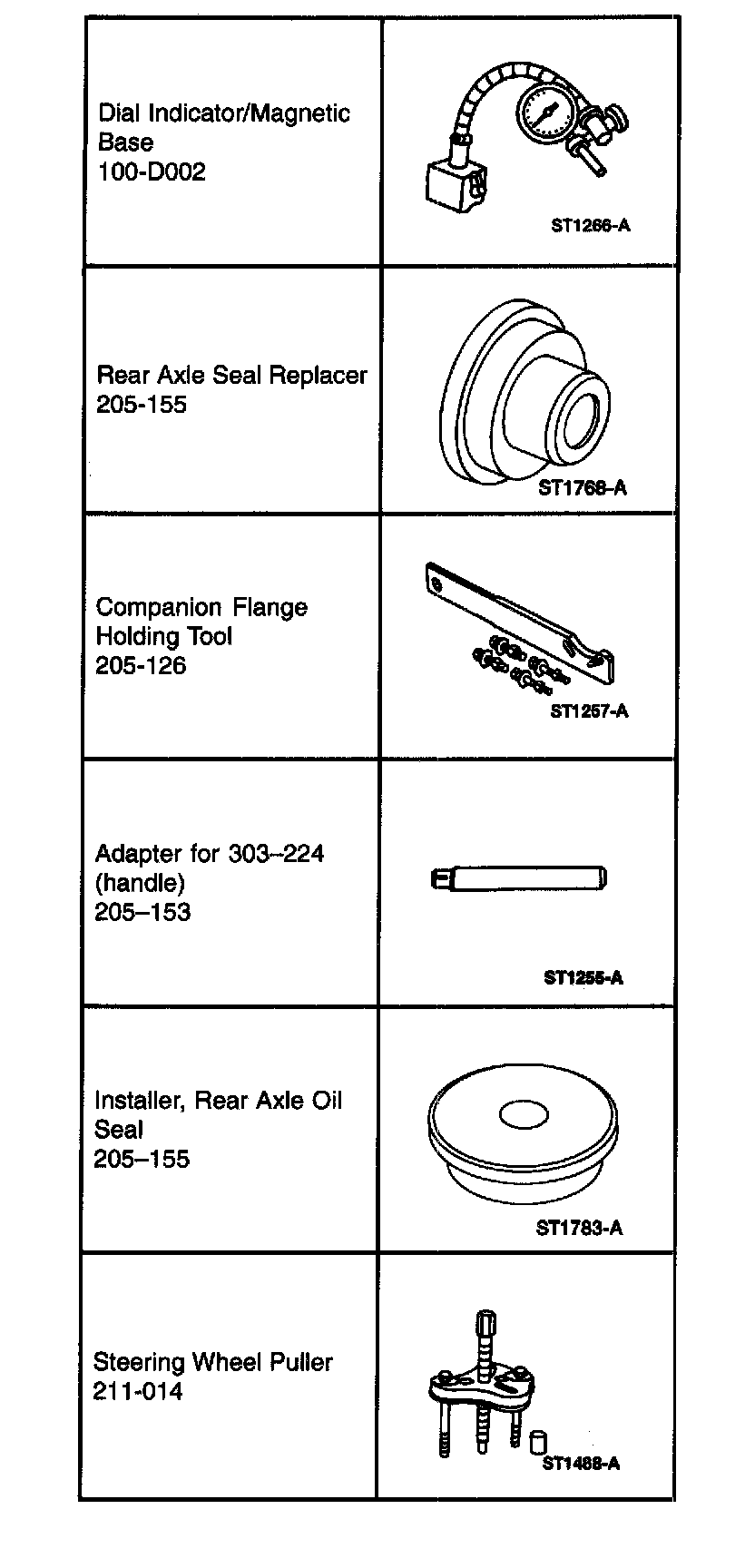

8 of 9





9 of 9
