Home >> Mazda >> 2002 >> Tribute DX 2WD L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Locations

Manual Transmission/Transaxle: Locations

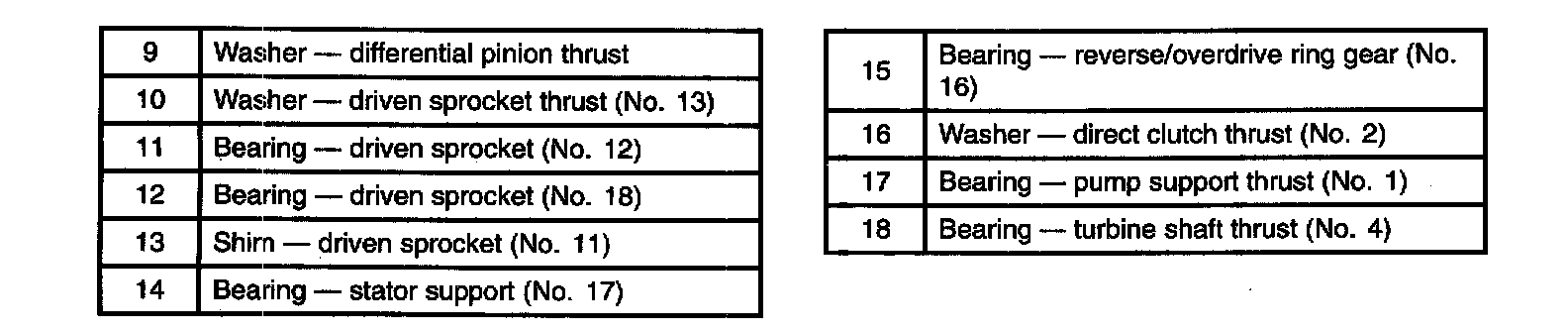

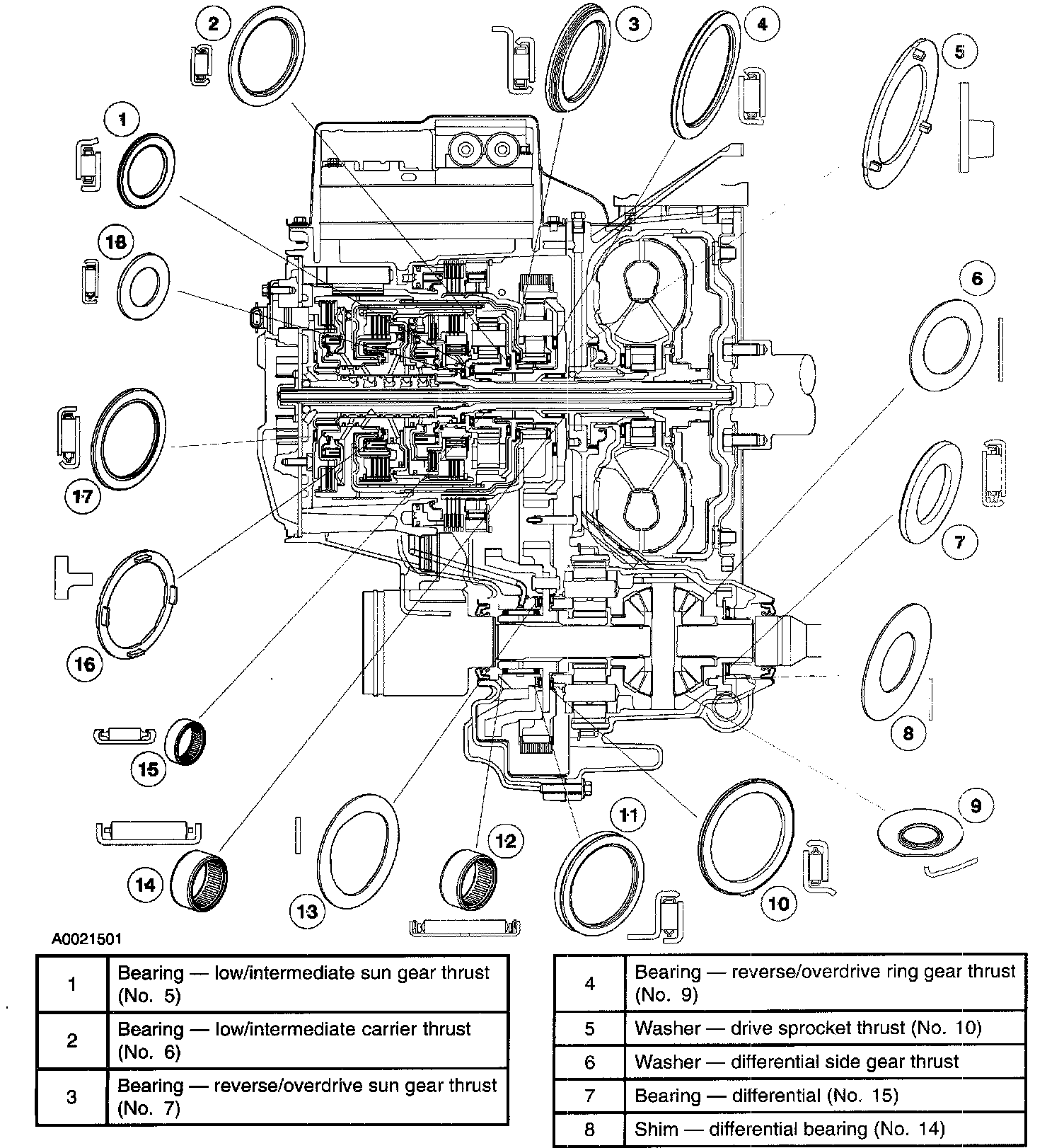

BUSHINGS, BEARING AND THRUST WASHER LOCATOR
