Pinpoint Test 1:Shift Interlock System Does Not Release

PINPOINT TEST 1: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY

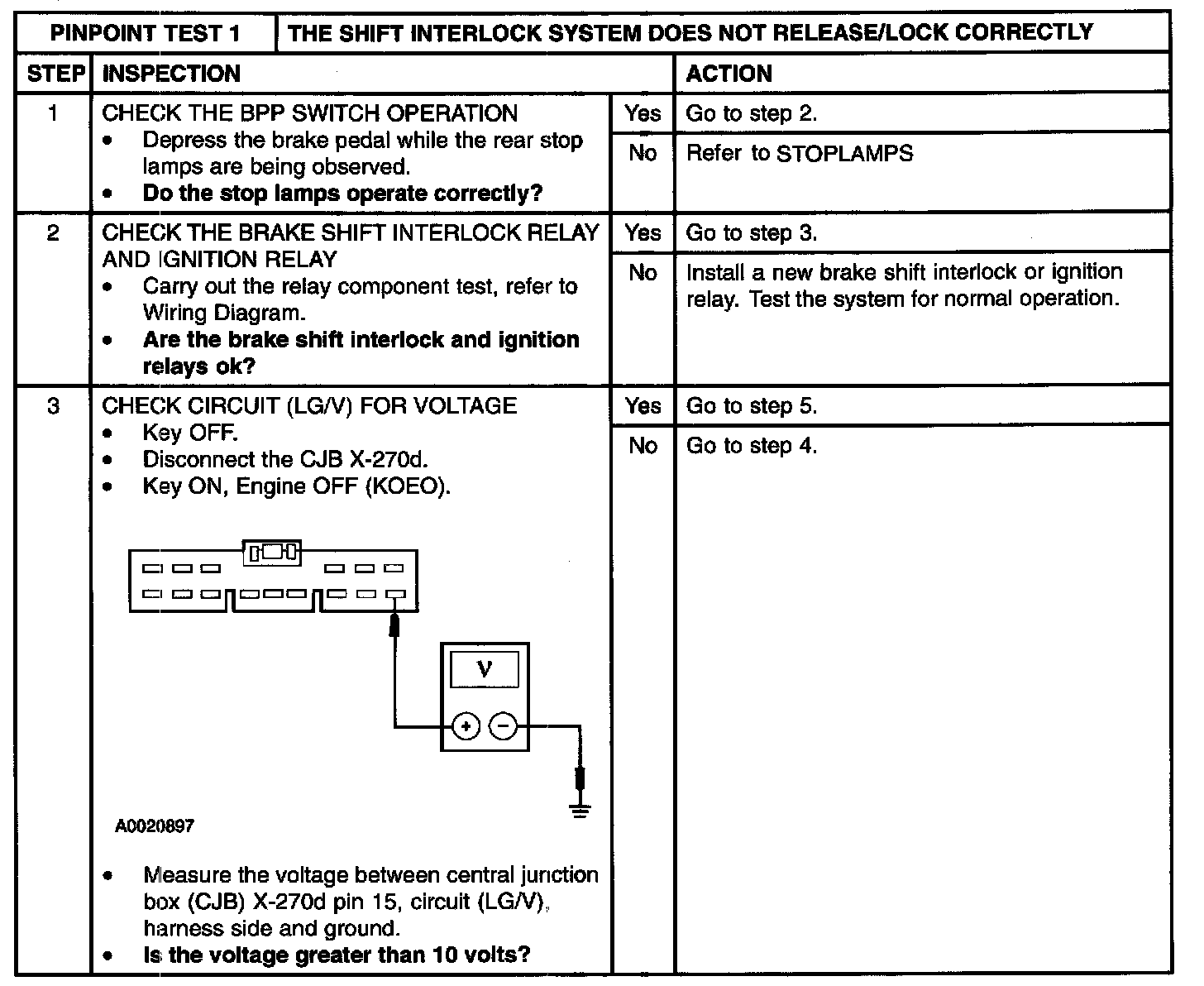

1 of 8

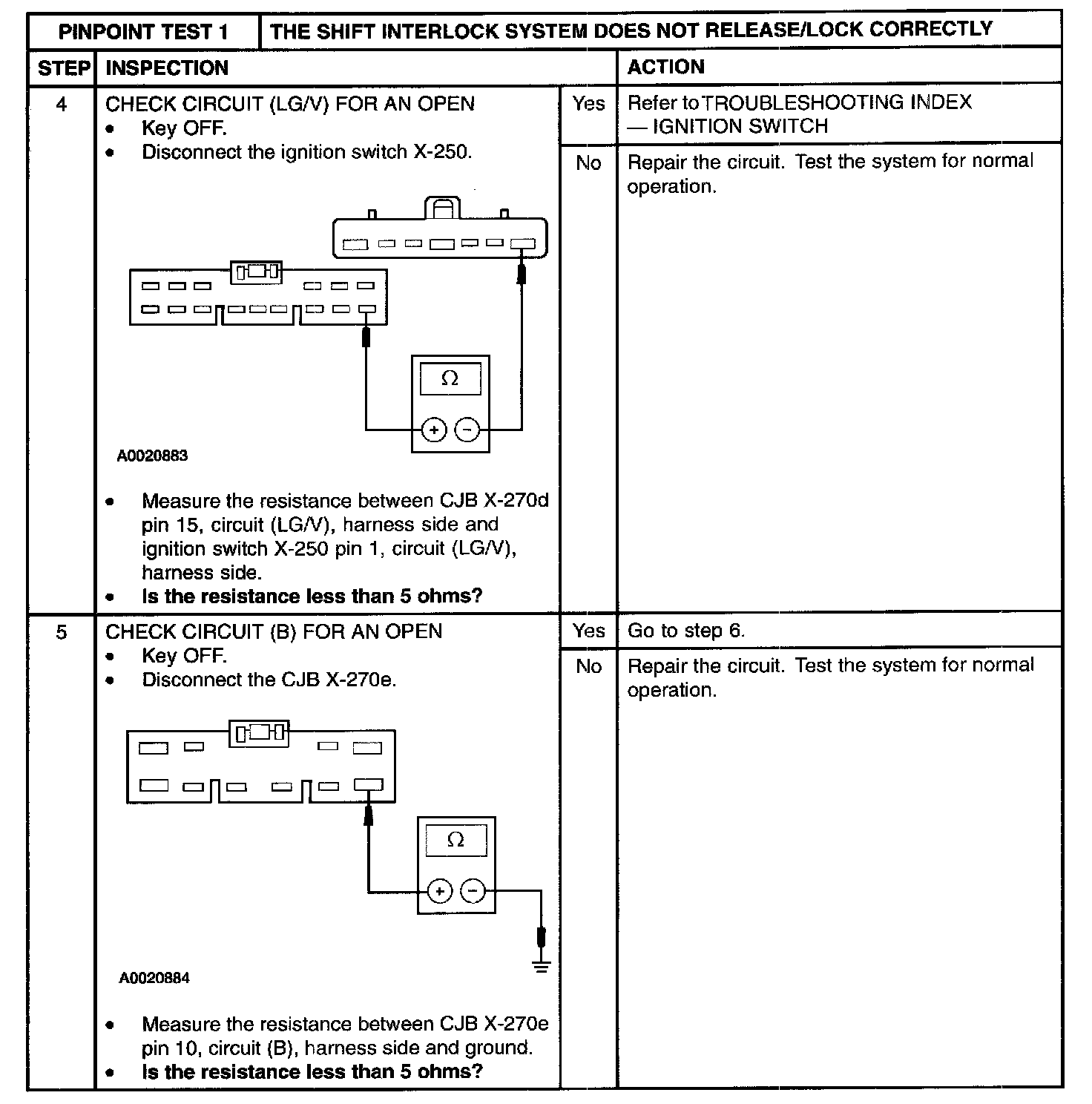

2 of 8

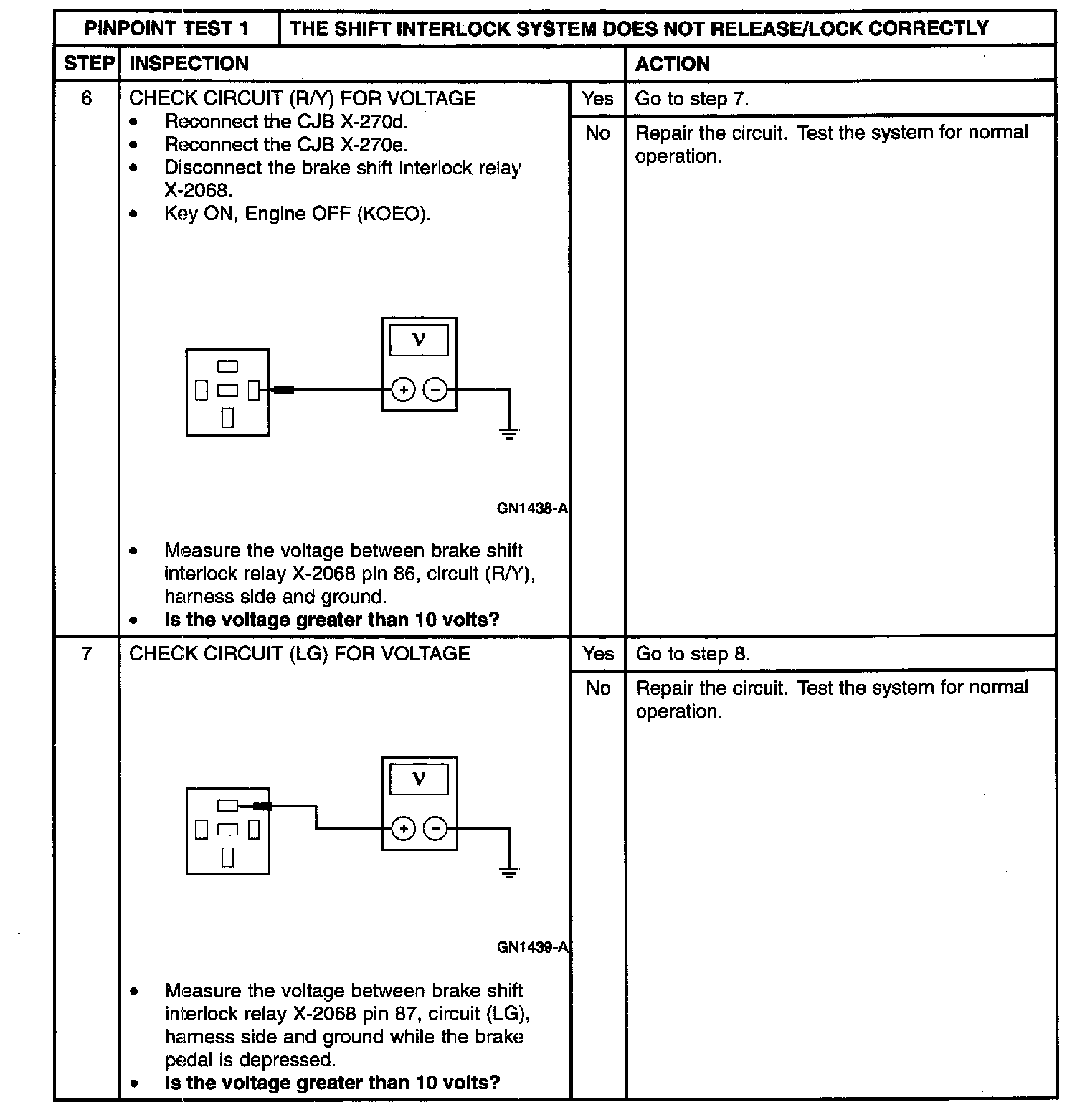

3 of 8

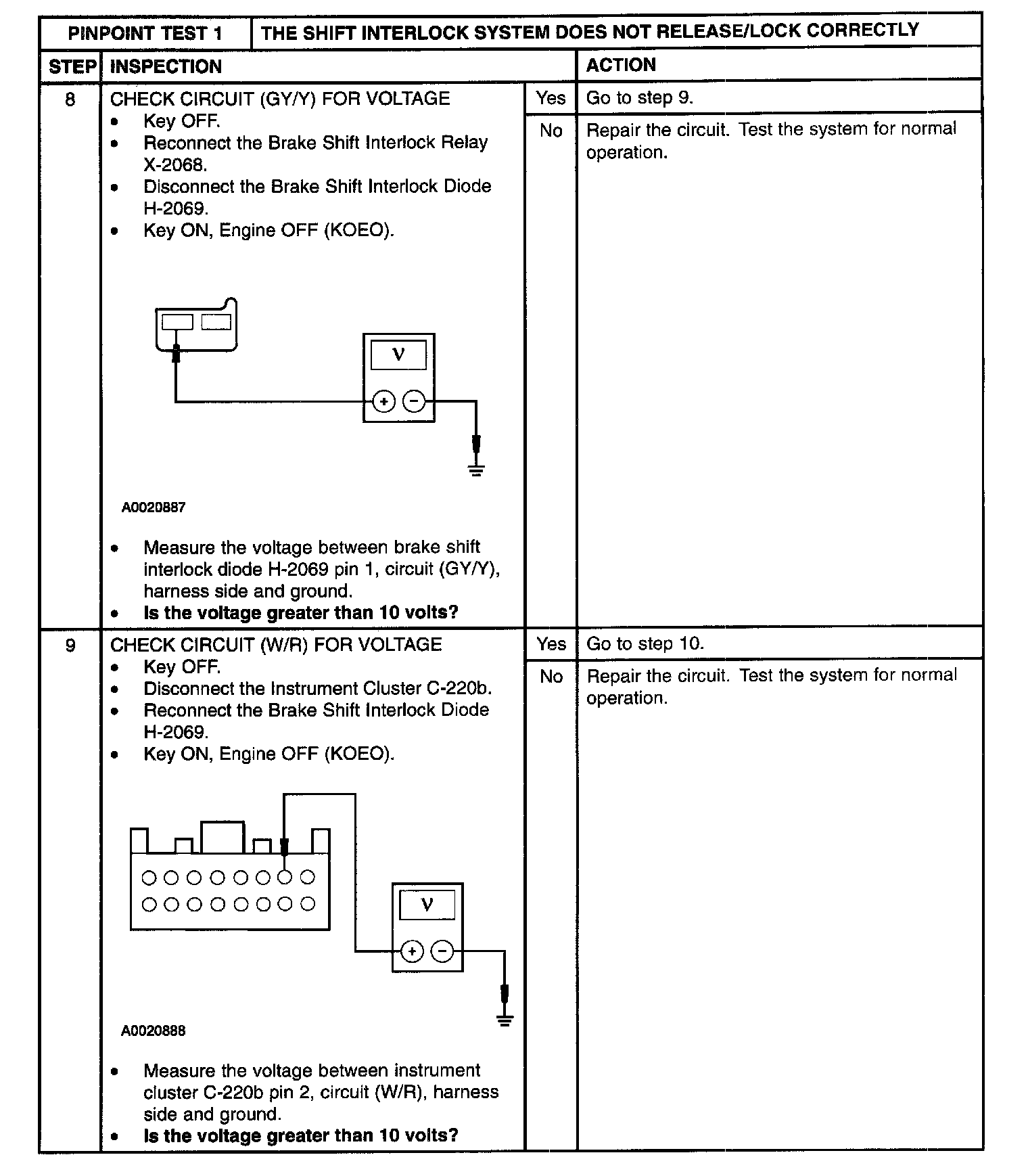

4 of 8

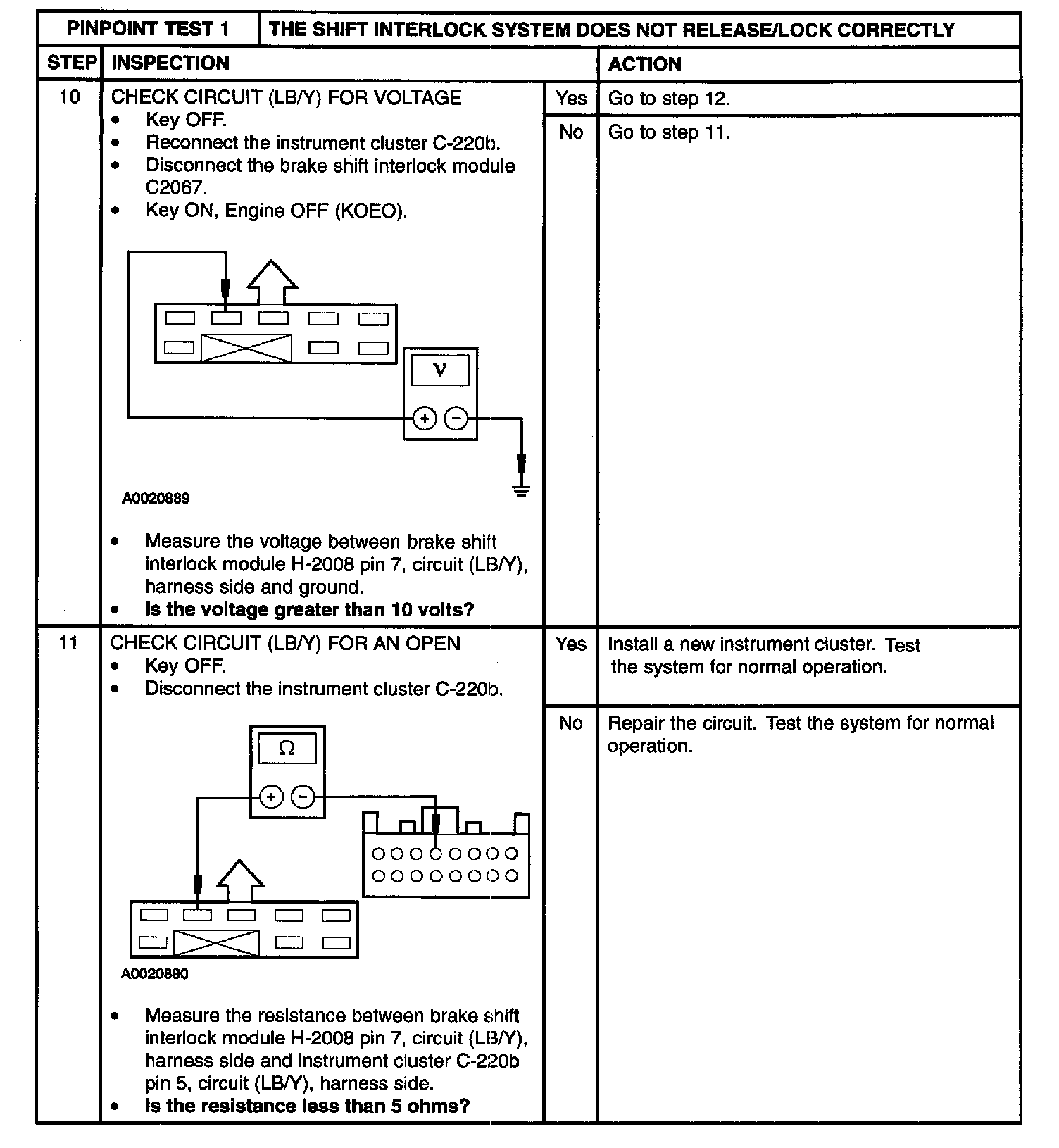

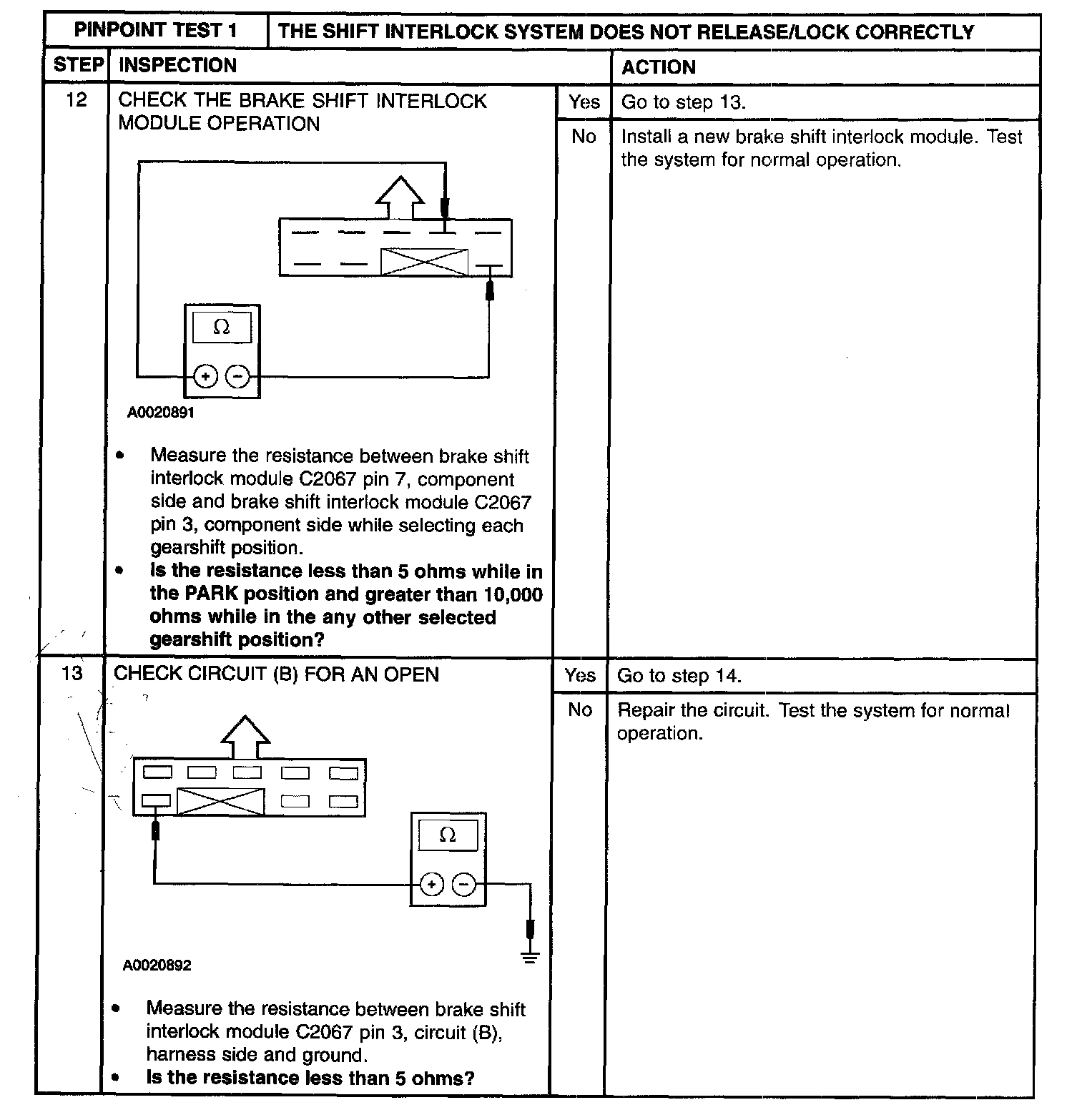

5 of 8

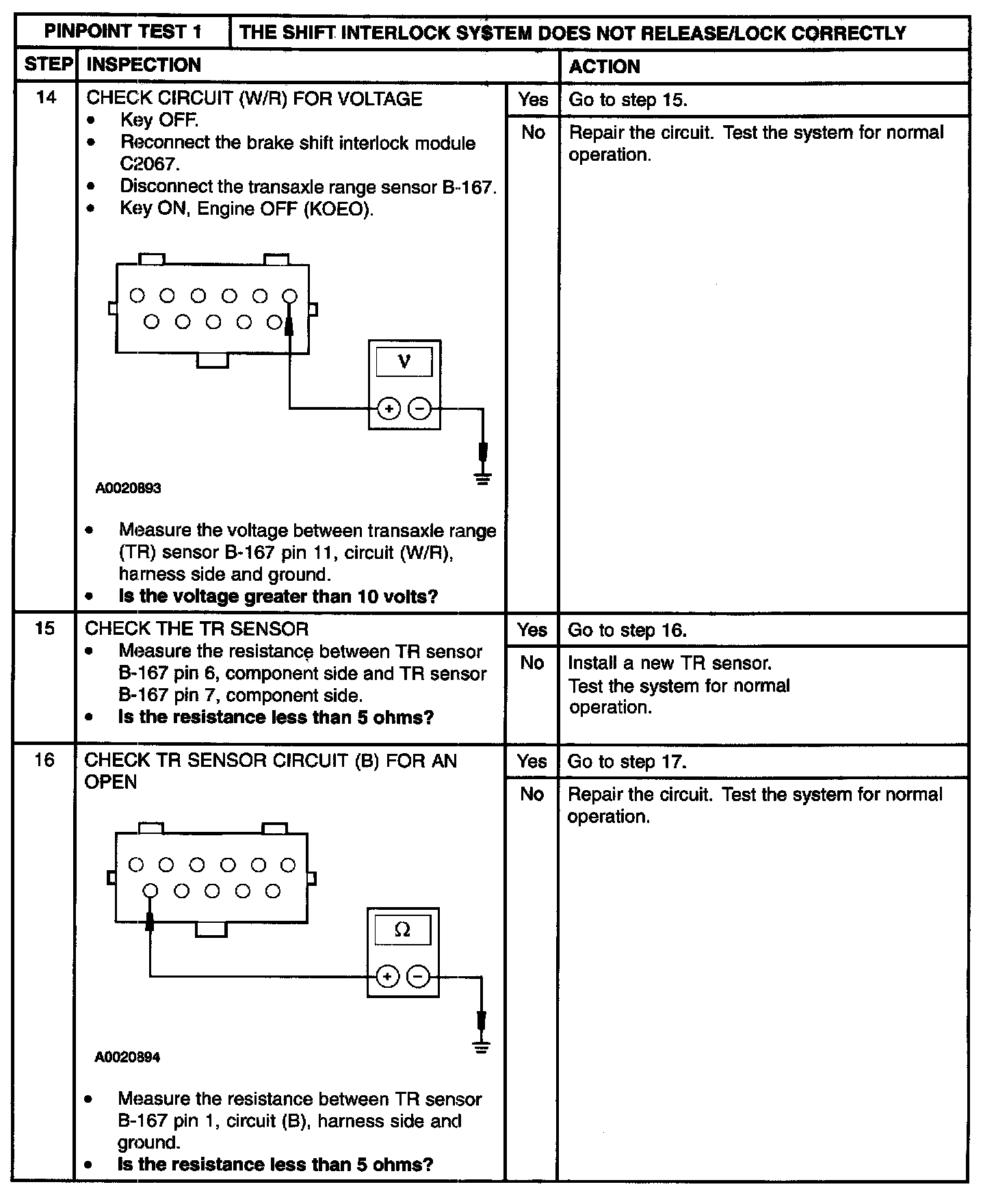

6 of 8





7 of 8





8 of 8
