Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2002
>>
Tribute DX 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Locations
>>
Connector Locations
Connector Locations
D-a - Interval Wiper/Washer Circuit:

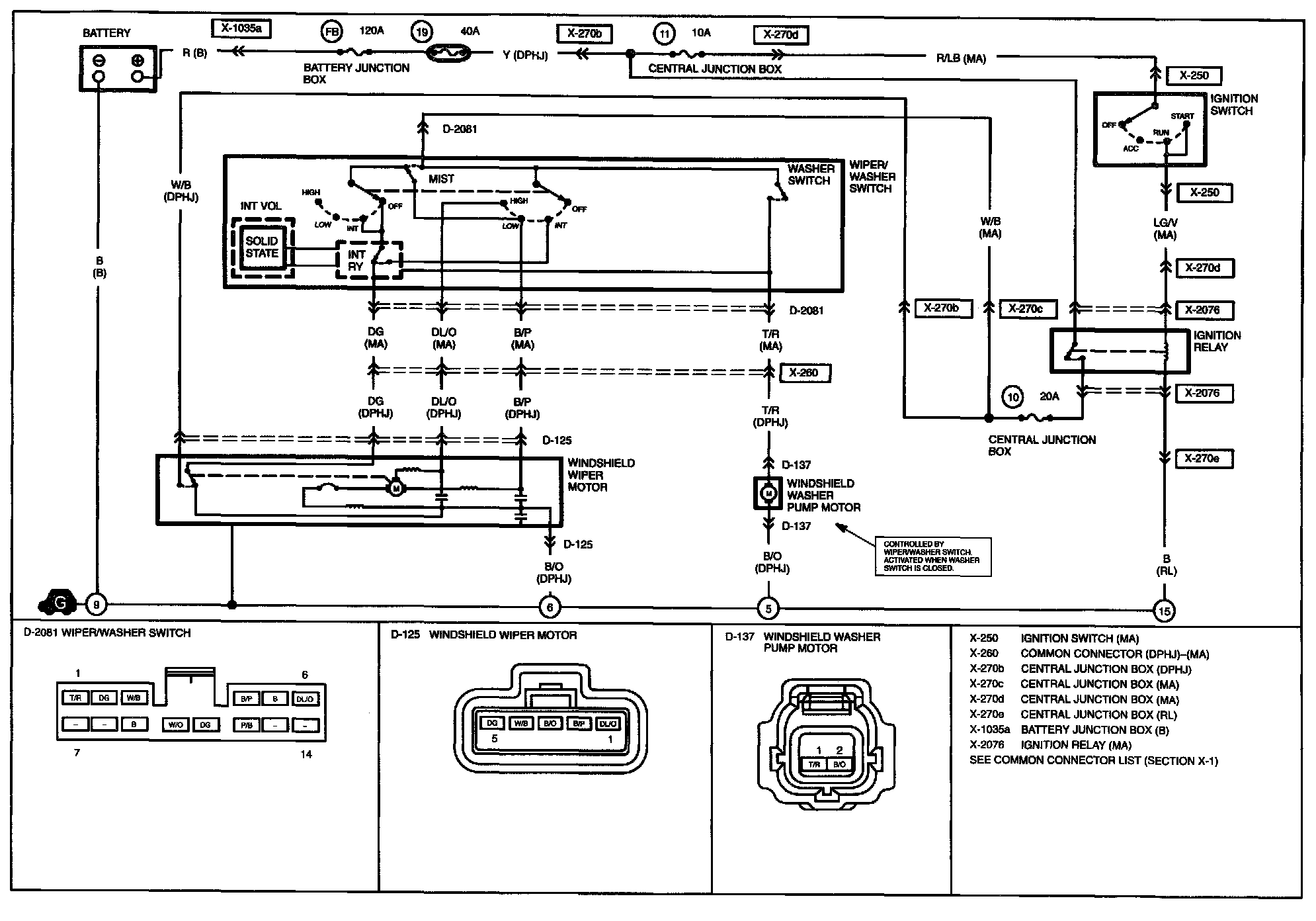

D-b - Interval Wiper/Washer Circuit:
