EGR Valve: Service and Repair

Removal and Installation

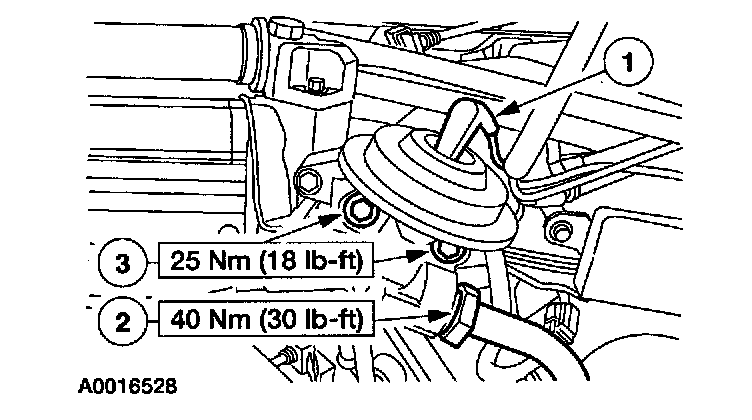

1. Remove the EGR valve.
1. Disconnect the vacuum line.
2. Disconnect the EGR tube.
3. Remove the EGR valve and discard the gasket.

NOTE: The EGR valve sealing surfaces are soft metals.

2. To install, reverse the removal procedure.
1. Carefully clean all sealing surfaces and install a new EGR valve gasket.
