Tribute LX 4WD V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Lower Engine Components

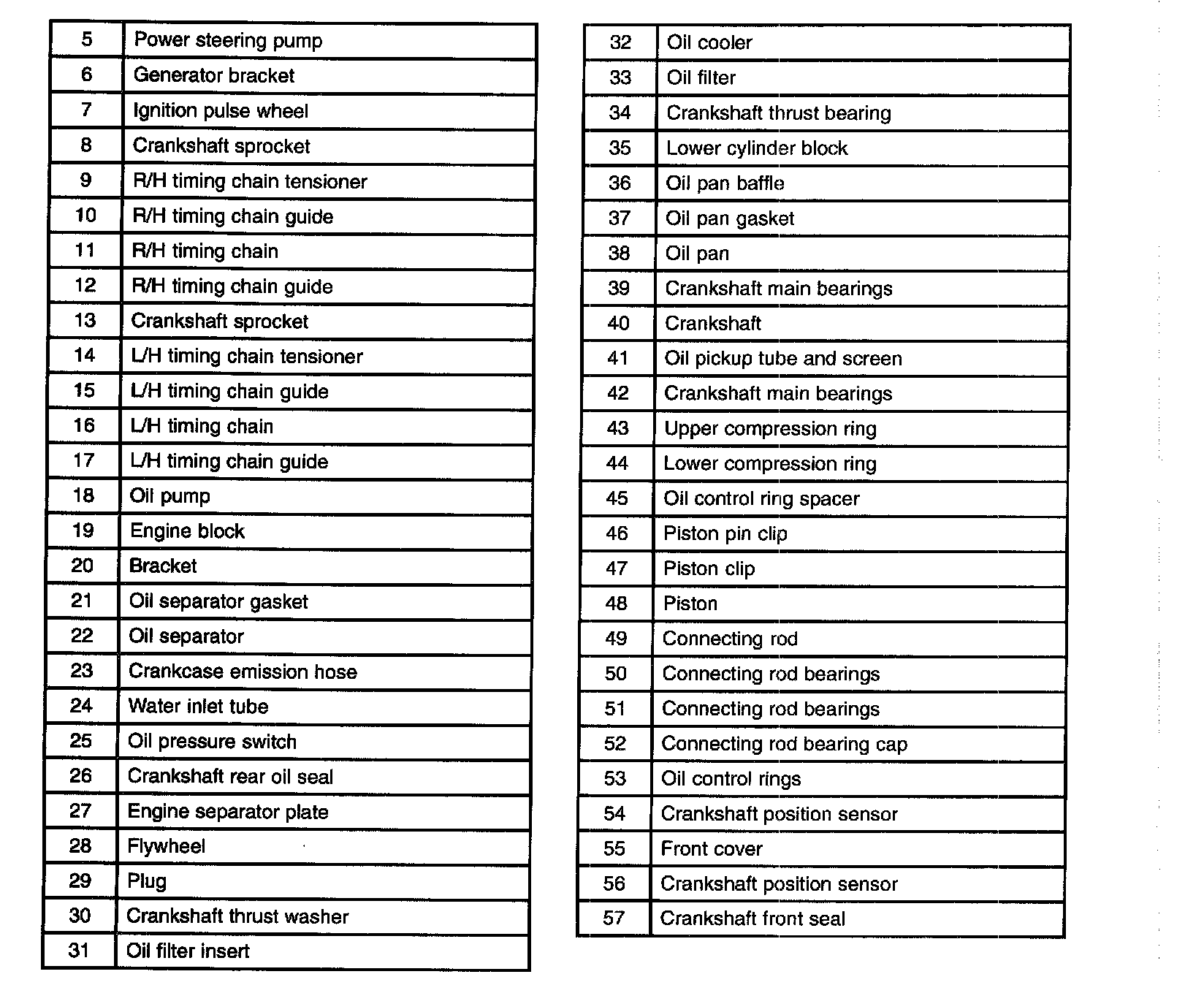

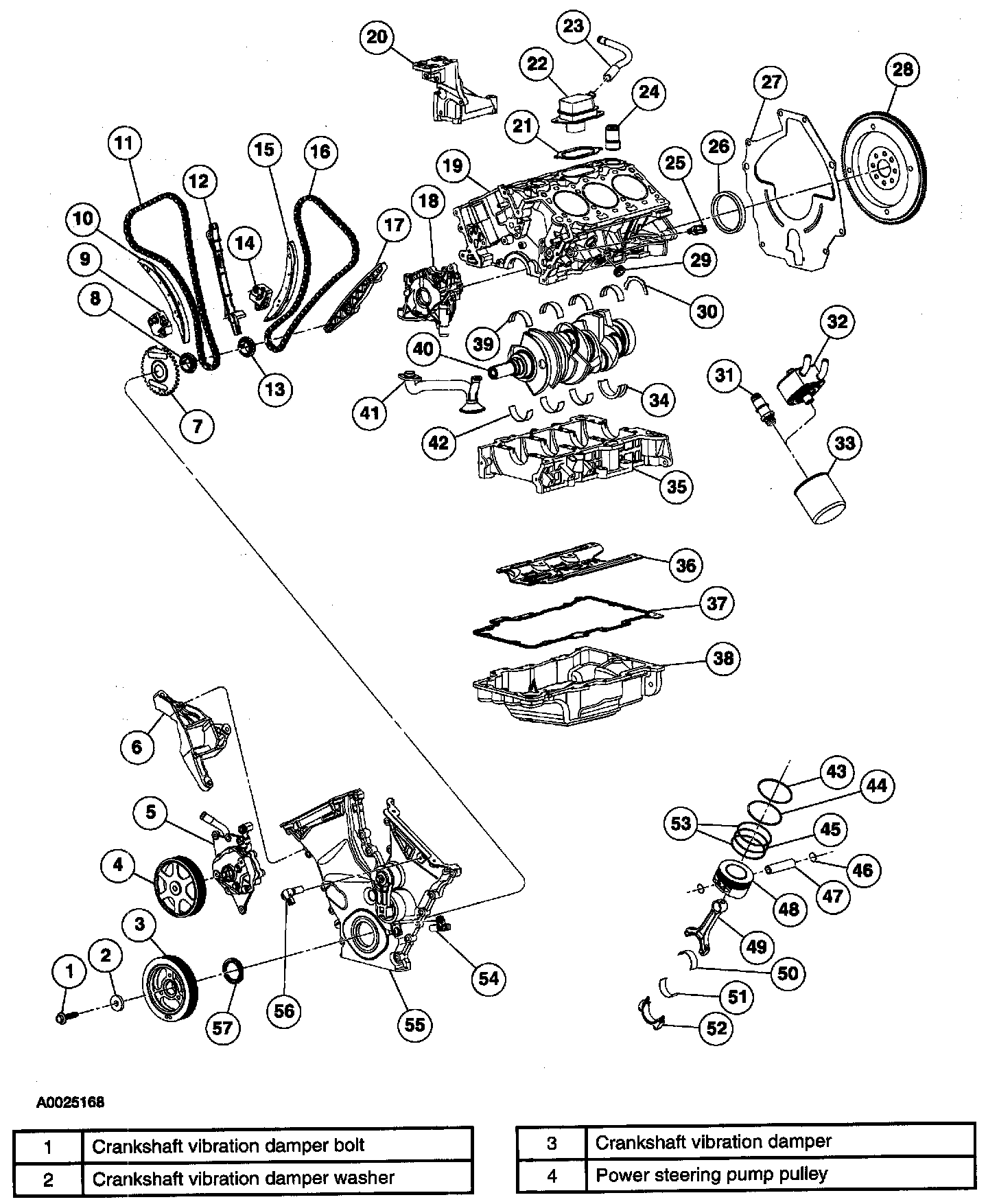

Lower Engine Components
Lower Engine Components
1 of 2
2 of 2
