Electrical System

ELECTRICAL SYSTEM

Connectors

Disconnecting connectors

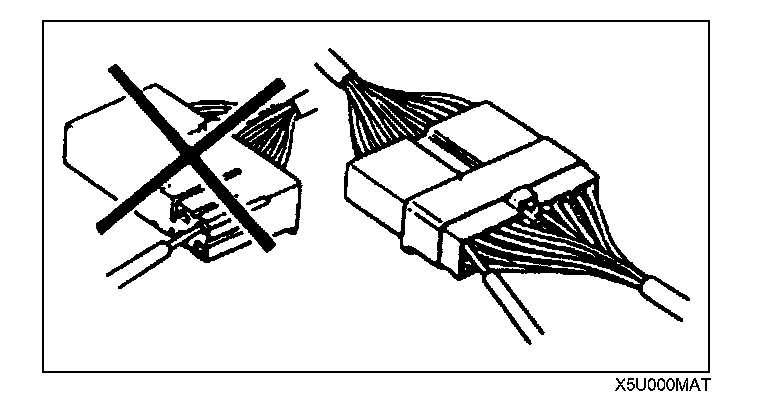

^ When disconnecting two connectors, grasp the connectors, not the wires.

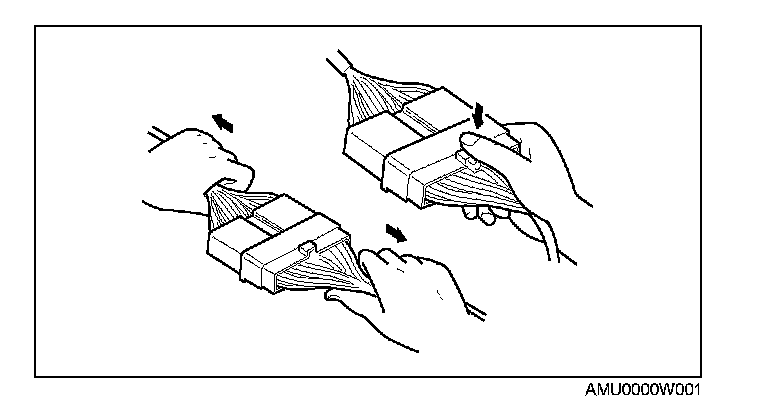

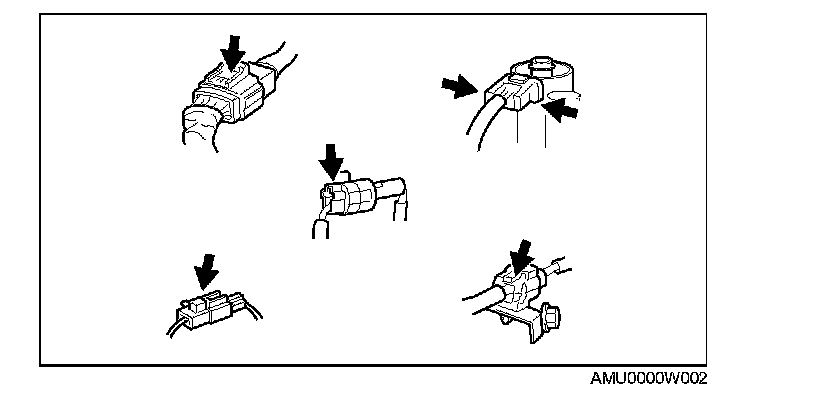

^ Connectors can be disconnected by pressing or pulling the lock lever as shown.





Locking connector

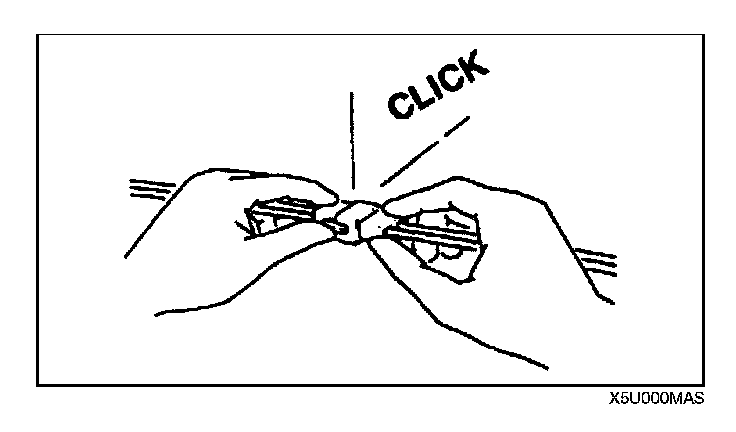

^ When locking connectors, listen for a click indicating they are securely locked.

Inspection

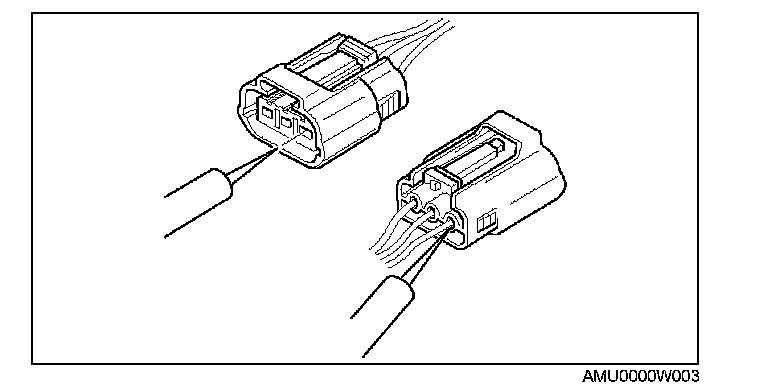

^ When a tester is used for inspecting continuity or measuring voltage, insert the tester probe from the wiring harness side.
^ Inspect the terminals of waterproof connectors from the connector side since they cannot be accessed from the wiring harness side.

Caution
^ To prevent damage to the terminal, wrap a thin wire around the lead before inserting into terminal.
