Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2002
>>
Tribute LX 4WD V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Diagram Information and Instructions
>>
Symbol Identification
>>
Harness Symbols
Harness Symbols

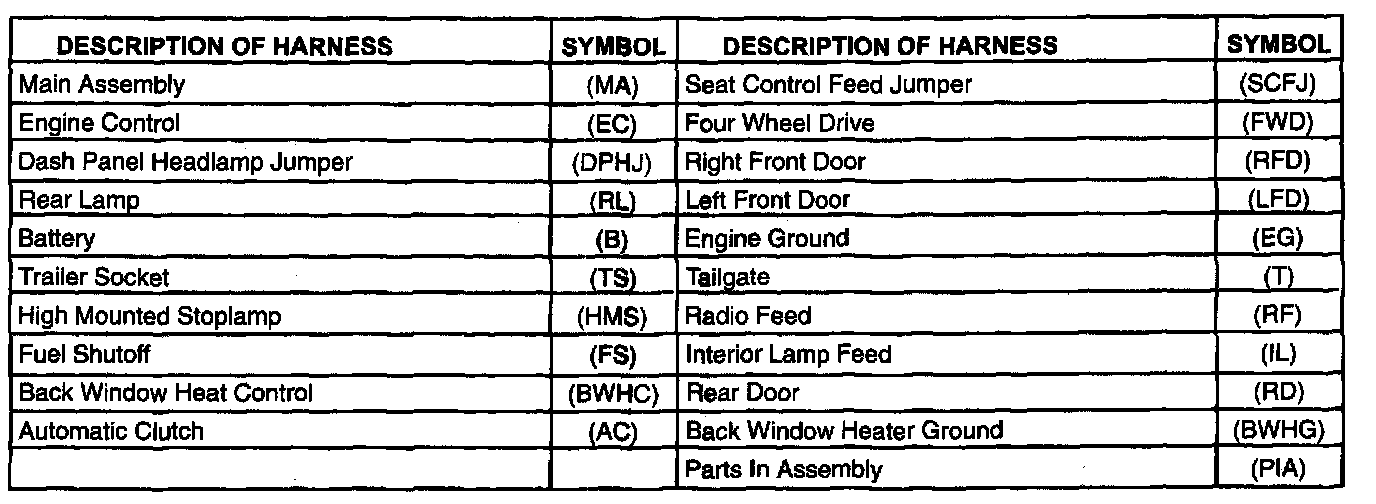

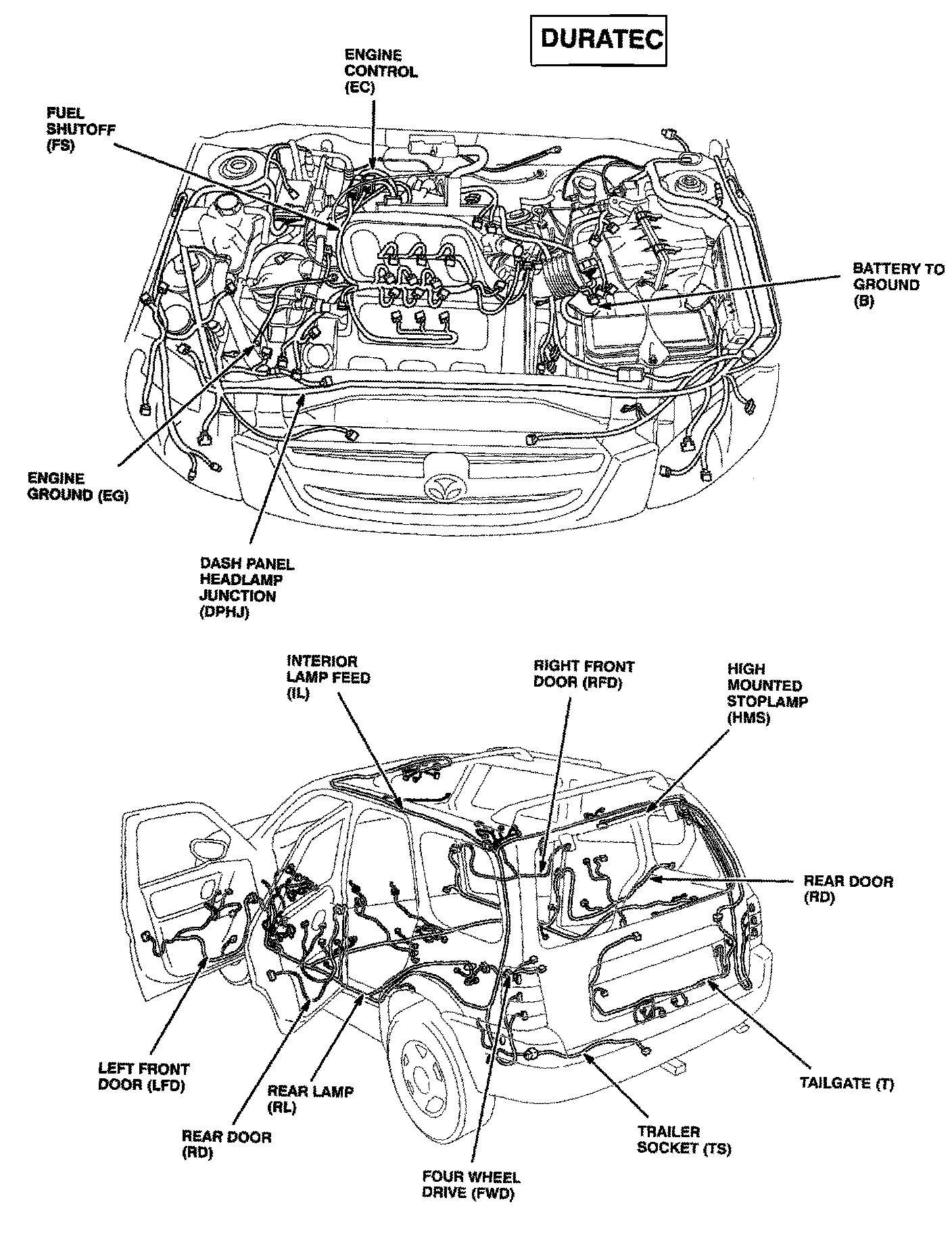

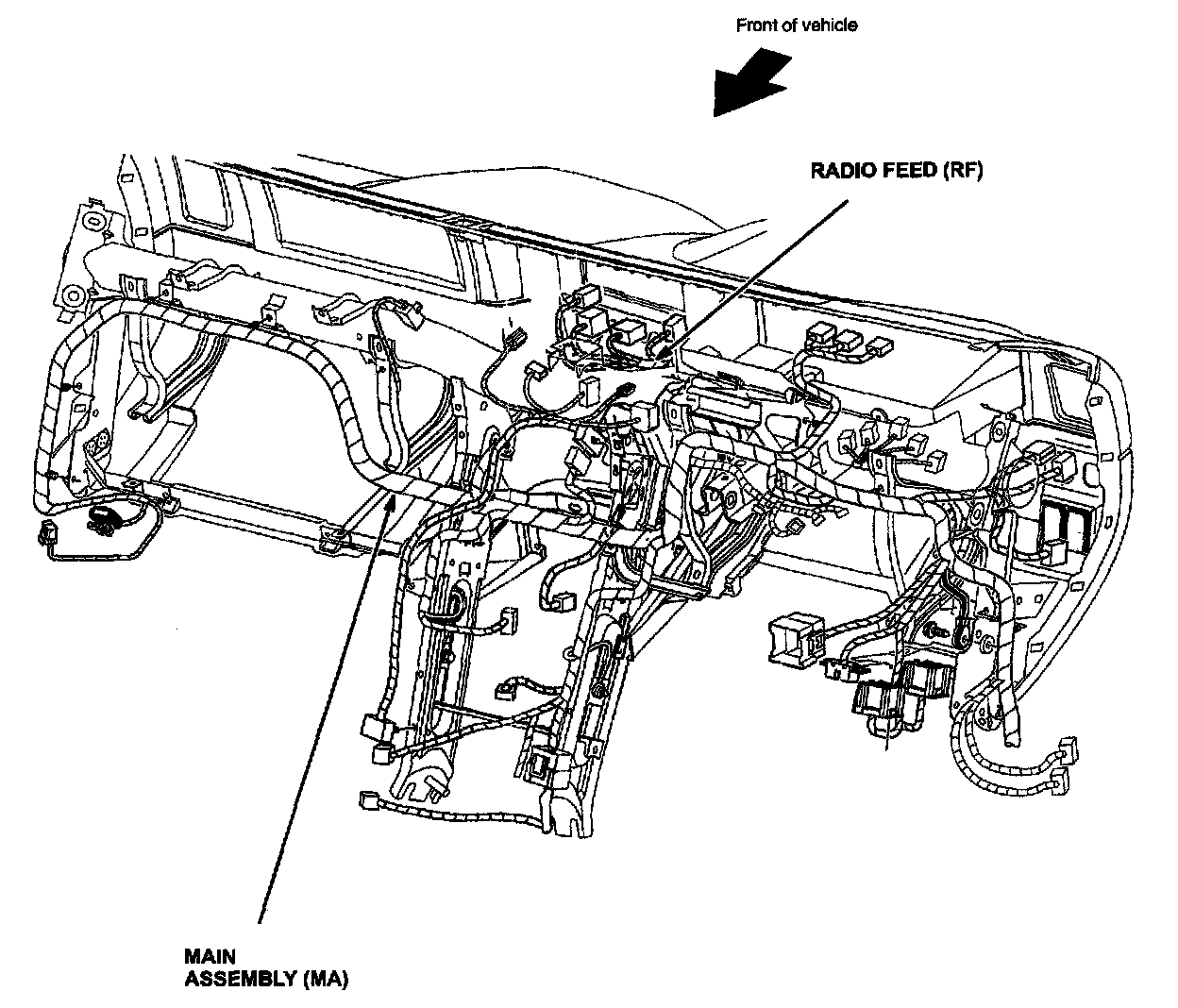

Harness Symbols:
