Pinpoint Test 3

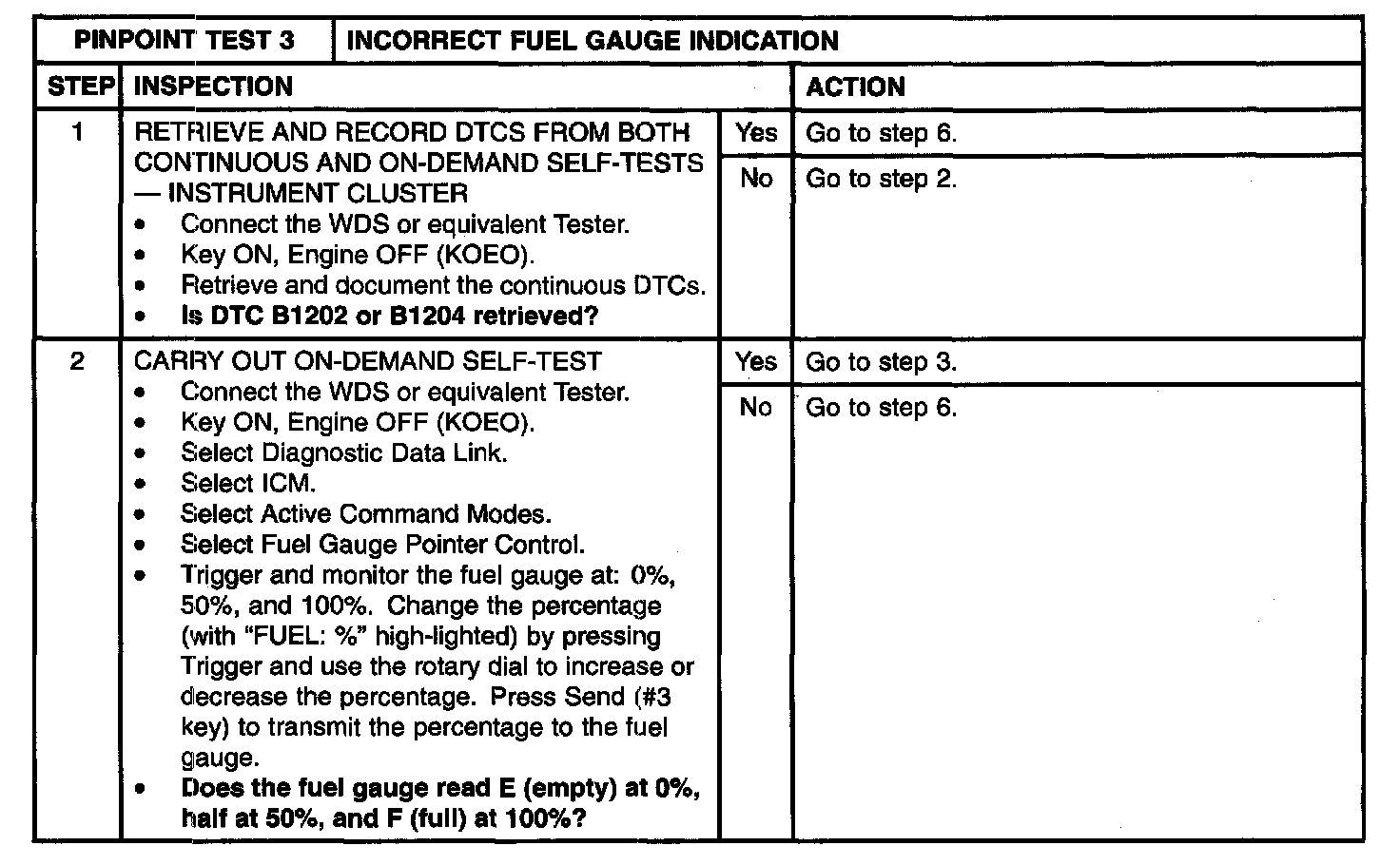

Step 1 - 2:

Step 3 - 5:

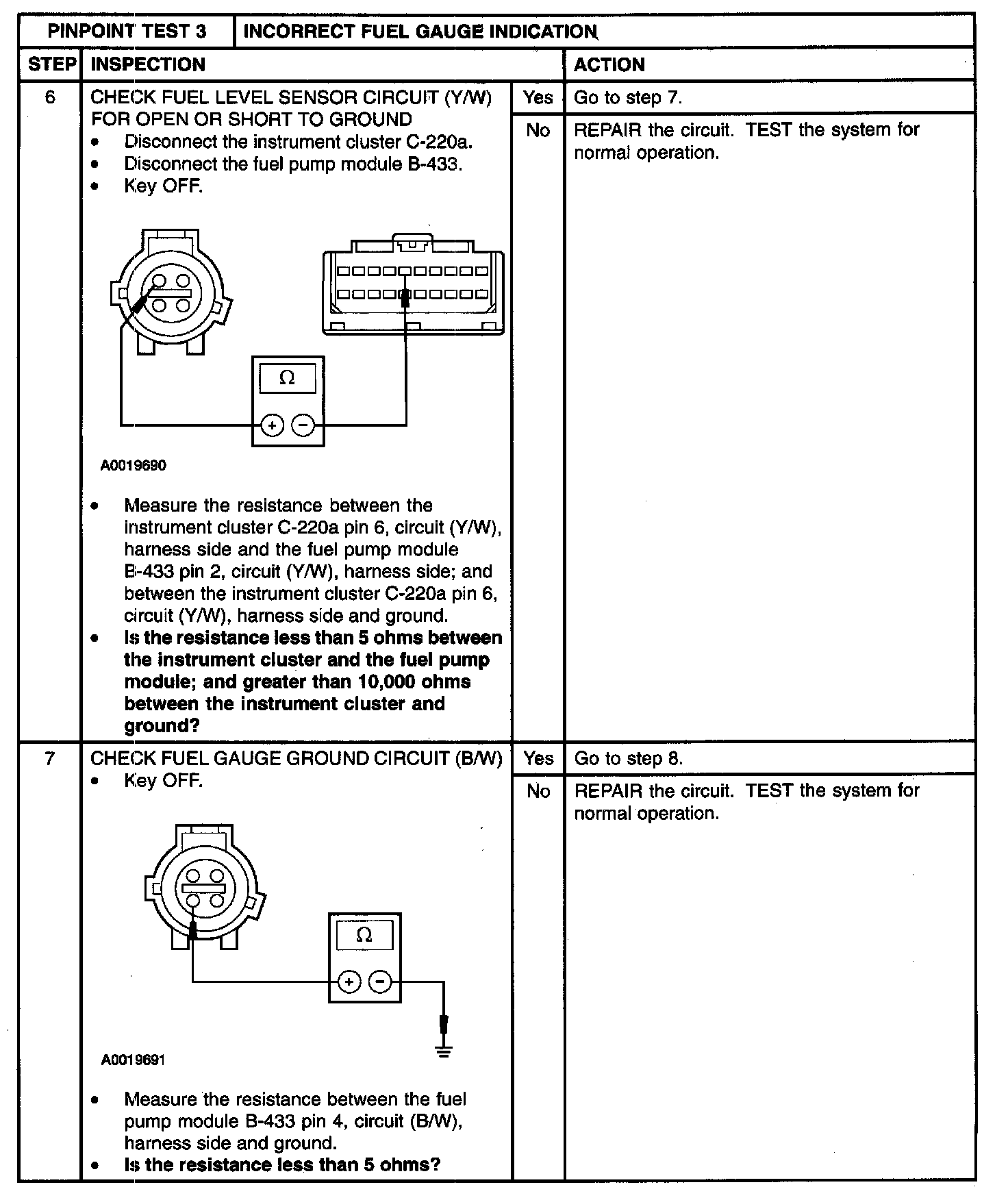

Step 6 - 7:

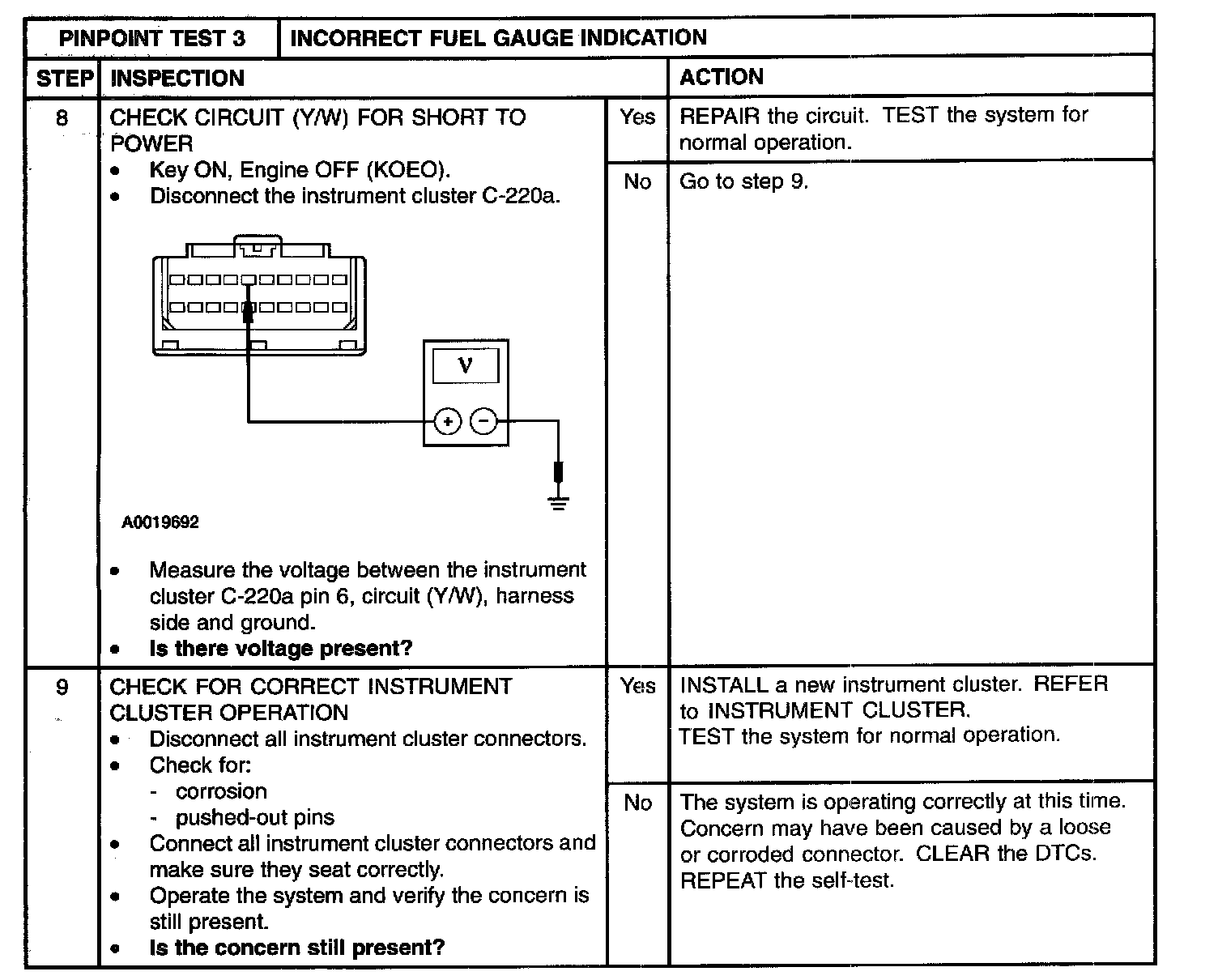

Step 8 - 9:

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
