Transmission Position Sensor/Switch: Service and Repair
TRANSAXLE RANGE (TR) SENSORRemoval
1. Place the vehicle in neutral.
2. Disconnect the battery cables.
3. Remove the battery and tray.

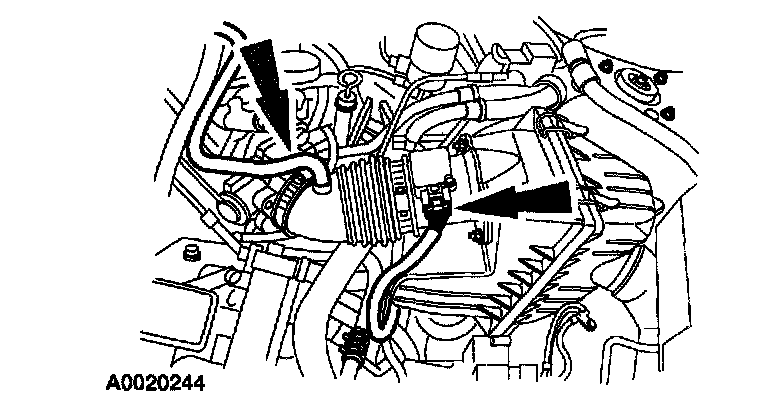

4. Disconnect the breather tube and Mass Air Flow (MAF) /Intake Air Temperature (IAT) sensor.

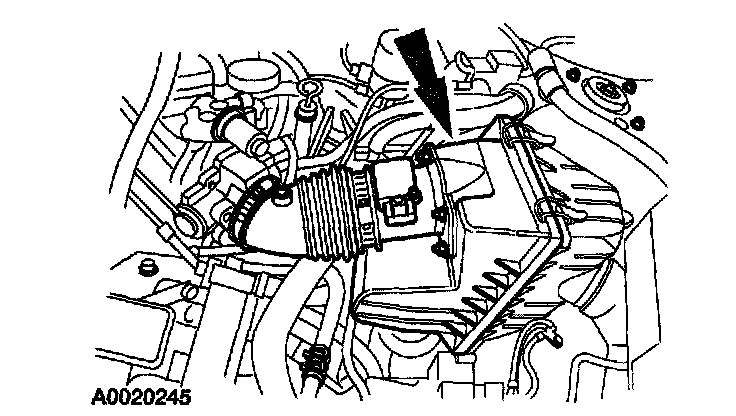

5. Remove the intake tube and air cleaner cover.

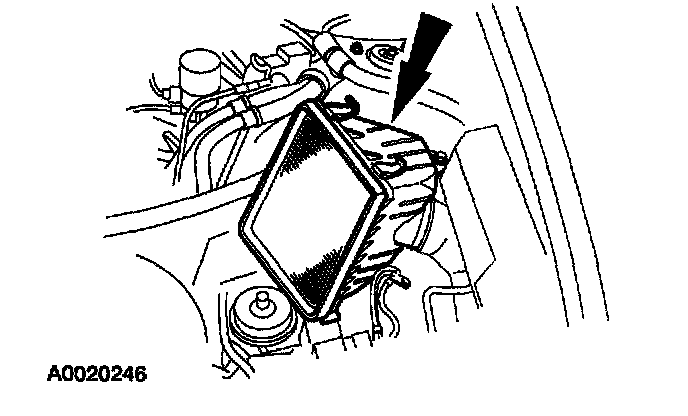

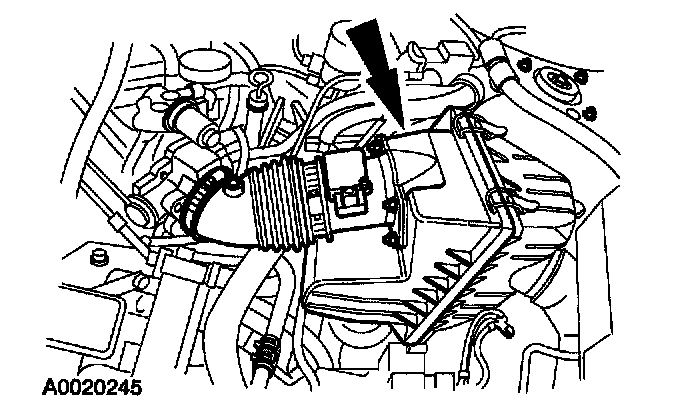

6. Remove the air cleaner assembly.
Note: It may be necessary to remove the thermostat housing to gain access to the Transaxle Range (TR) sensor.

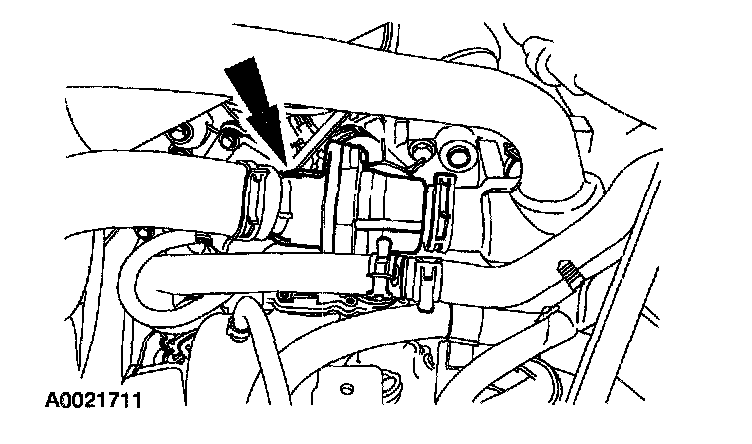

7. Remove the thermostat housing.

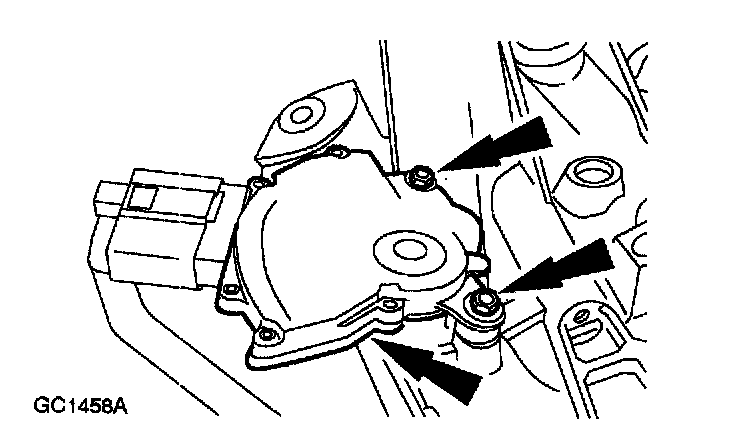

8. Remove the Transaxle Range (TR) sensor.
1. Disconnect the TR sensor electrical connector.
2. Remove the bolls.
3. Remove the TR sensor.
Installation
Note: Make sure the transaxle is in the NEUTRAL position.
1. Install the Transaxle Range (TR) sensor and loosely install the bolts.

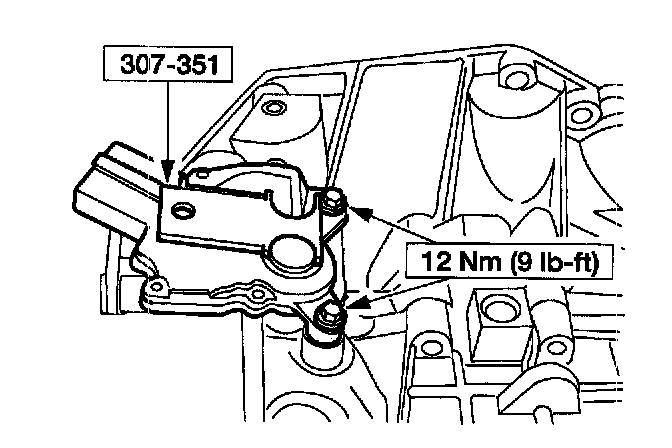

2. Using the special tool, align the TR sensor and tighten the bolts.
1. Connect the electrical connector.
3. Install the thermostat housing.

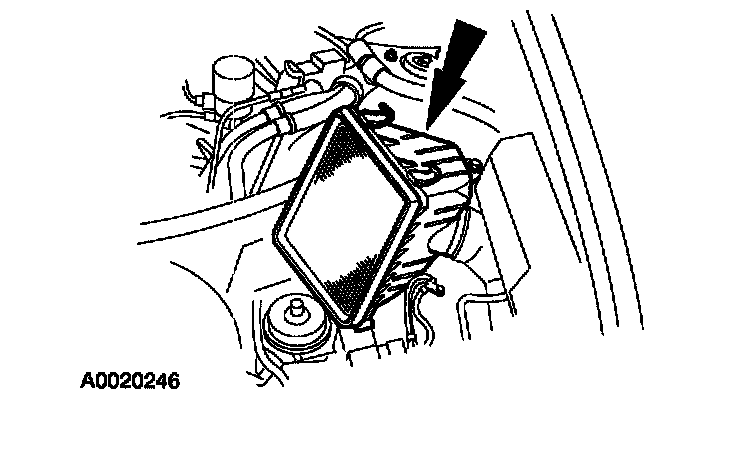

4. Install the air cleaner assembly.
5. Install the intake tube and air cleaner cover.

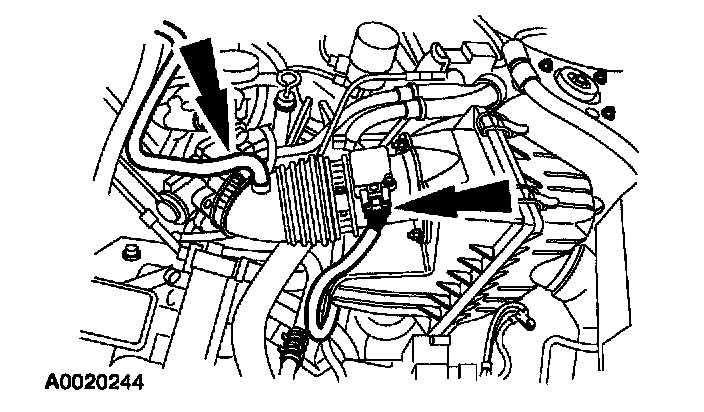

6. Connect the breather tube and Mass Air Flow (MAF) / Intake Air Temperature (IAT) sensor.
Note: Before installing the battery tray check the vent tube hose for any obstructions, kinks, or incorrect routing position.
7. Install the battery and tray.
8. Connect the battery cables.
9. Check the correct operation with parking brake control engaged. The engine should start only in PARK or NEUTRAL. Backup lamps should be active only in the REVERSE position.
