System Specifications

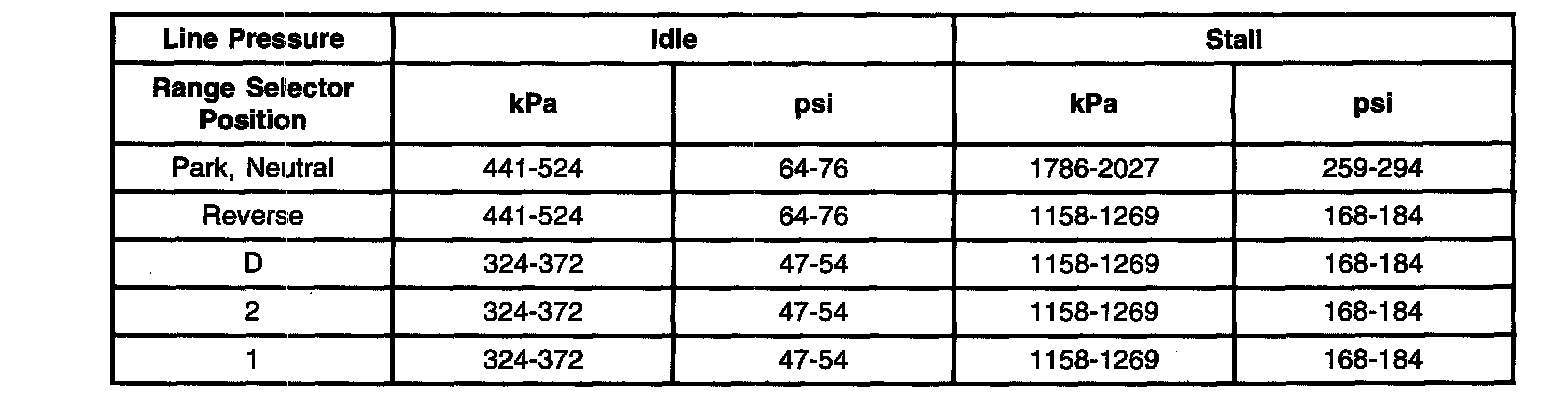

Reference: Pressure Chart No.401

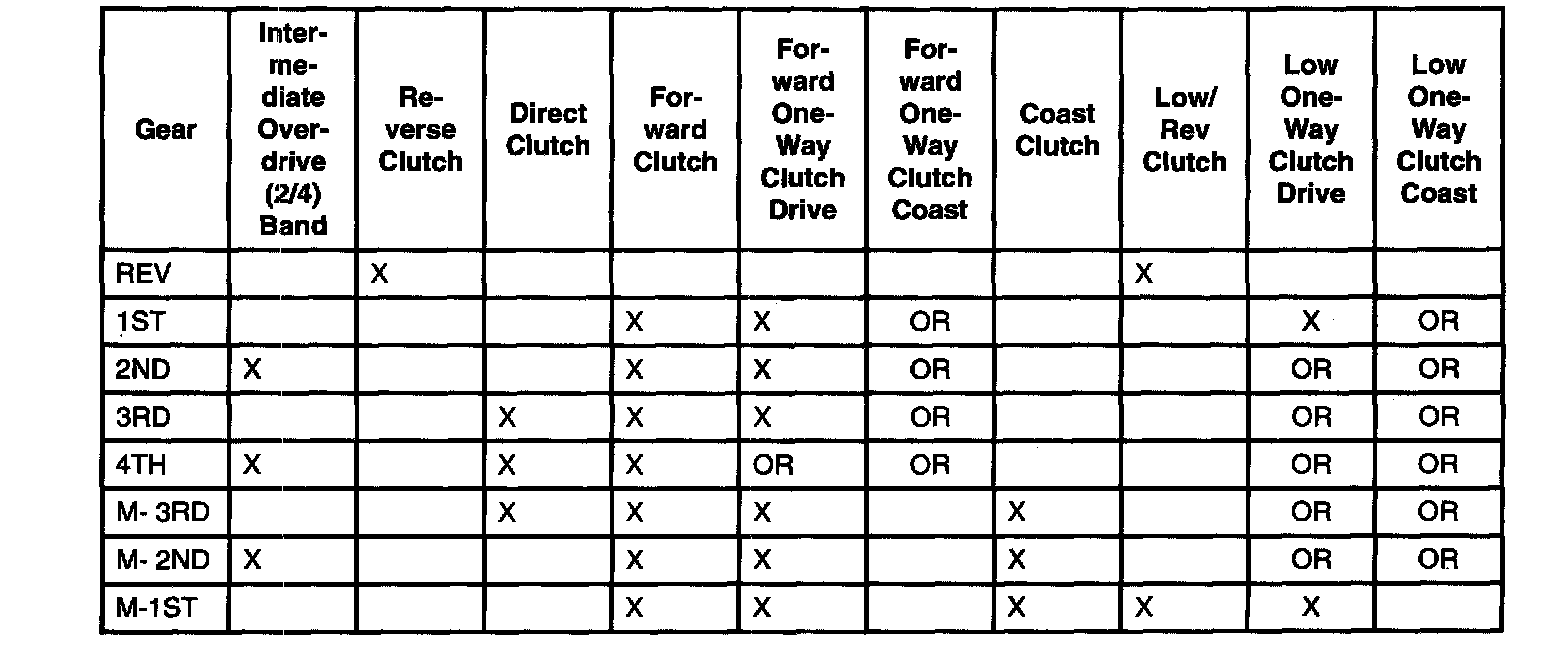

Reference: Clutch/Band Application Chart No. 601

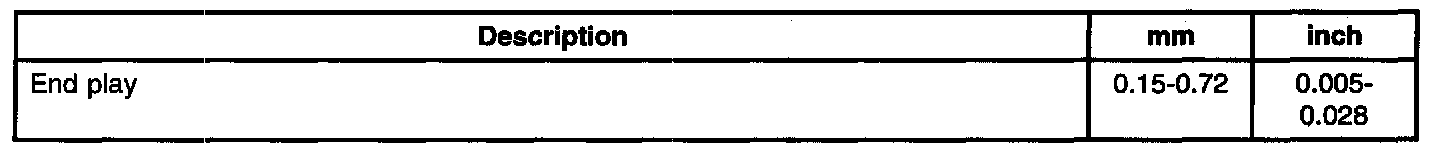

Low/Intermediate Carrier Assembly Pinion Gear

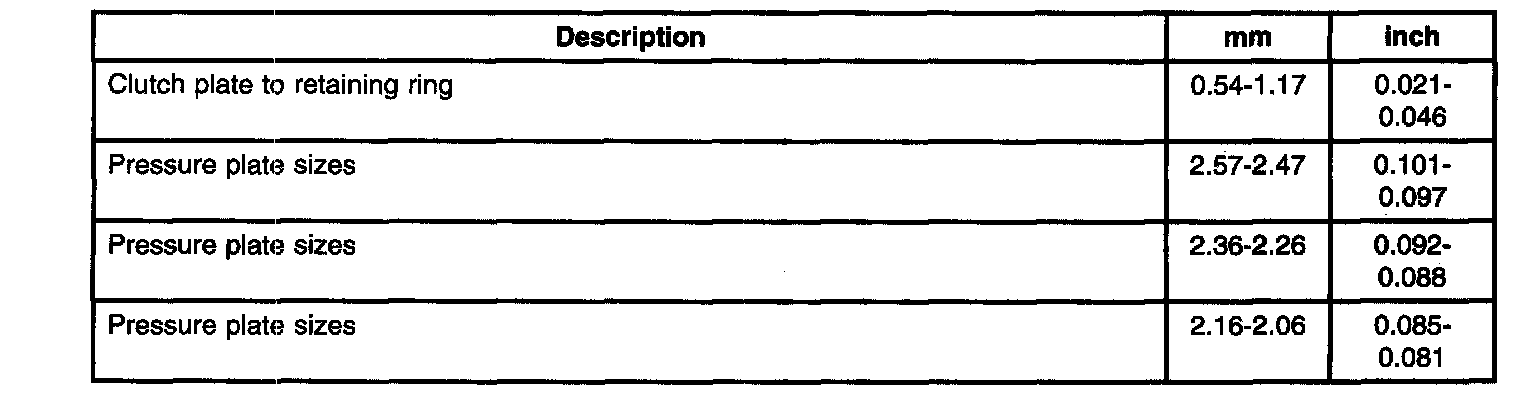

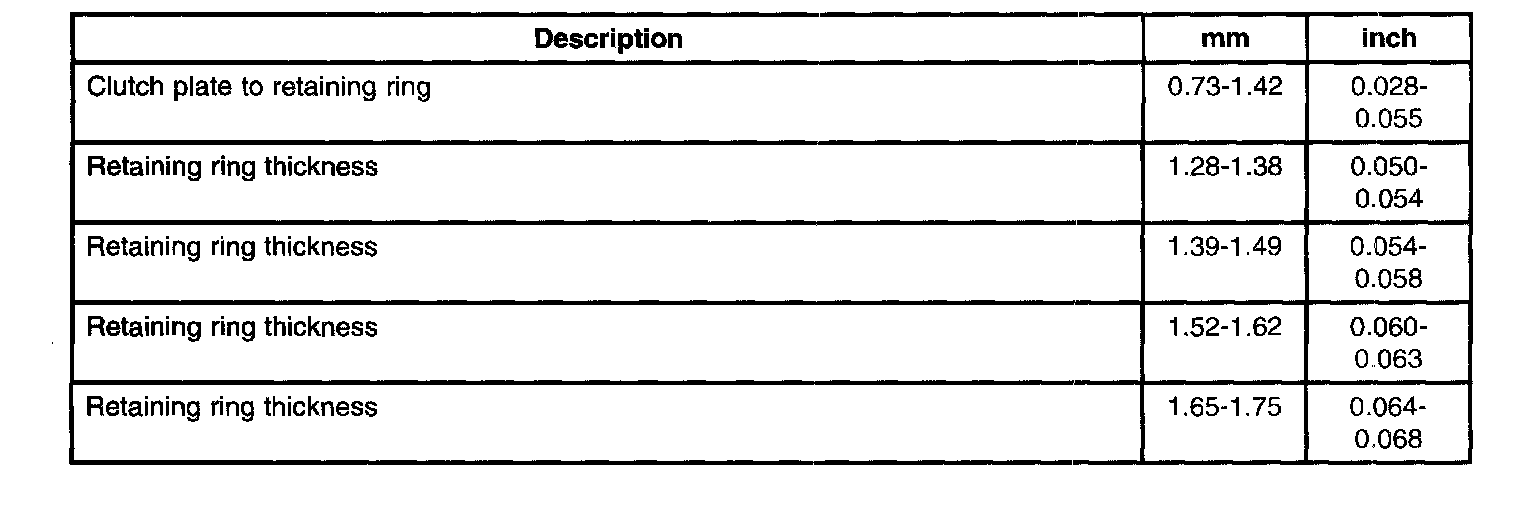

Reverse Clutch Pack Clearance

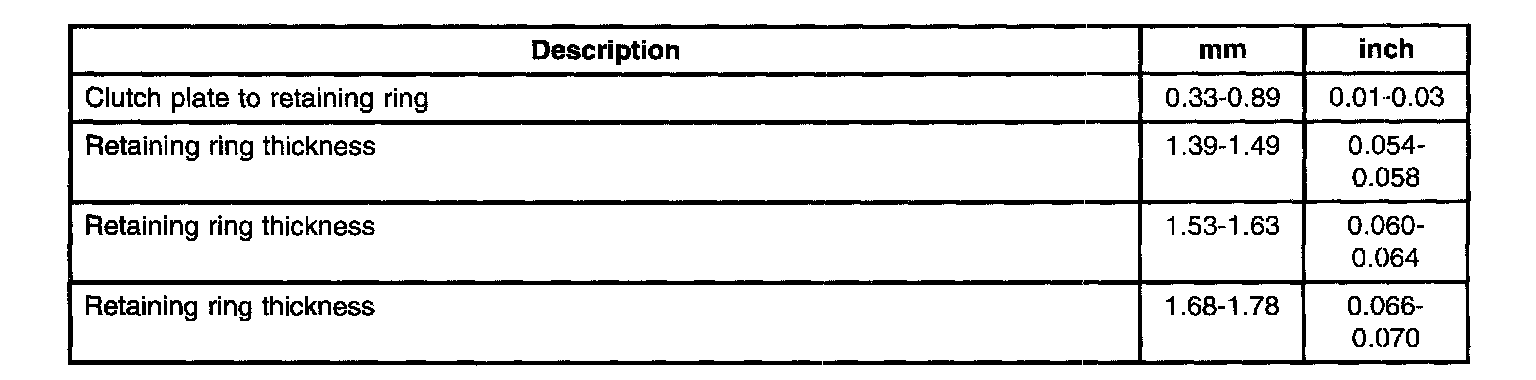

Forward/Coast Clutch Pack Clearance
Direct Clutch Pack Clearance (4 Friction Plates)

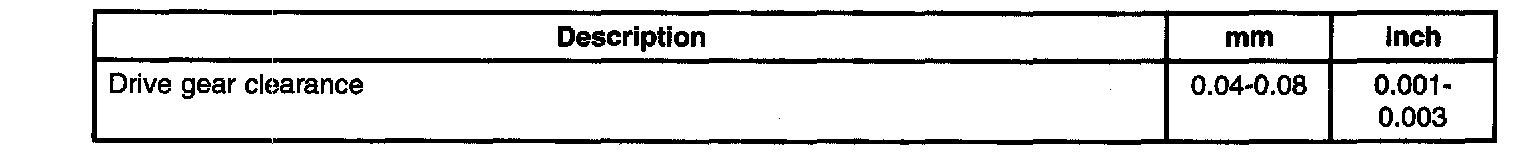

Pump Gear End Clearance

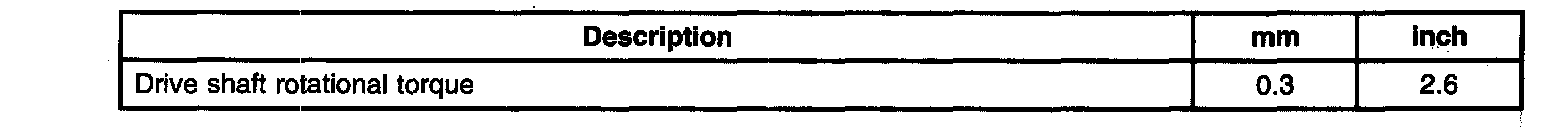

Pump Assembly Rotating Torque

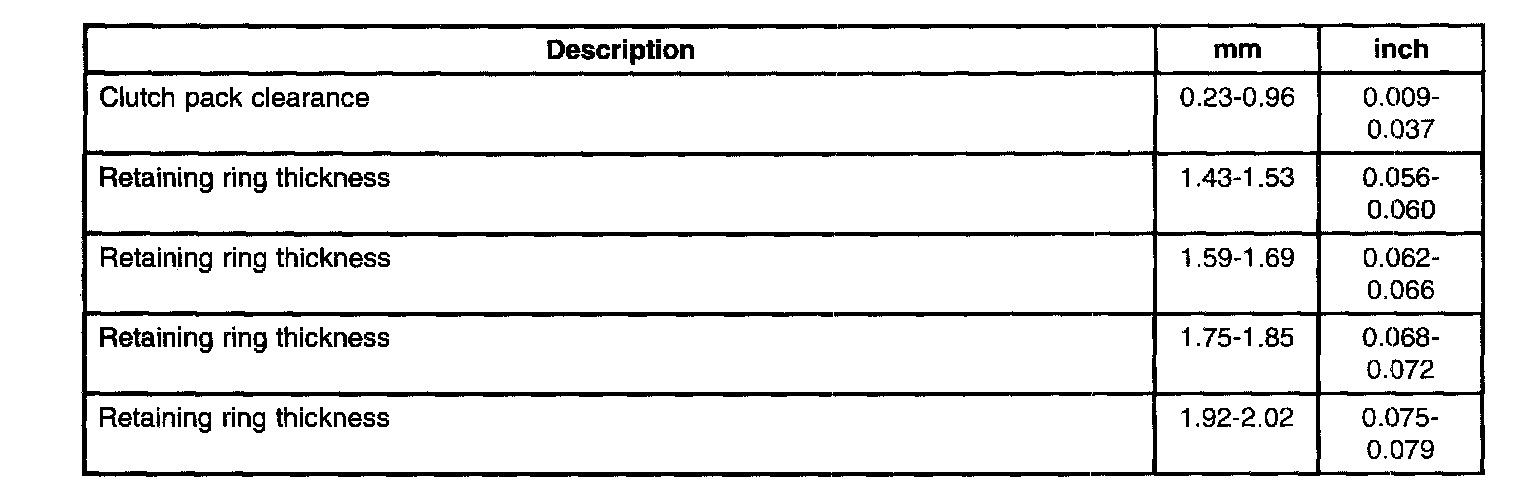

Low/Reverse Clutch Pack Clearance
Intermediate and Overdrive Servo

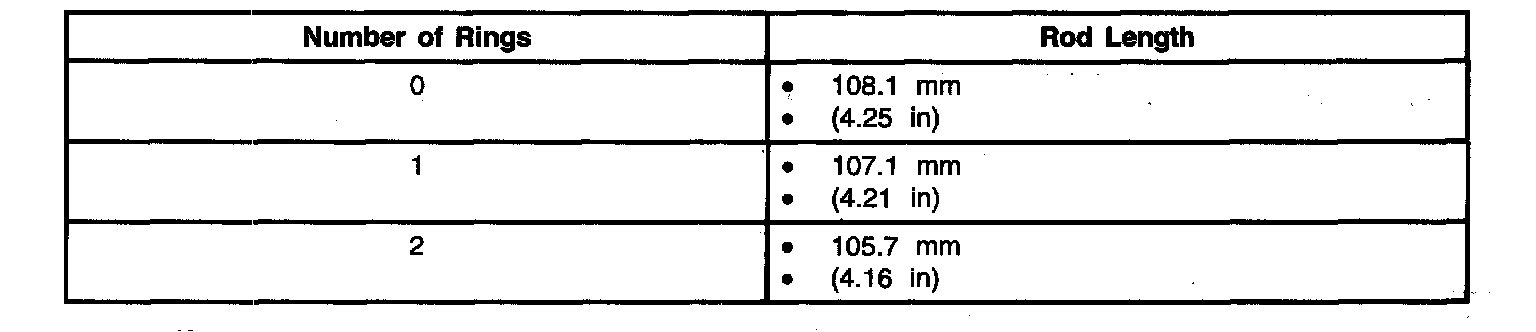

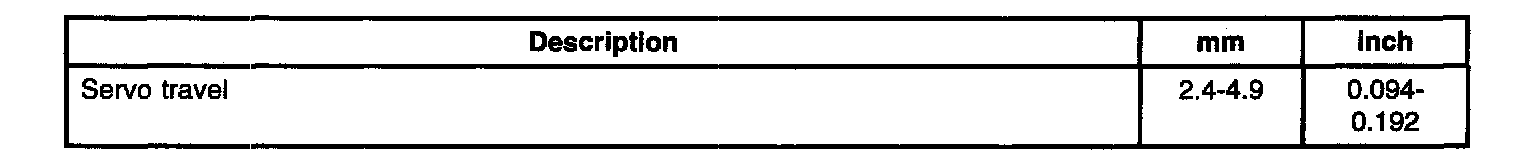

Intermediate/Overdrive Servo Apply Rod

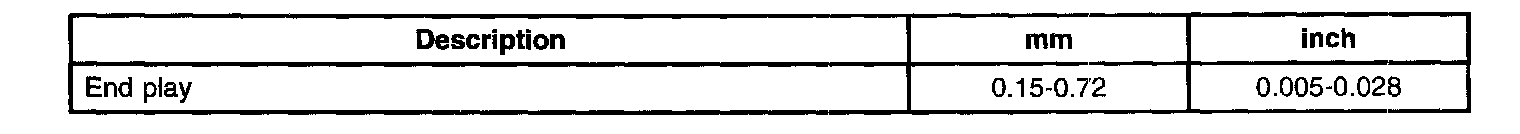

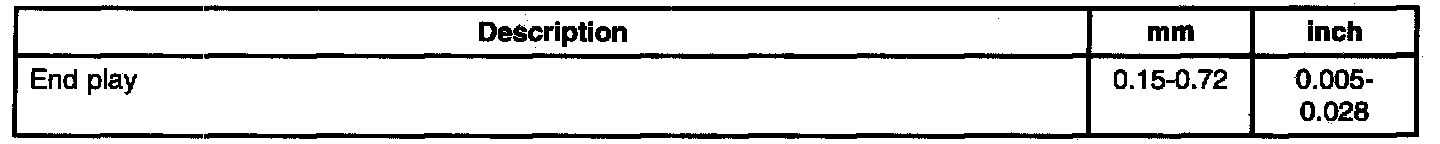

Reverse/Overdrive Carrier Assembly Pinion Gear End Play

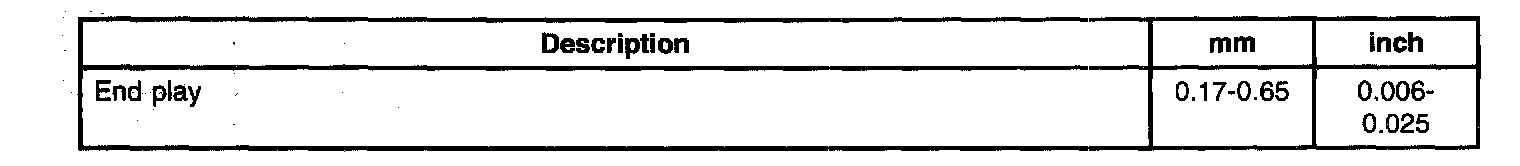

Low/Intermediate Carrier Assembly Pinion Gear End Play
Final Drive Carrier Assembly Pinion Gear End Play

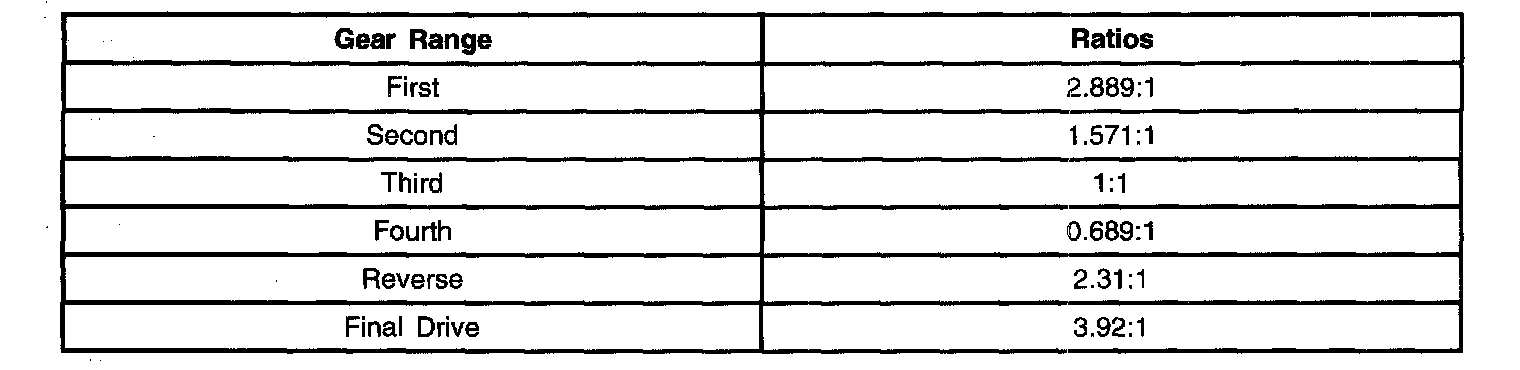

Gear Ratios

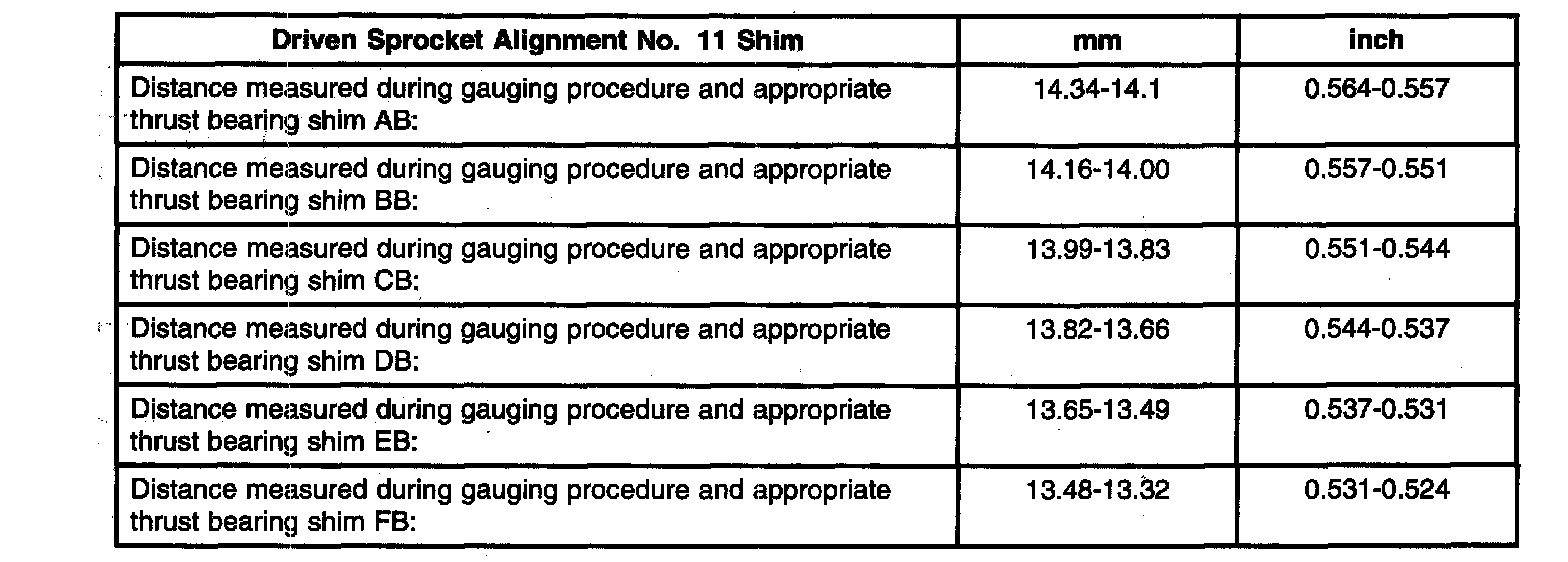

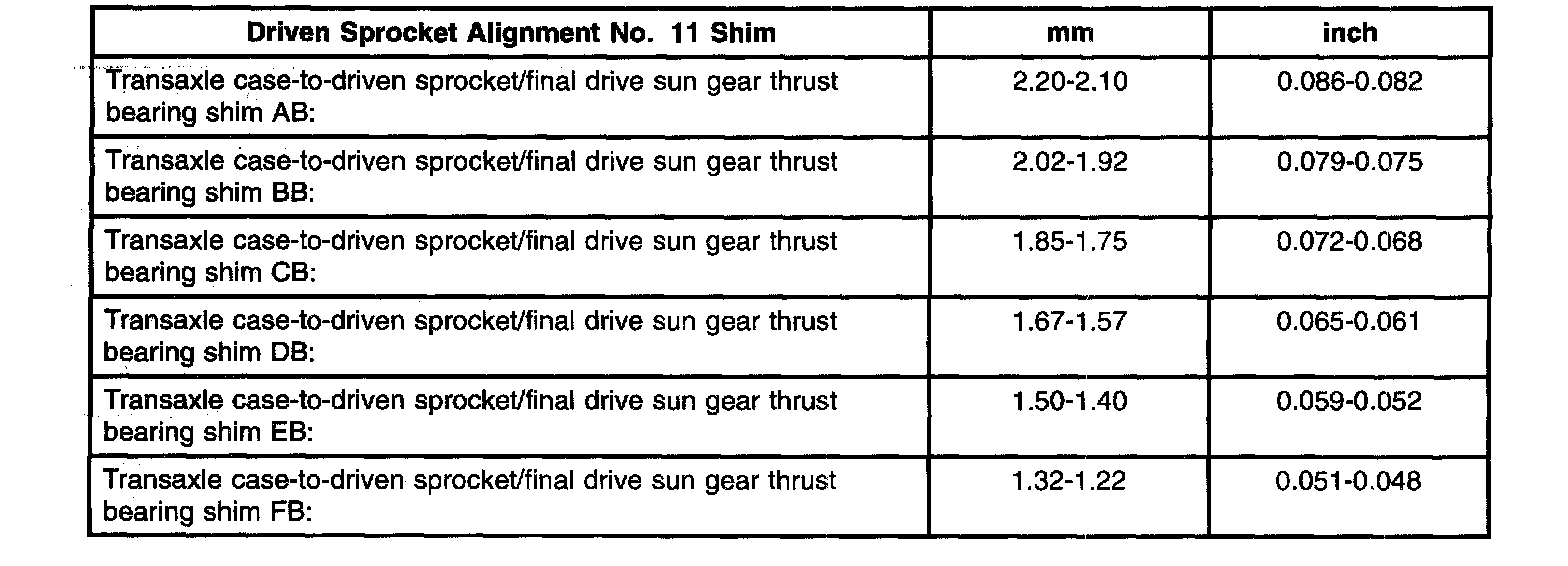

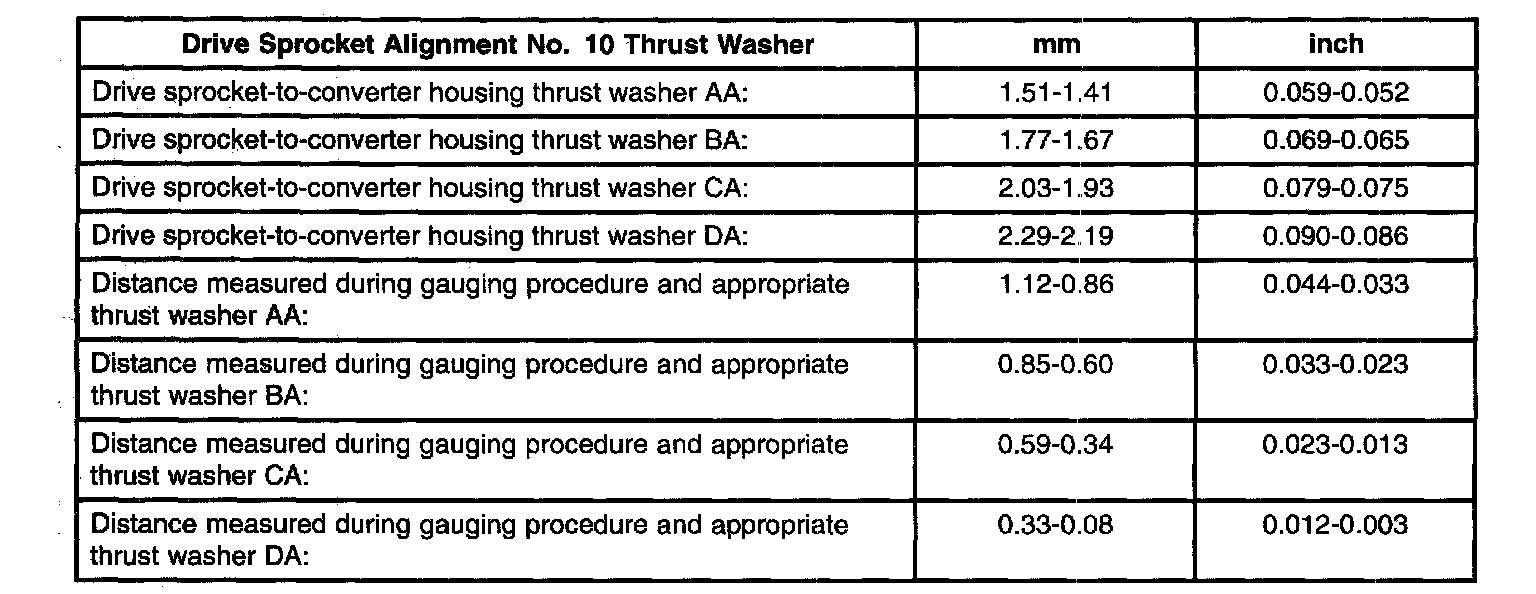

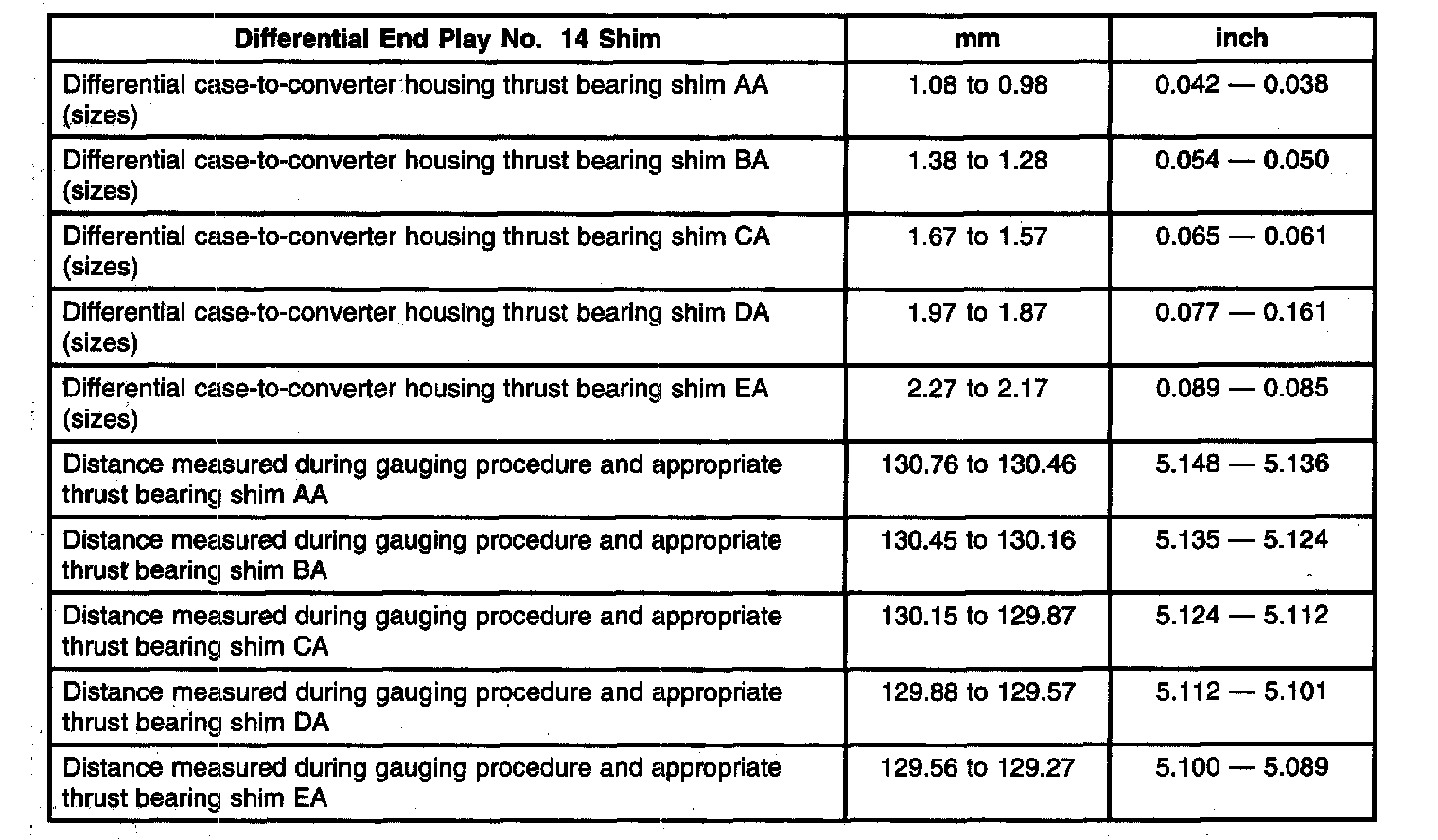

General Specifications
