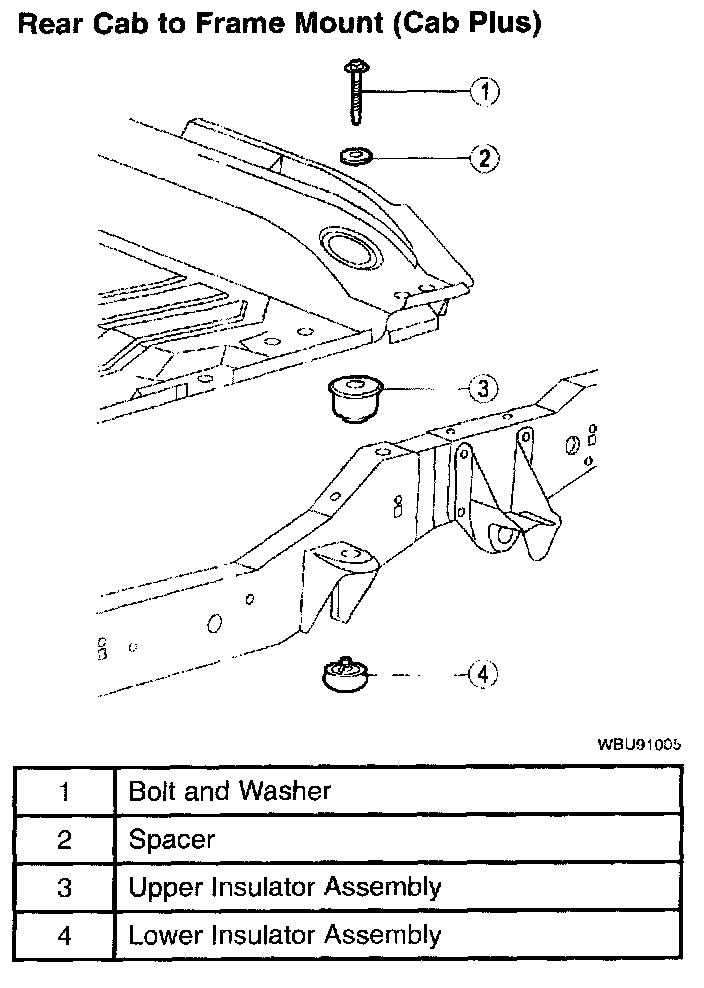

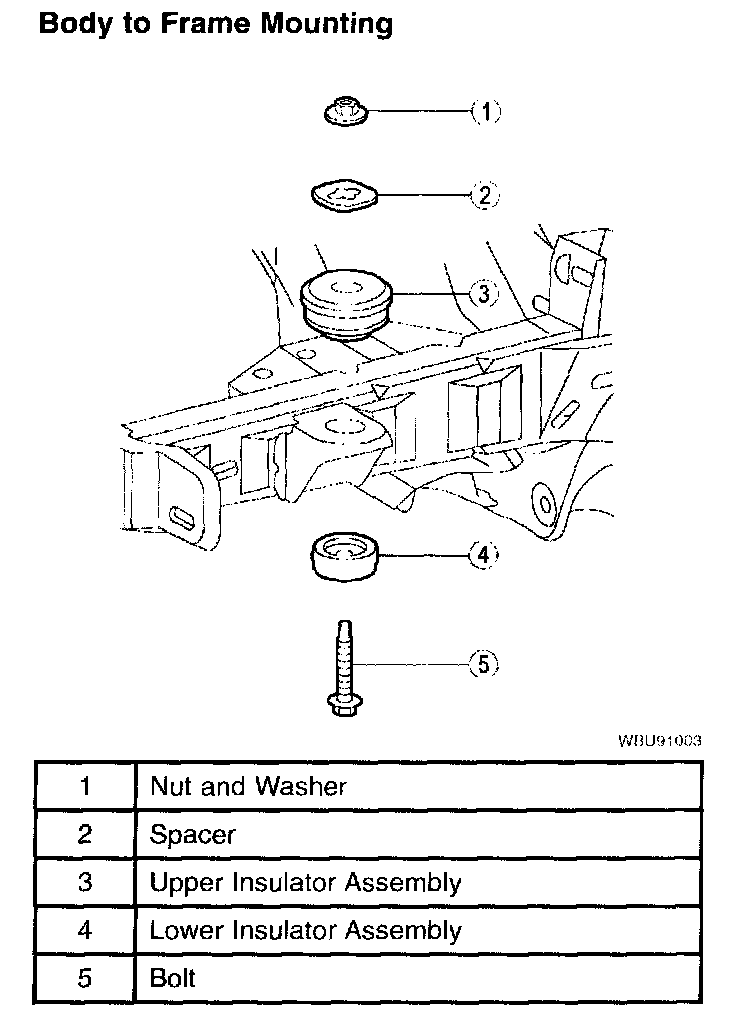

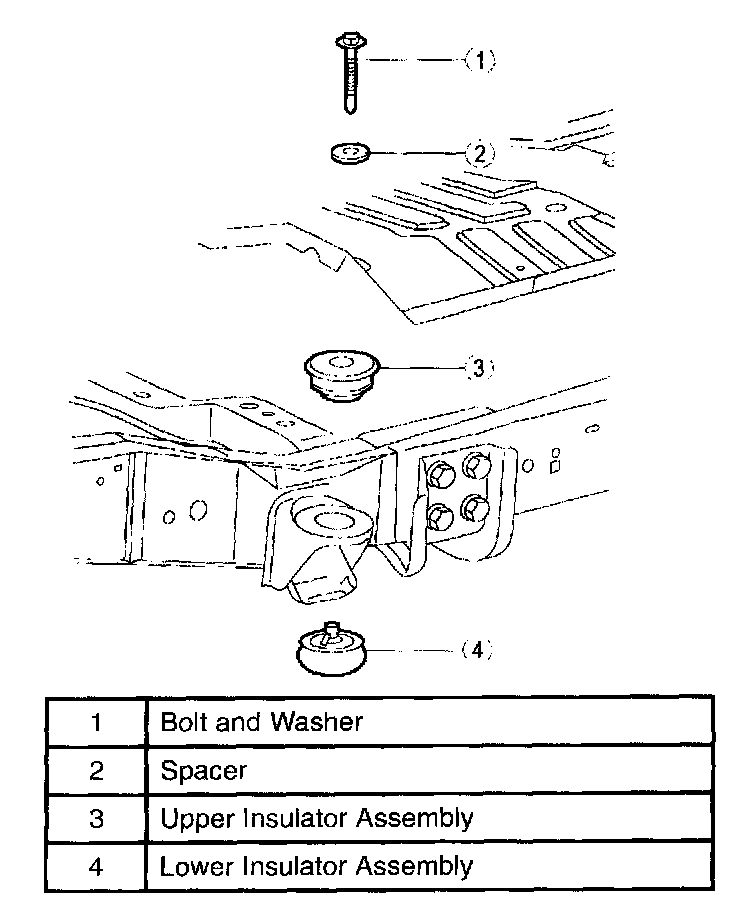

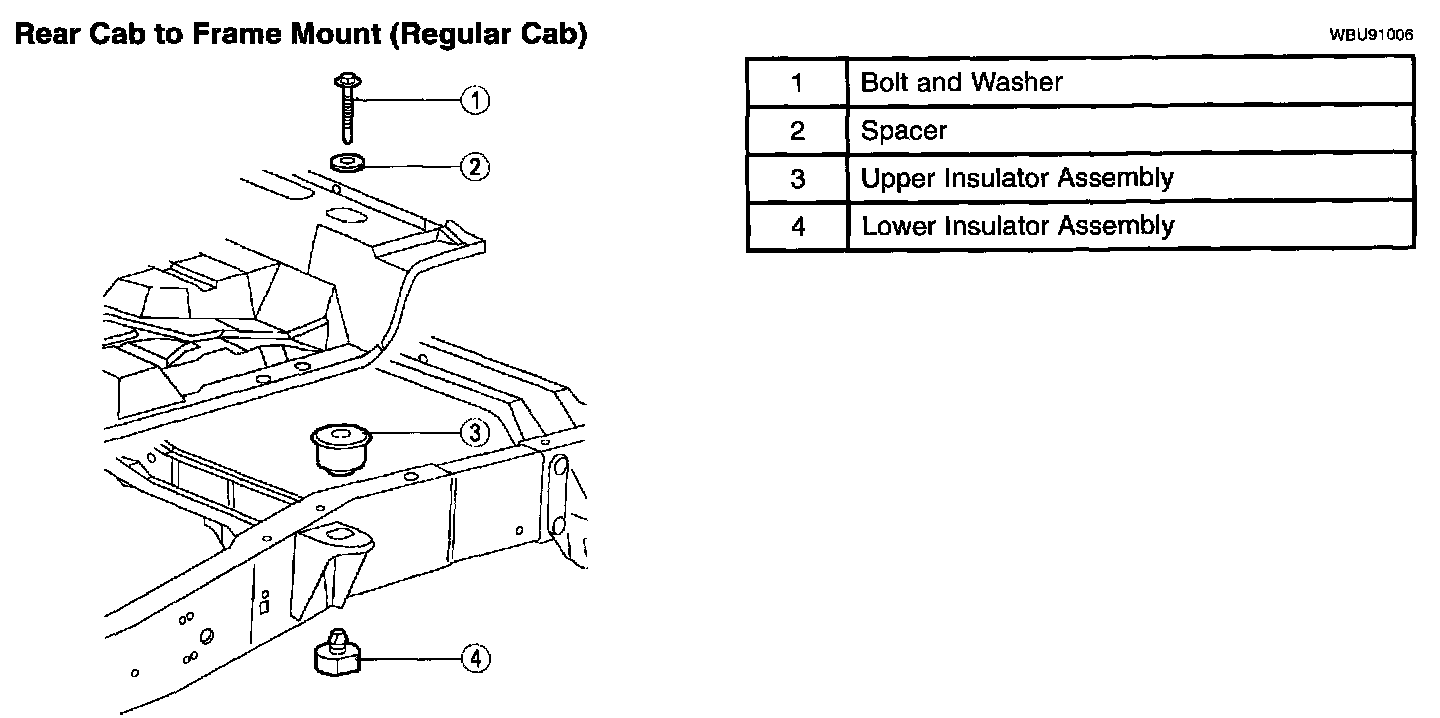

Body / Frame Mount Bushing: Locations

FRAME AND MOUNTING COMPONENT VIEW

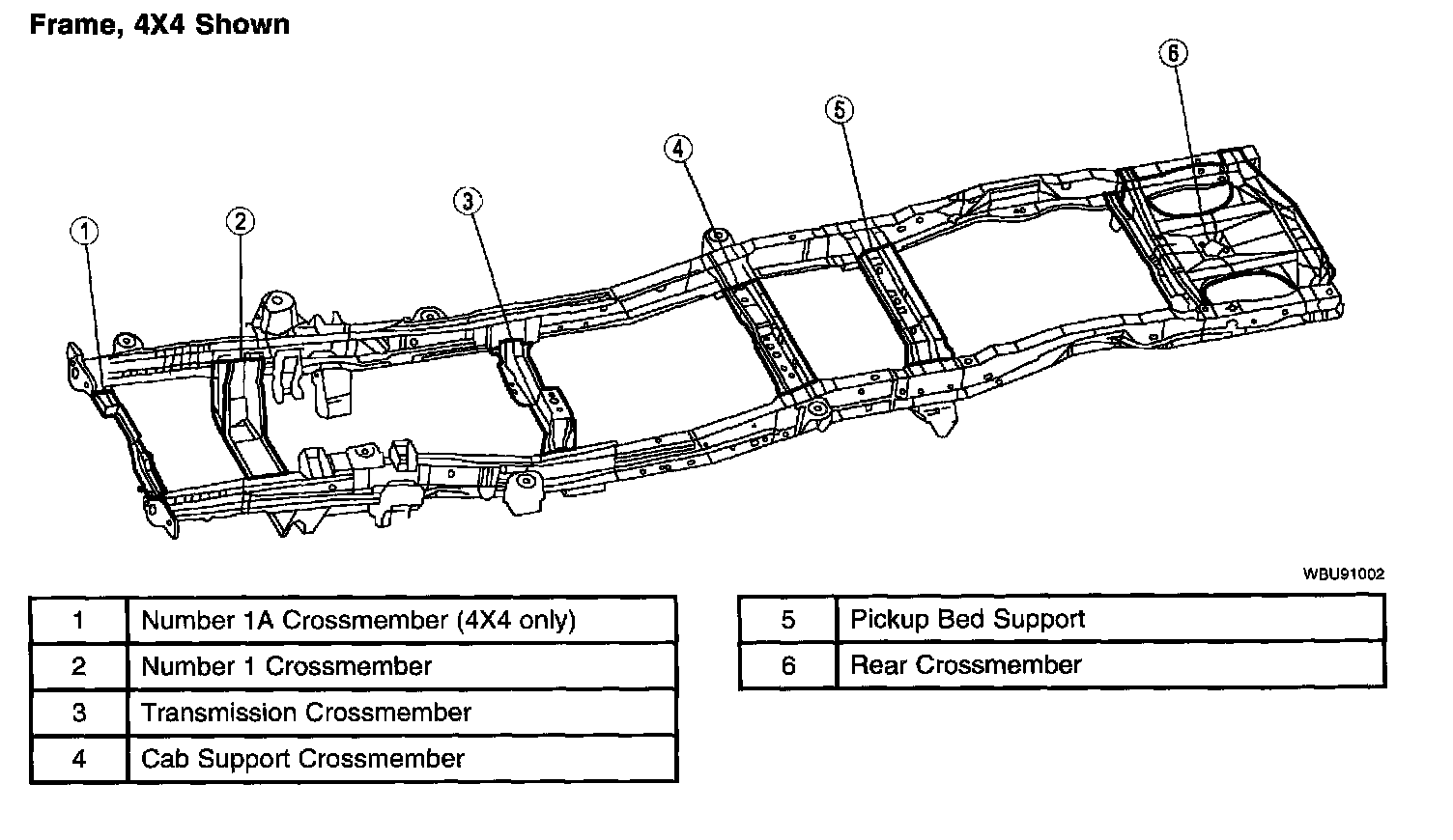

Frame and Mounting Component View:

The frame consists of two steel channel rails, a rear crossmember, a number of additional support crossmembers and a front crossmember.

The number A (4x4 only) and number 1 crossmembers are welded to the frame side rails The remaining frame crossmembers are riveted and/or bolted into place.
