Axle and Differential Structural View Rear (Limited Slip)

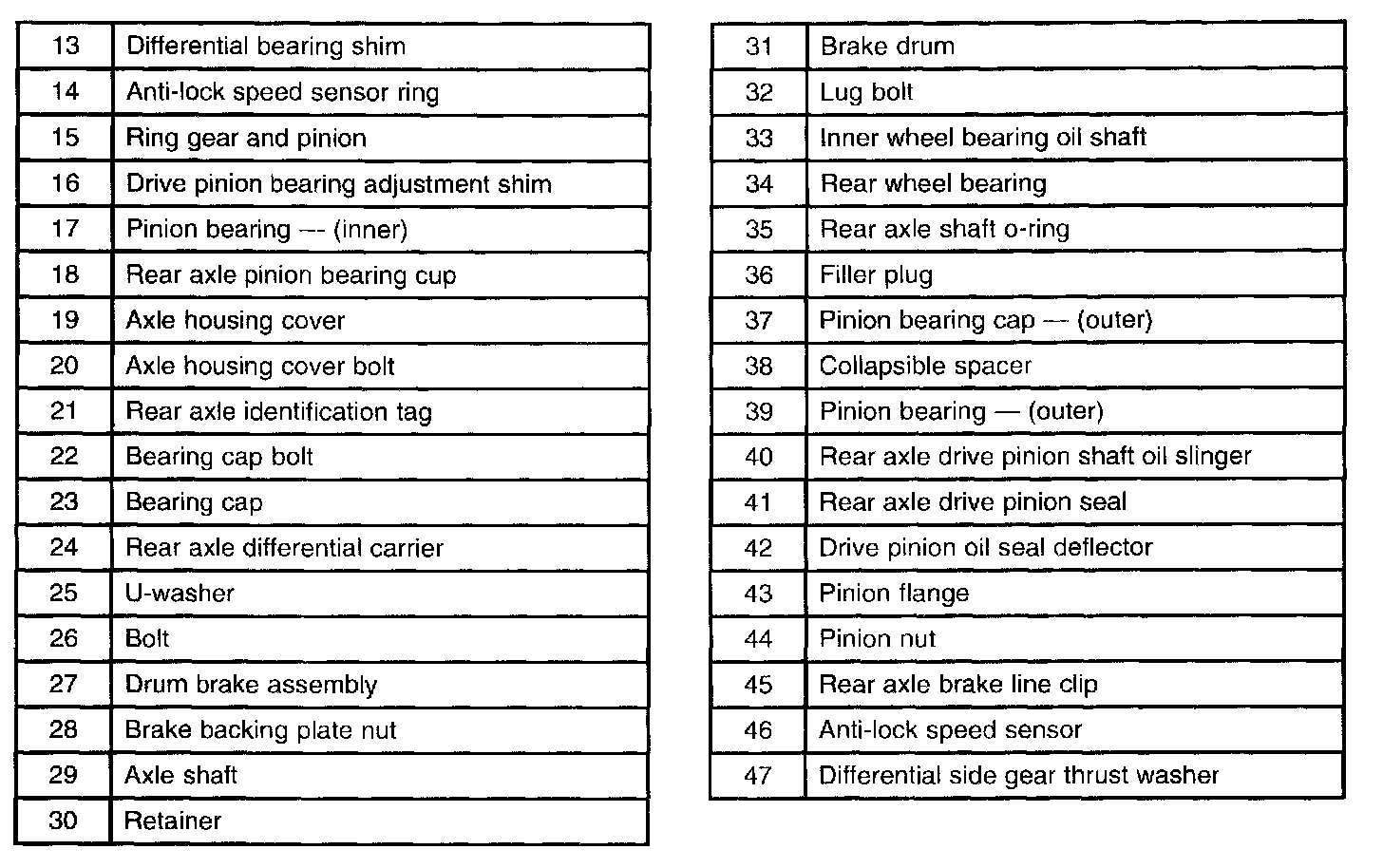

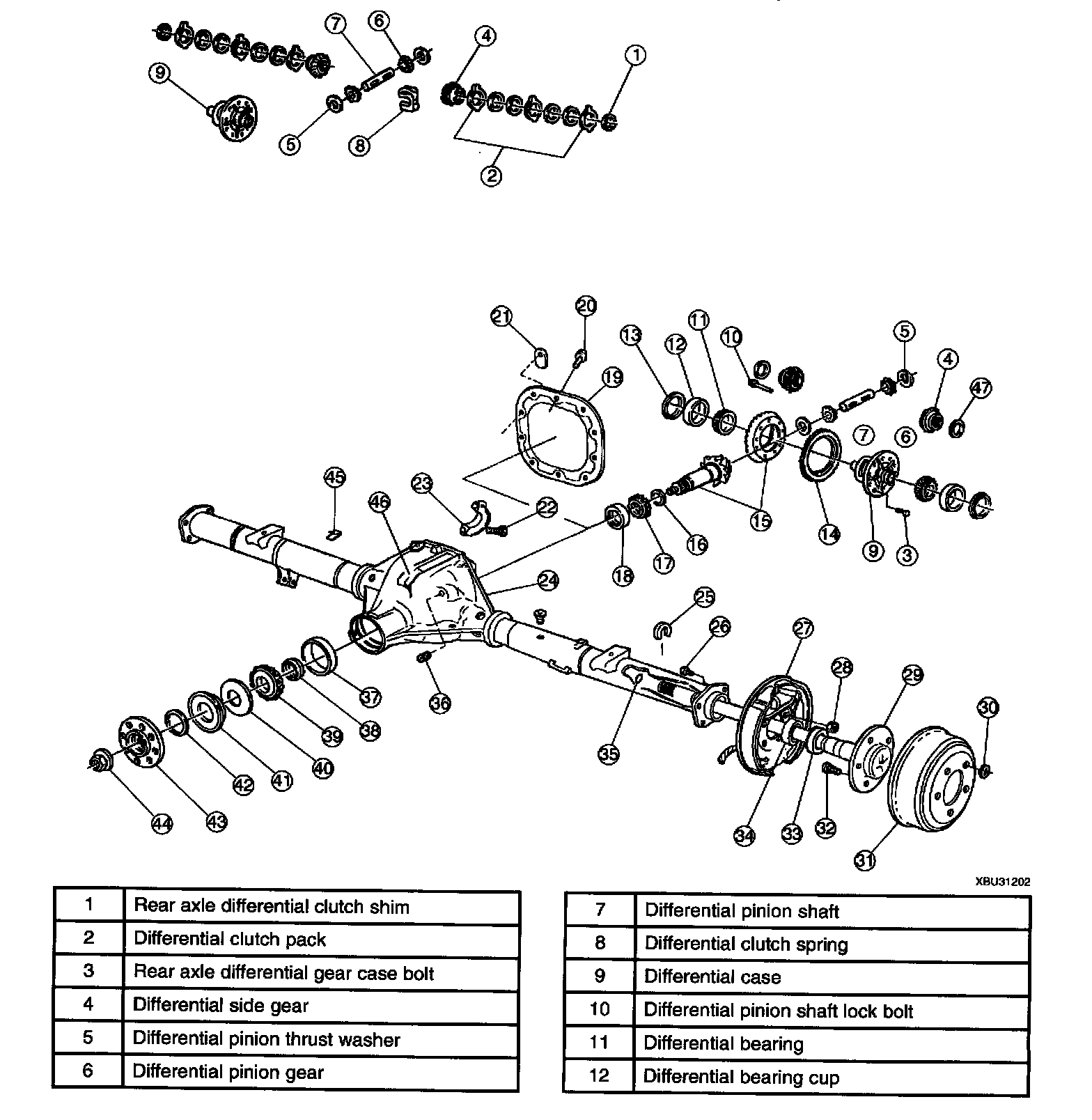

AXLE AND DIFFERENTIAL STRUCTURAL VIEW REAR (LIMITED SLIP)
