Axle Structural View Rear (Standard)
Axle Structural View Rear (Standard)
AXLE STRUCTURAL VIEW REAR (STANDARD)

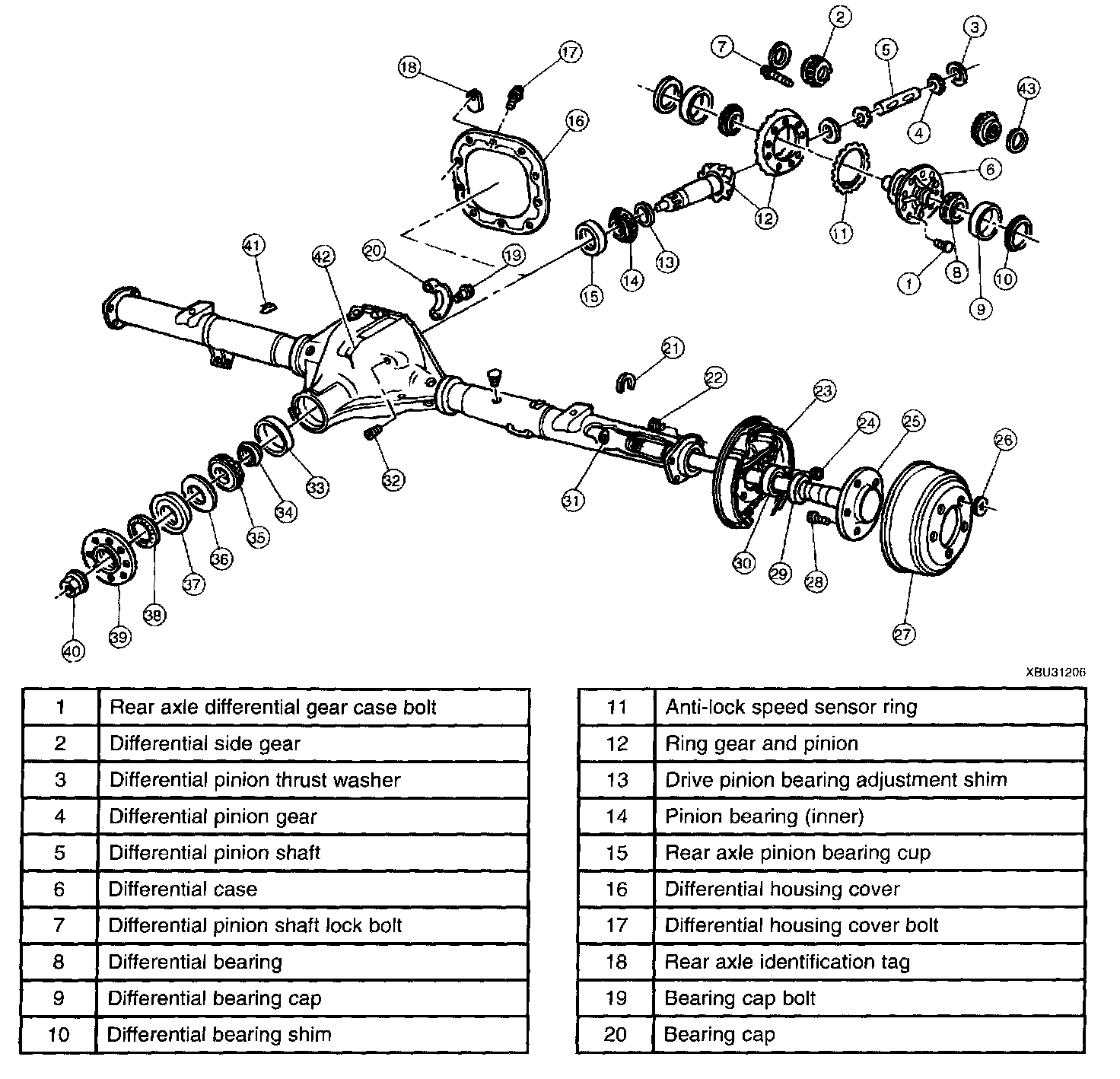

1 Of 2:

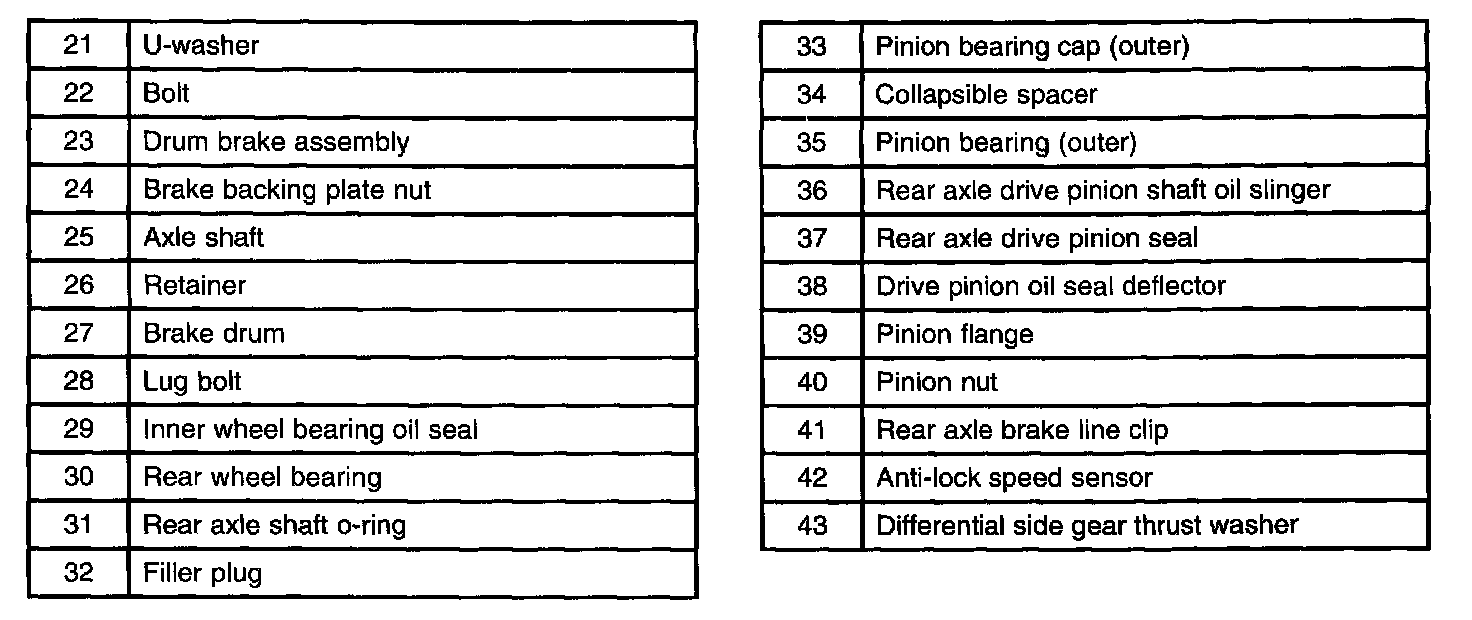

2 Of 2:
