Suspension
>>
System Diagram
>>
Front
Front
Front
Suspension
Components-4x2

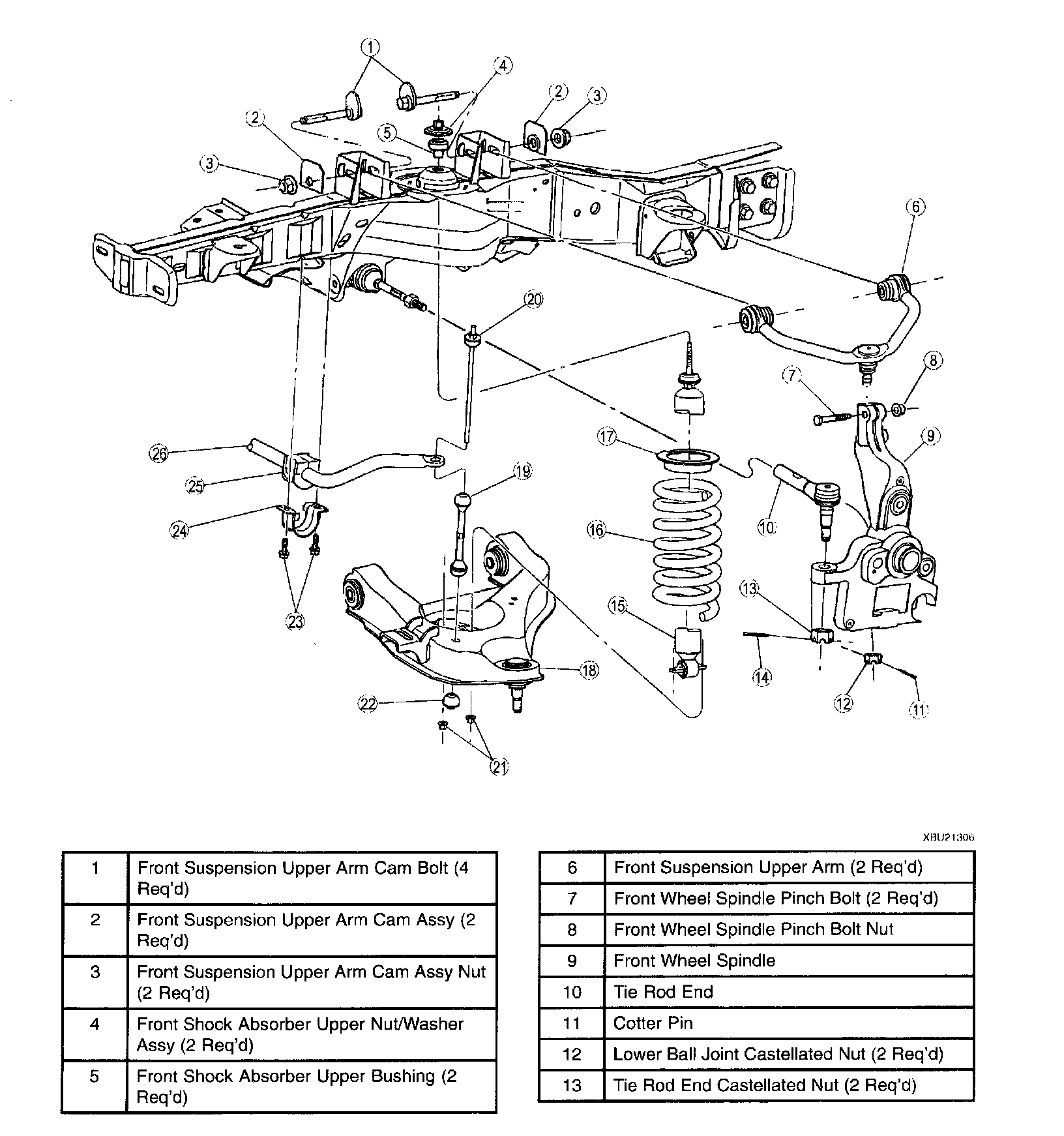

Diagram 1 Of 2:

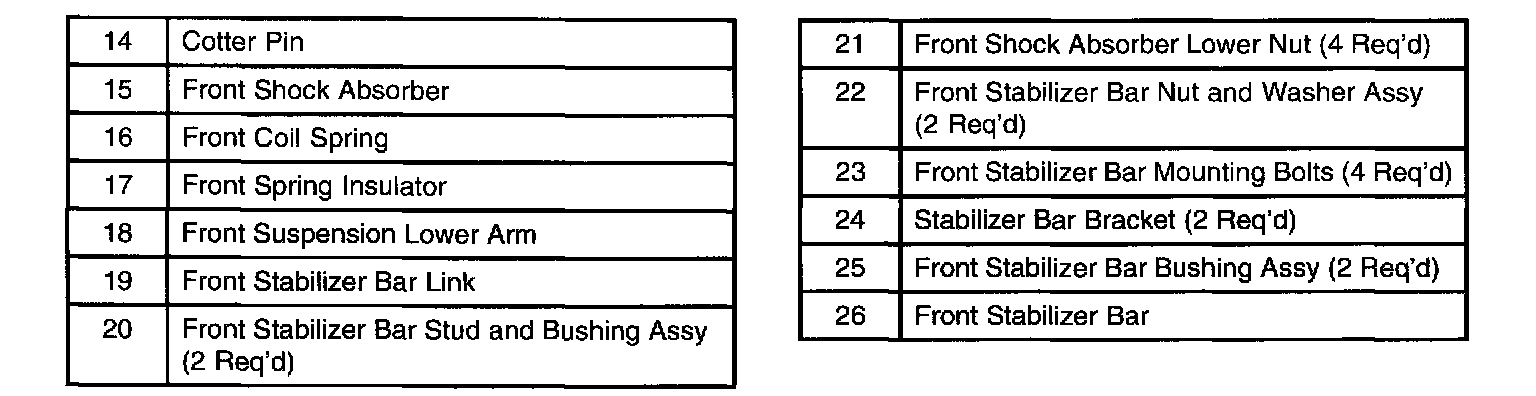

Diagram 2 Of 2:
