Rear

SUSPENSION COMPONENTS REAR

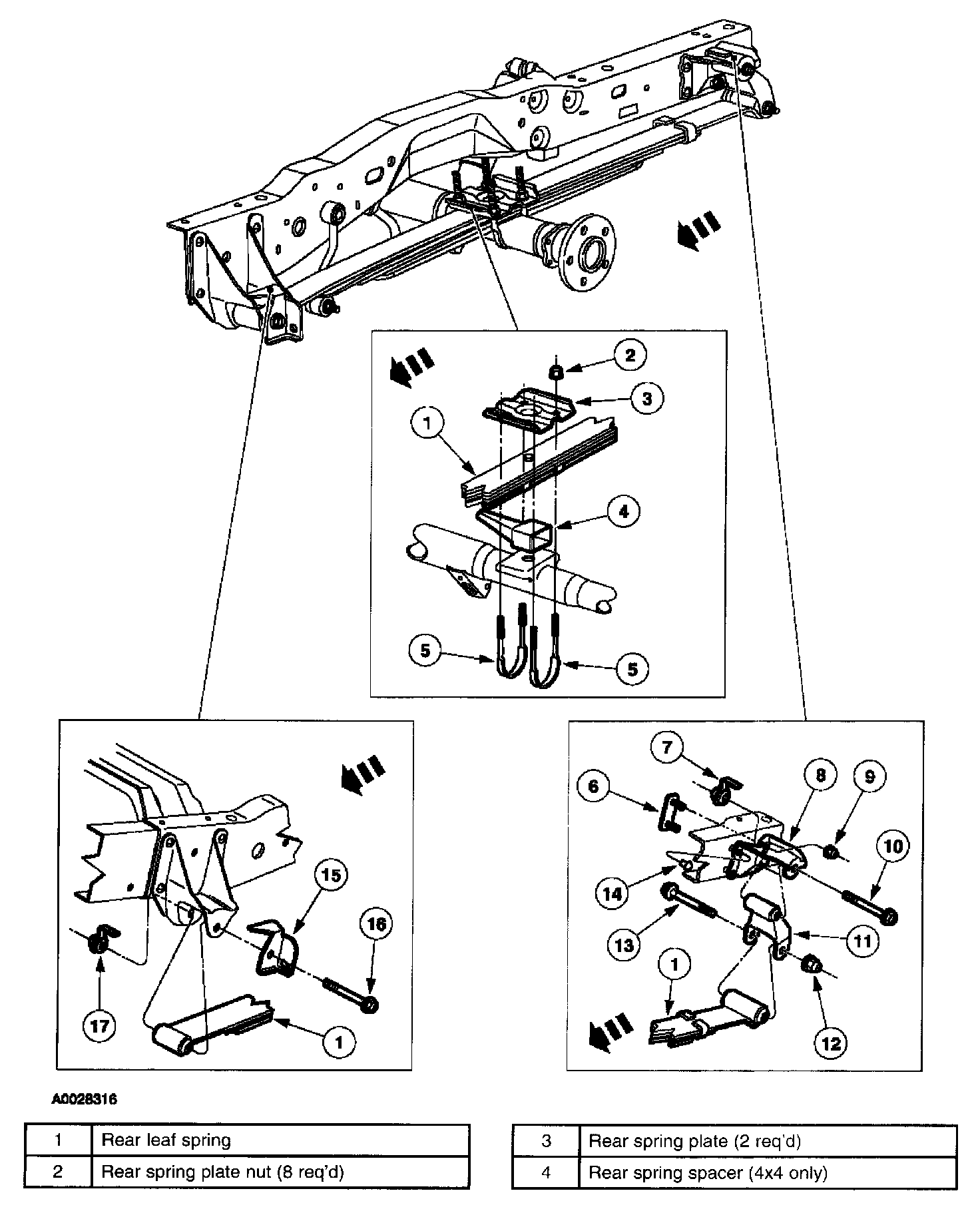

Diagram 1 Of 4:




Diagram 2 Of 4:

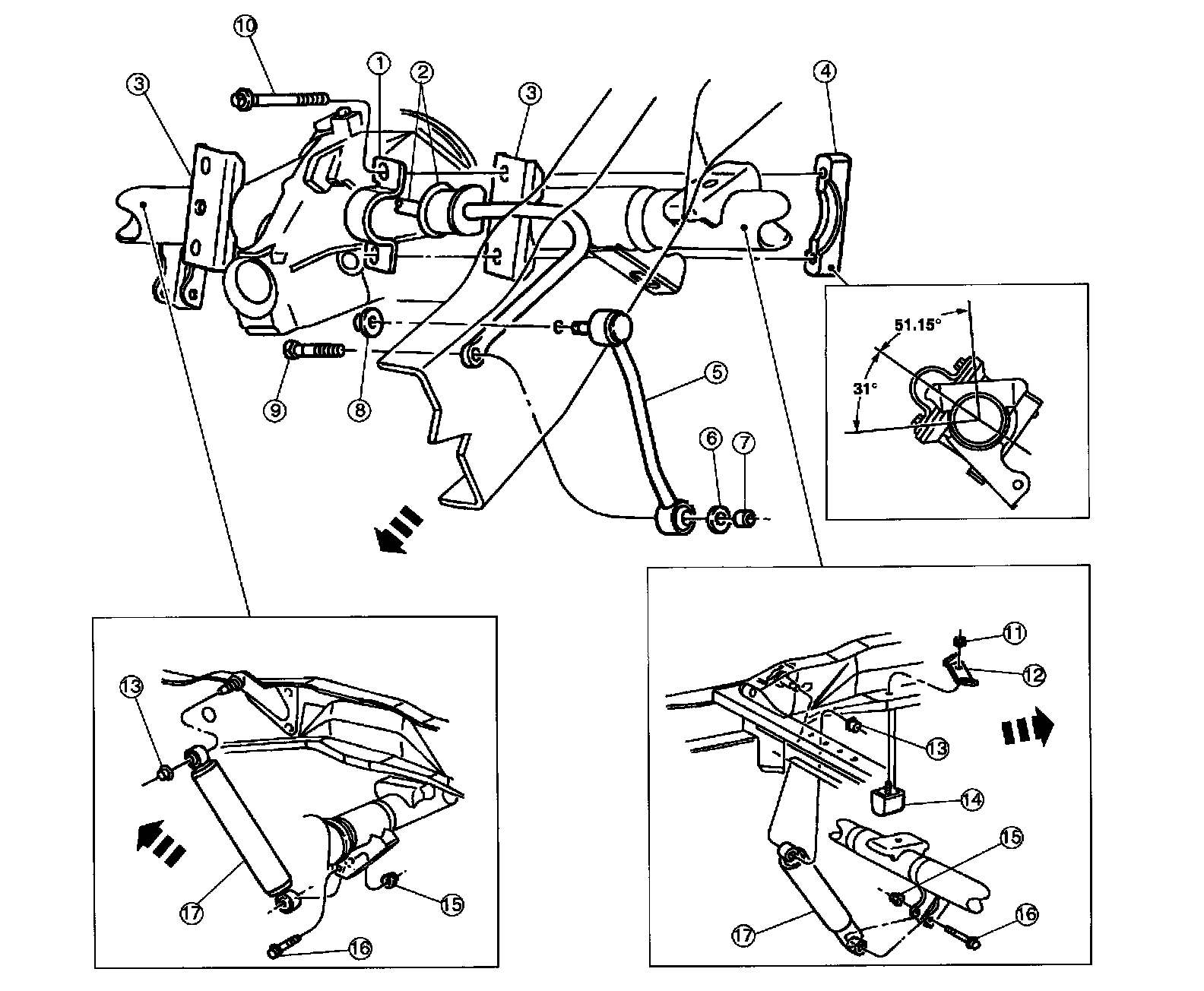

Diagram 3 Of 4:

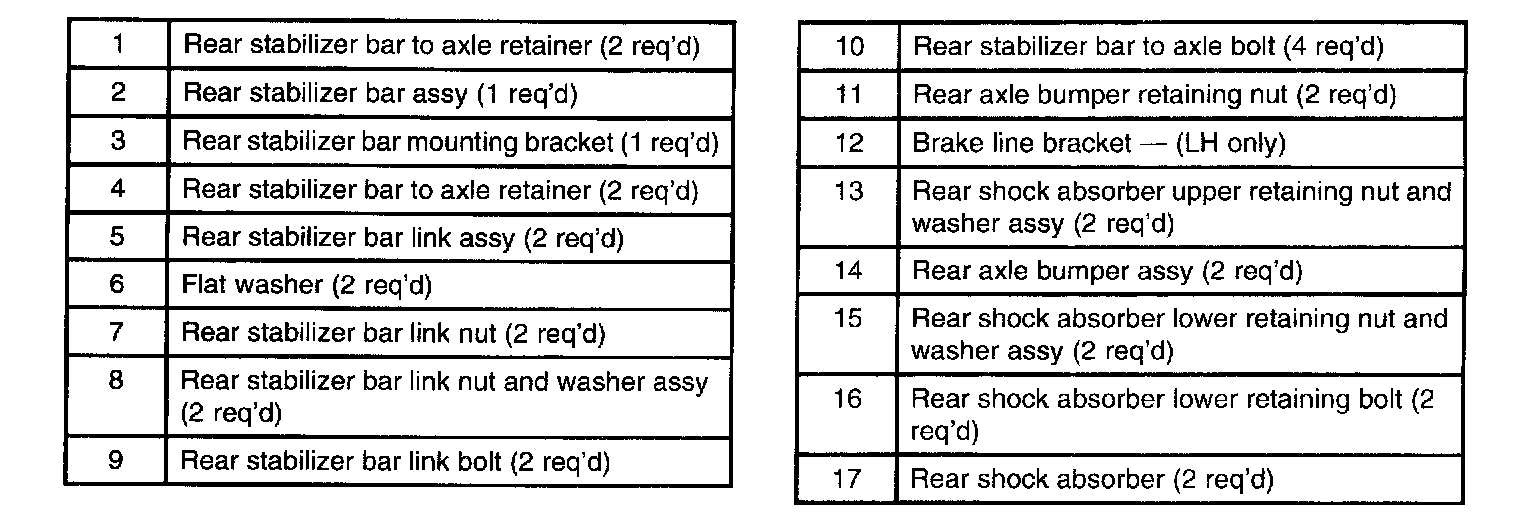

Diagram 4 Of 4:
