Heating and Air Conditioning: Locations

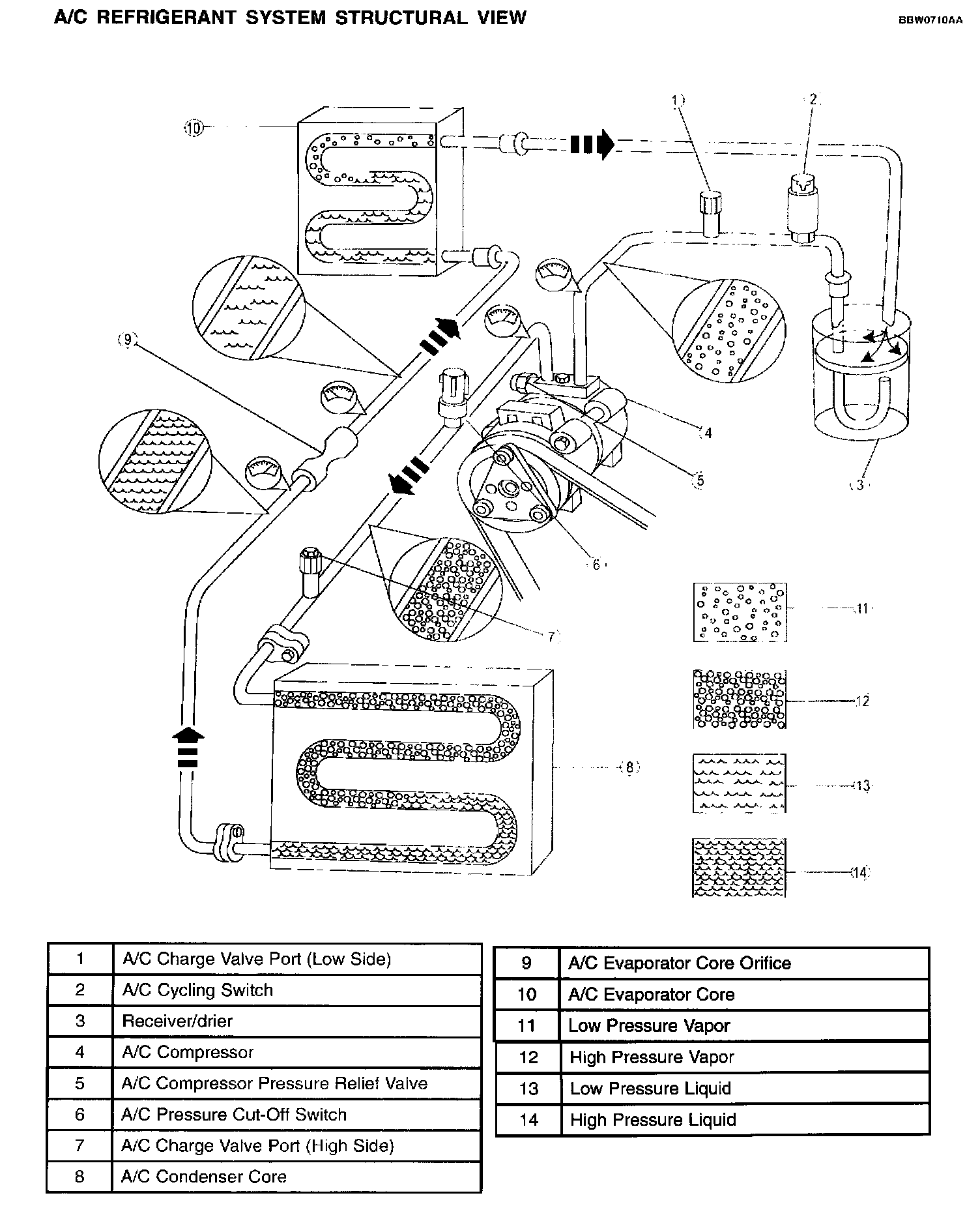

A/C Refrigerant System Structural View:

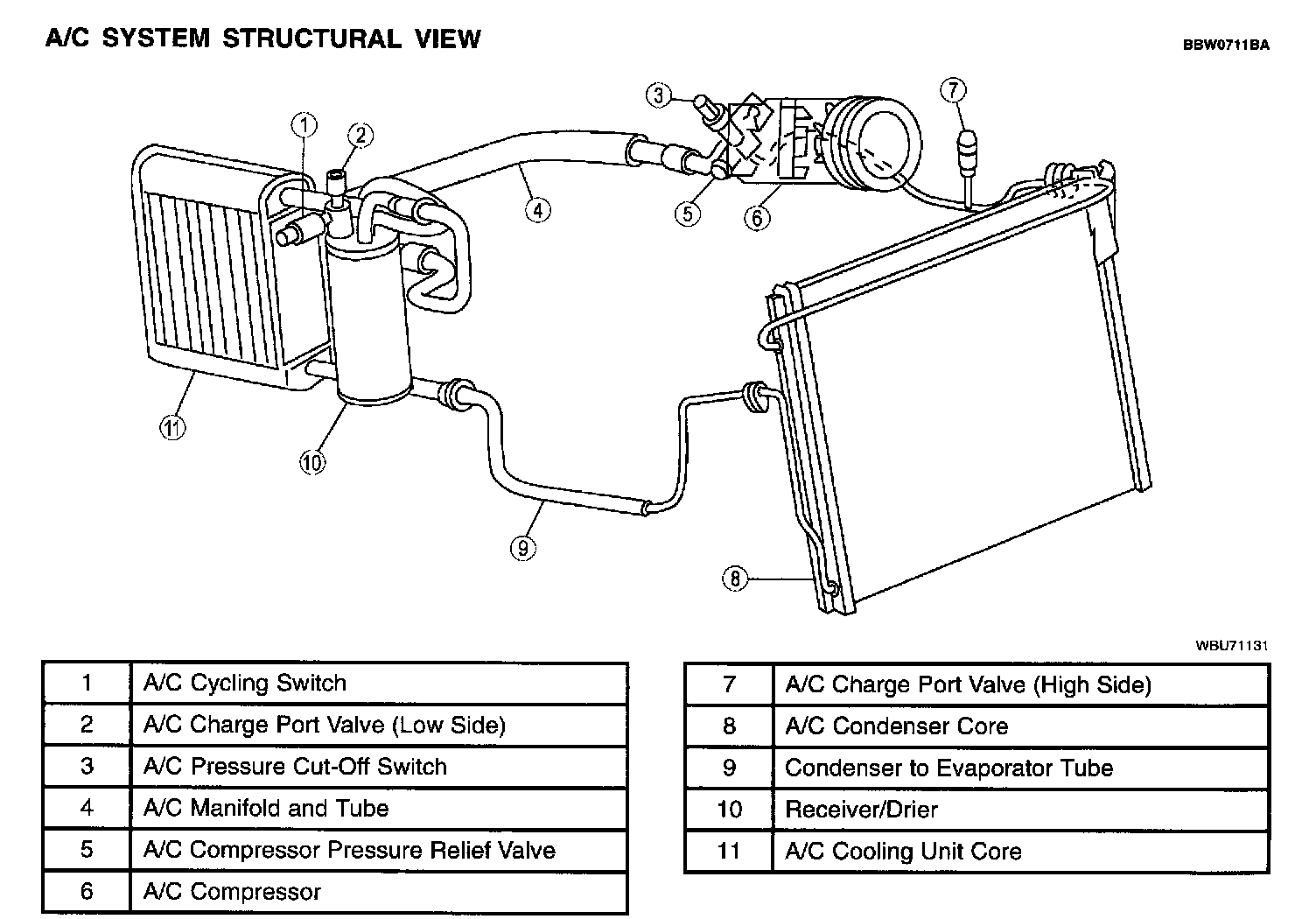

A/C System Structural View:
