Dimmer Switch: Service and Repair

DIMMER SWITCH REMOVAL/INSTALLATION

1. Remove the instrument cluster finish panel.

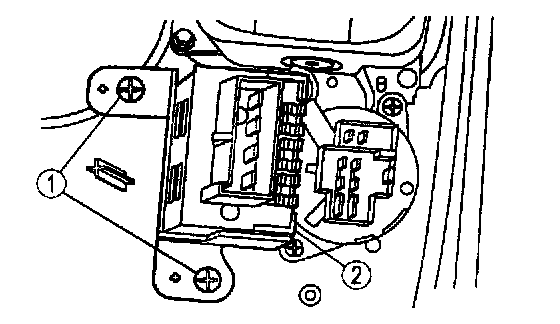

2. Remove in the order shown in figure.
1. Screws (1)
2. Dimmer switch (2)

3. Install in reverse order of removal.

Tightening torque
2 - 3 N.m {20 - 31 kgf.cm, 18 - 26 in.lbf}
